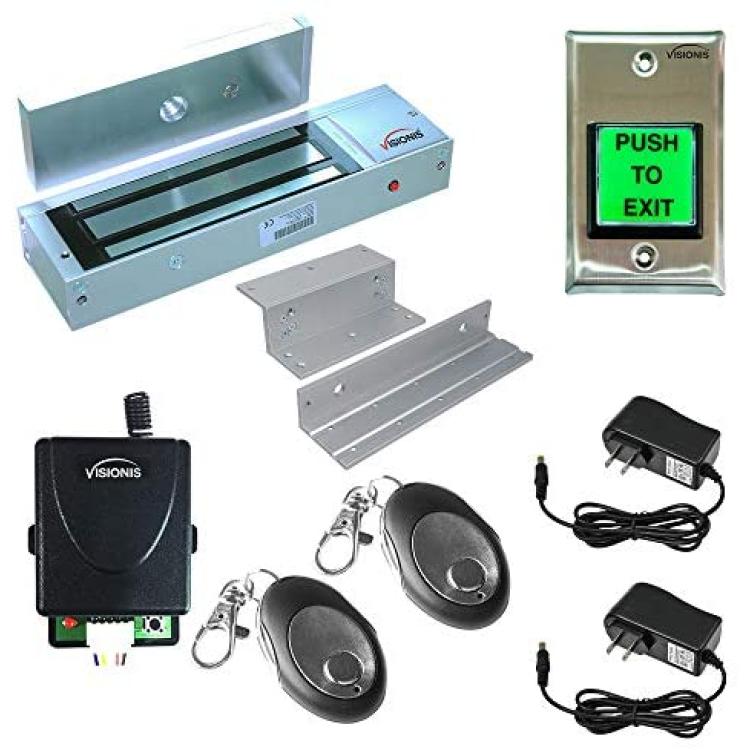

Visionis FPC-5019 One Door Access Control Inswinging Door 1200lbs Electromagnetic Lock Kit with Wireless Receiver and Remote Magnetic Lock System

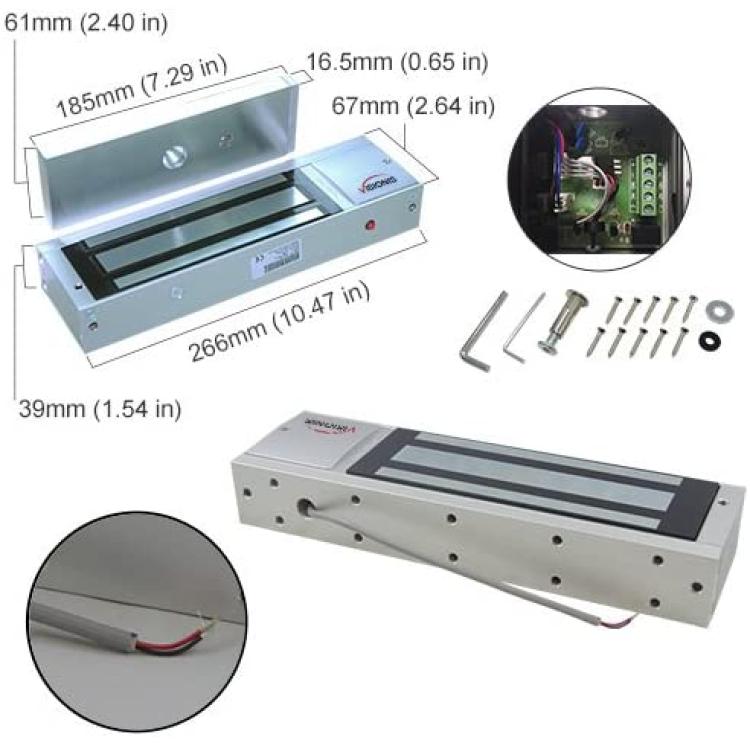

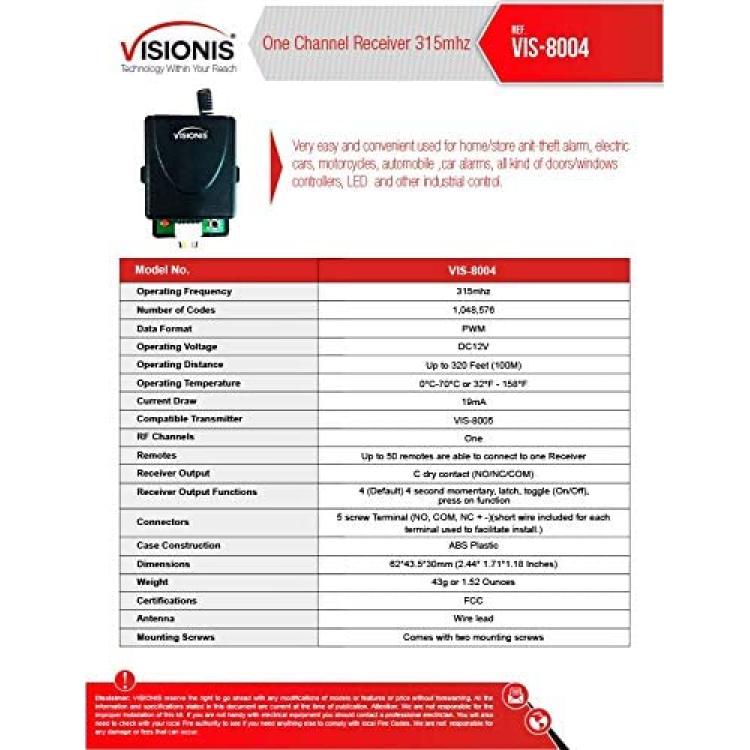

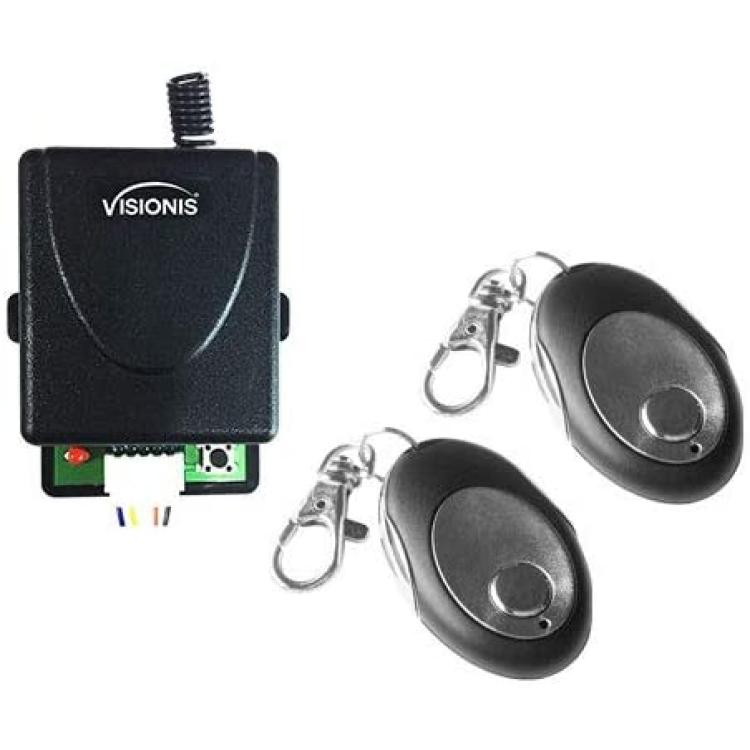

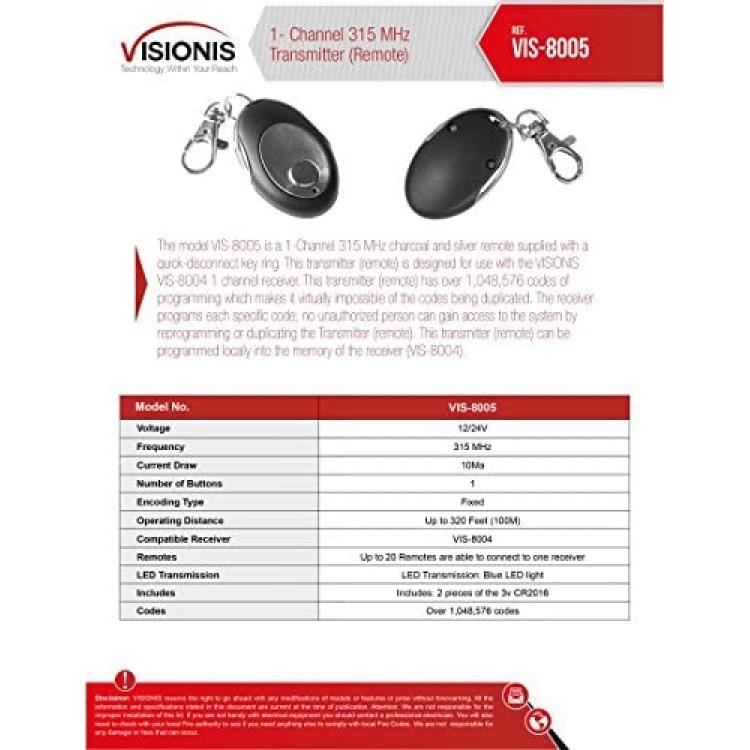

Voltage Input: 12 VDC / 24 VDCCurrent Draw: 12V / 500mA ; 24V / 250mA (±5%)Holding Force: Up to 1200 lbs (545 kg)Hall Effect Contact: SPDT rated 2A at 24 VDCMagnetic Contact Rating: 28 VDC, 0.2A, 5WAnti-Rust Surface Treatment: Blue Zinc PlatingOperating Temperature: 0~55° C (32~131° F)Weight (Magnet): 2.5 kg (±1%)Dimensions: Magnet – (L)266x(W)67x(T)39 mm Armature – (L)185x(W)61x(T)16.5 mmGreen/Red LED Indication for EM Lock StatusOperating Frequency: 315mhzNumber of Codes: 1,048,576Data Format: PWMOperating Voltage: +12V 24VOperating Distance: Up to 160 Feet (50M)Operating Temperature: 0-70°C or 32 – 158°FCurrent Draw: 19mASensitivity: -100DBCompatible Transmitter: VIS-8005RF channels: OneNo. of Remotes that are able to connect to one Receiver: Up to 20Receiver Output: C dry contact (NO/NC/COM)Receiver Output Functions: 5 (Default) 4 second momentary, 1-sec momentary, toggle, validity, latchConnectors: 5 screw Terminal (NO, COM, NC + -)Case Construction: ABS PlasticDimensions: 63mm*45mm*30mm (2.4 Inches* 1.77 Inches*1.18 inches)Weight: 43g or 1.52 OuncesAntenna: Wire leadMounting Screws: Comes with two mounting screwsVoltage: 12/24VFrequency: 315 MHzCurrent Draw: 10MaNumber of Buttons: 1Encoding Type: FixedOperating Distance: Up to 160 Feet (50M)Compatible Receiver: VIS-8004No. of Remotes that are able to connect to one receiver: Up to 20LED Transmission: Blue LED lightIncludes: 2 pieces of the 3v CR2016Over 1,048,576 codesStainless-steel face-plate“PUSH TO EXIT” & “PRESIONE PARA SALIR” inserts includedFits into standard single-gang box,Large square green color push button.12-inch, AWG 18 wire leadsDegree of Protection: IP-40LED: YesLED Life: 20.000hoursSwitch Material: PlasticSwitch Plate Material: Stainless Steel
