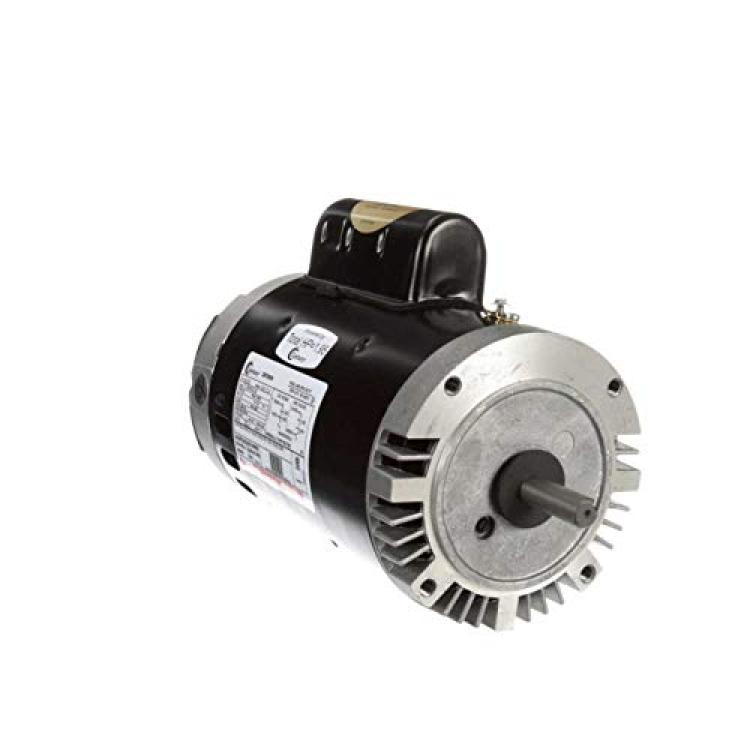

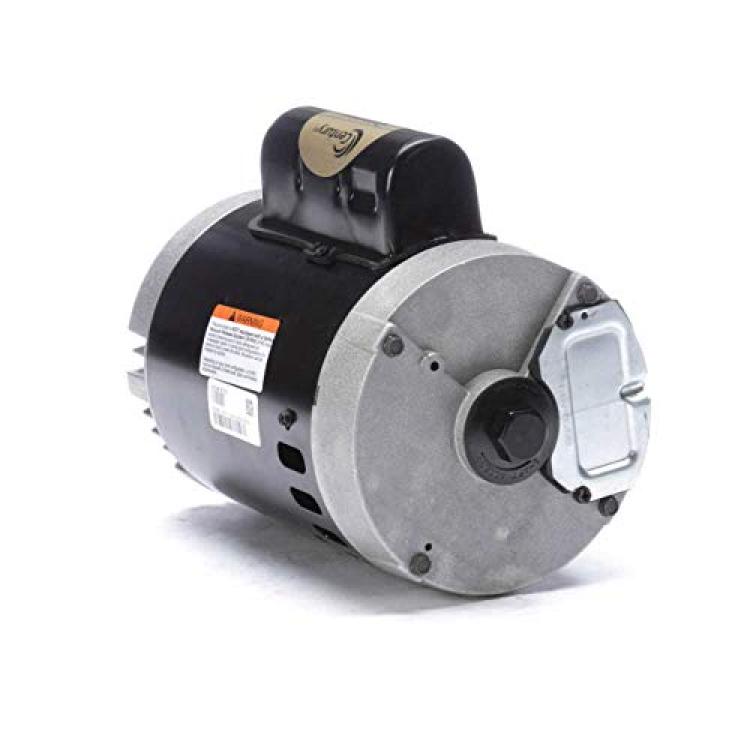

Pool Motor, 1-1/2 HP, 3450 RPM, 115/230VAC
Availability: Pre-Order, Inquiry Price
About this product
*Price For: Each Motor Design: Permanent Split Capacitor Motor Flange Material: Aluminum HP: 1-1/2 Motor Sub Application: Pool and Spa Pump Nameplate RPM: 3450 Frame: 56c Voltage: 115/230 Shaft Length: 2-1/16" Phase: 1 Shaft Dia.: 5/8" Motor Shaft Rotation: CCWSE Motor Thermal Protection: Auto Motor Enclosure Design: Open Dripproof
*Motor Efficiency Group: Standard Efficient Shaft Material: AISI 1215 Steel Motor Service Factor: 1.30 Shaft: Keyed Finish: Black Ins. Class: B RPM Range: 3001-3600 Item: Pool and Spa Pump Motor Full Load Amps: 18.4/9.2 Motor Mounting Type: Face Ambient Temperature: 50 Degrees C Standards: UL Recognized (E44549/E25022), CSA Certified (LR43341/LR94643), UL 1081 Approvable
*Voltage Compatibility: 115, 120, 230, 240, 115/230, 120/240 Motor Bearings: Ball Hz: 60 Motor Application: Pump Country of Origin (subject to change): China
*Price For: Each Motor Design: Permanent Split Capacitor Motor Flange Material: Aluminum HP: 1-1/2 Motor Sub Application: Pool and Spa Pump Nameplate RPM: 3450 Frame: 56c Voltage: 115/230 Shaft Length: 2-1/16" Phase: 1 Shaft Dia.: 5/8" Motor Shaft Rotation: CCWSE Motor Thermal Protection: Auto Motor Enclosure Design: Open Dripproof
*Motor Efficiency Group: Standard Efficient Shaft Material: AISI 1215 Steel Motor Service Factor: 1.30 Shaft: Keyed Finish: Black Ins. Class: B RPM Range: 3001-3600 Item: Pool and Spa Pump Motor Full Load Amps: 18.4/9.2 Motor Mounting Type: Face Ambient Temperature: 50 Degrees C Standards: UL Recognized (E44549/E25022), CSA Certified (LR43341/LR94643), UL 1081 Approvable
Description
'Pool and Spa Pump Motor, Permanent Split Capacitor, Open Dripproof, 1-1/2 HP, 3450 Nameplate RPM, 56C Frame, CCWSE Motor Shaft Rotation, Voltage 115/230, 18.4/9.2 Full Load Amps, 1 Phase, 60 Hz, Face Motor Mounting Type, Ball Motor Bearings, Black, Motor Flange Material Aluminum, Shaft Keyed, Shaft Material AISI 1215 Steel, Motor Thermal Protection Auto, 1.30 Motor Service Factor, Ambient Temperature 50 Degrees C, Shaft Dia. 5/8 In., Shaft Length 2-1/16 In., Ins. Class B'
