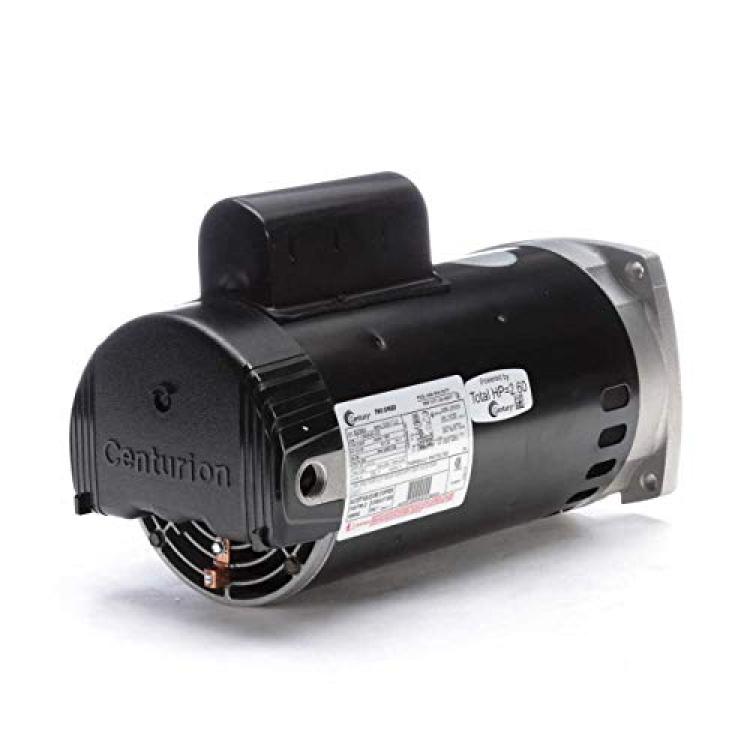

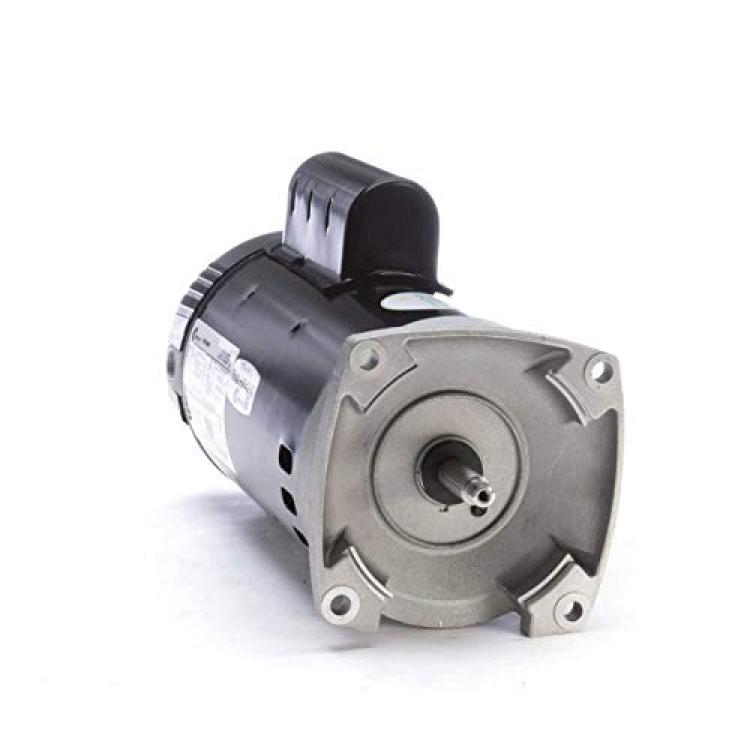

Pump Motor, 2, 1/4 HP, 3450/1725,230 V, 56Y
Product Code: HSM21142
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
Description
'Square Flange Pool Pump Motor, Capacitor-Start/Run Motor Design, Open Dripproof Motor Enclosure Design, 2, 1/4 HP, Nameplate RPM 3450/1725, 56Y Frame, Voltage 230, 60 Hz, 1 Phase, Full Load Amps 11.0/1.8, Face Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class F, Motor Service Factor 1.30, Ball Motor Bearings, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CCWSE, Shaft Threaded 1/2-20 UNF-2A RH, Shaft Material 303 Stainless Steel, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.'
