Motor, PSC, 1/3 HP, 1075, 208-230V, 48Y, OAO
Availability: In Stock
About this product
*Price For: Each Motor Service Factor: 1.00 Motor Shaft Rotation: CW/CCW Motor Bearings: Sleeve Standards: UL Recognized, CSA Certified Phase: 1 Motor Sub Application: Direct Dr Fan/Blower Application: Blowers, Fans and Air Circulators Motor Application: HVAC/R Motor Enclosure Design: Open Air-Over Item: Direct Drive Blower Motor HP: 1/3 Motor Thermal Protection: Auto
*Motor Design: Permanent Split Capacitor Shaft Dia.: 1/2" Duty: Continuous Max. Ambient Temp.: 40 Degrees C Ring to Ring Center: 4-15/16" Length Less Shaft: 5-3/8" Stud Size: #8-32 x 5/8" Body Dia.: 5-5/8" Frame: 48Y Voltage: 208-230 Voltage Compatibility: 115/208-230, 208-230, 208-240 Shaft Length: 4" Ins. Class: B Hz: 60 Capacitor Required: 2MDV4 Motor Mounting Position: All Angle
*Nameplate RPM: 1075 Mounting Stud Pattern: 3-5/8" x 3-5/8" Motor Mounting Type: Stud Full Load Amps: 2.6 No. of Speeds: 3 Resilient Ring Dia.: 2-1/4" Country of Origin (subject to change): Mexico
*Price For: Each Motor Service Factor: 1.00 Motor Shaft Rotation: CW/CCW Motor Bearings: Sleeve Standards: UL Recognized, CSA Certified Phase: 1 Motor Sub Application: Direct Dr Fan/Blower Application: Blowers, Fans and Air Circulators Motor Application: HVAC/R Motor Enclosure Design: Open Air-Over Item: Direct Drive Blower Motor HP: 1/3 Motor Thermal Protection: Auto
*Motor Design: Permanent Split Capacitor Shaft Dia.: 1/2" Duty: Continuous Max. Ambient Temp.: 40 Degrees C Ring to Ring Center: 4-15/16" Length Less Shaft: 5-3/8" Stud Size: #8-32 x 5/8" Body Dia.: 5-5/8" Frame: 48Y Voltage: 208-230 Voltage Compatibility: 115/208-230, 208-230, 208-240 Shaft Length: 4" Ins. Class: B Hz: 60 Capacitor Required: 2MDV4 Motor Mounting Position: All Angle
Description

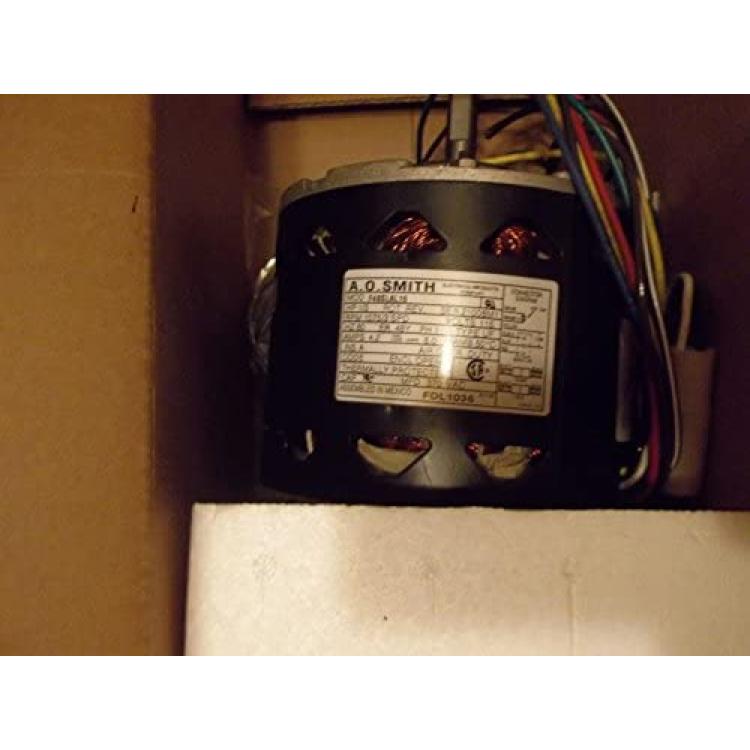

' Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/3 HP, 1075 Nameplate RPM, Voltage 208-230, 2.6 Full Load Amps, 60 Hz, 1 Phase, 48Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 3, Mounting Stud, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8 In., Length Less Shaft 5-3/8 In., Shaft Dia. 1/2 In., Shaft Length 4 In. '
