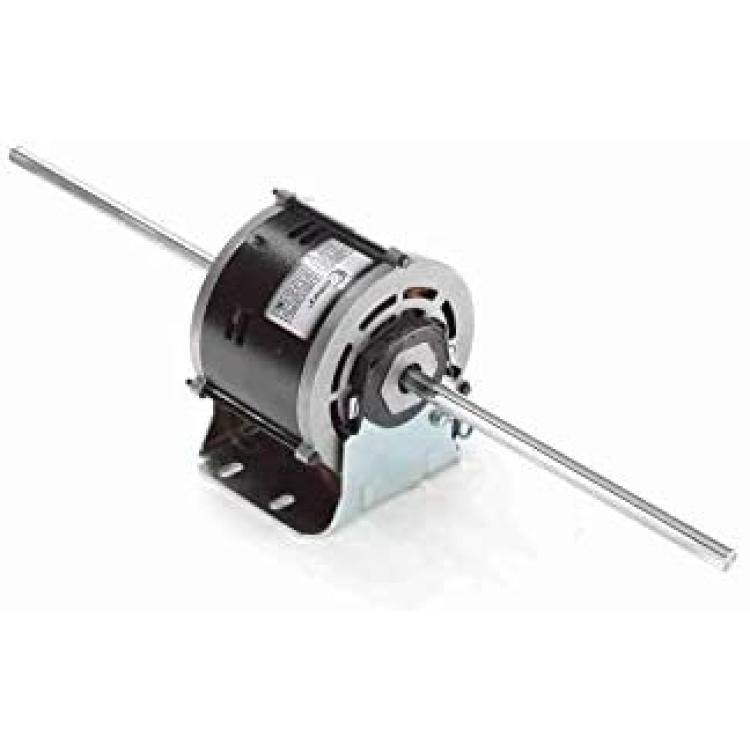

Brushless DC Motor, ECM, 1/10 HP, 1100 rpm

About this product

*Price For: Each Plug Type: 5-Wire, Standard Voltage: 115 Body Dia.: 5" Motor Shaft Design: Flat Motor Service Factor: 1.00 Motor Shaft Rotation: CWLE Frame: 42 Motor Bearings: Ball Includes: Mounting Bracket Standards: UL Recognized (E62815/E62788) Overall Length: 22-7/16" Frame Material: Steel Motor Enclosure Design: Open Air-Over Phase: 1 Ins. Class: B

*No. of Speeds: 3 Full Load Amps: 1.6 Motor Mounting Type: Cradle Base Shaft Length: 9-5/16" Capacitor Required: No Max. Ambient Temp.: 40 Degrees C Length Less Shaft: 3-13/16" Motor Sub Application: Room Air Conditioner Application: HVAC Systems Bolt Circle Dia.: 2-1/2" Motor Application: HVAC/R Ambient Temperature: -40 to 40 Degrees C Item: ECM Direct Drive Blower Motor

*Motor Mounting Position: All Angle Nameplate RPM: 1100 HP: 1/10 Motor Thermal Protection: Auto Motor Design: ECM Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 Shaft Dia.: 1/2" Duty: Continuous Country of Origin (subject to change): United States
