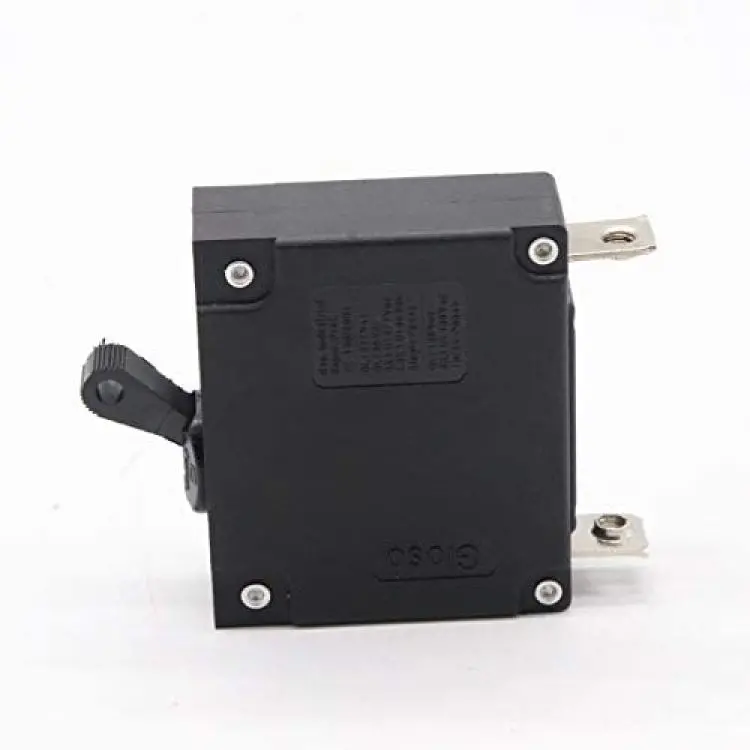

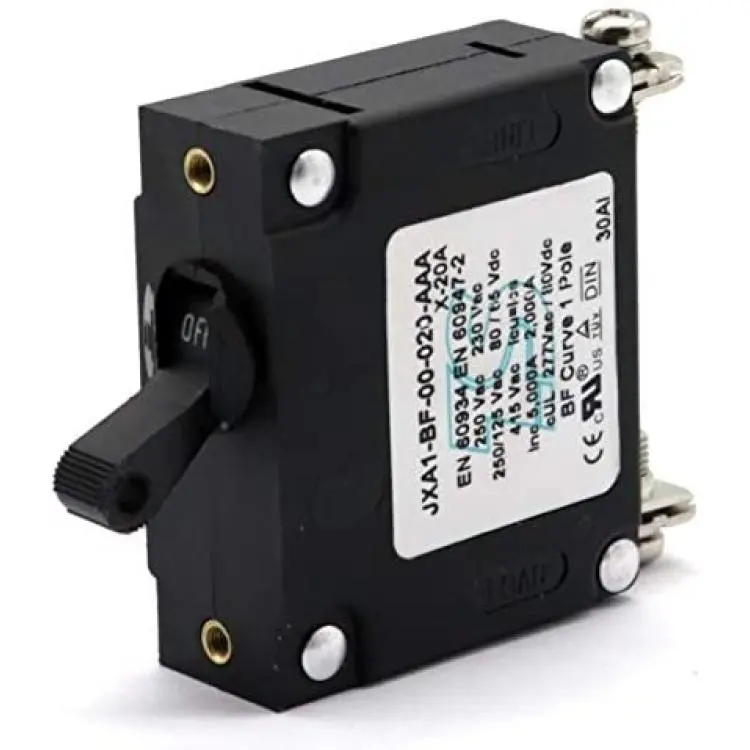

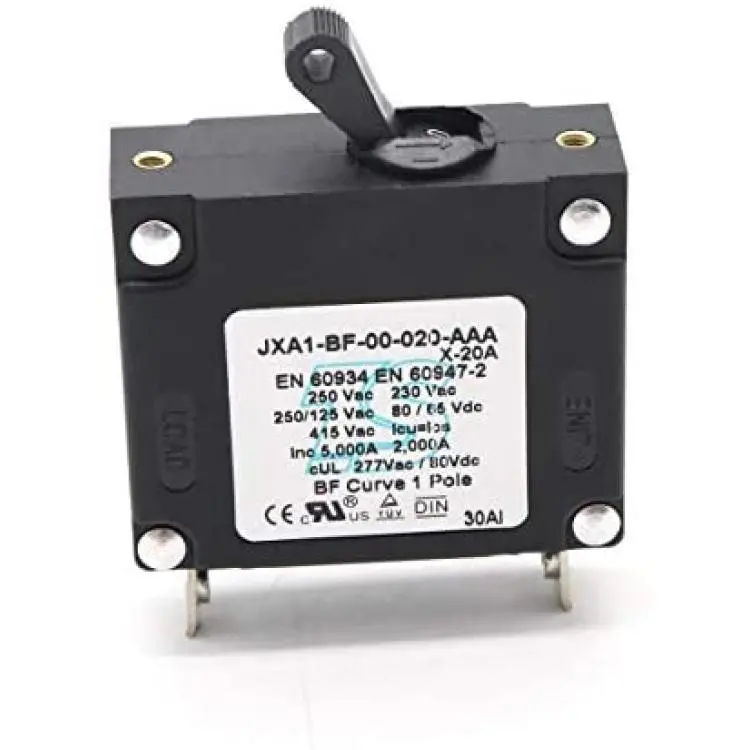

T Tocas 20A Toggle Single Pole Circuit Breakers Hydraulic Magnetic Circuit Protector AC or DC 80 V
About this product

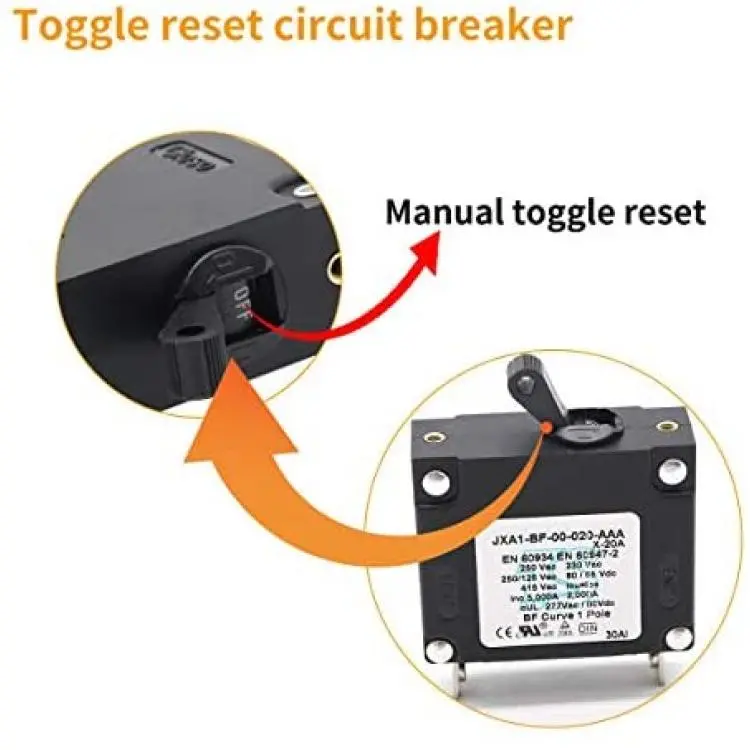

*One pole circuit breaker,electric magnetic circuit breaker with Black manual ON/OFF toggle reset,fit in AC and DC systems
*Scope of use: suitable for breaker panel, marine use, Boat/RV use, car use, bilge area applications and the other field
*Voltage:125/250/277/415/480Vac; 65/80 Vdc;Rated Current:20A
*Function: Combine switch and circuit protection in one device,Provides overload and short-circuit protection for electrical system
*Regulatory Sepcification cUL1077; EN60934; EN60947; DIN; CE
Description
Family:Hydraulic Magnetic Circuit Breaker
Voltage:125/250/277/415/480Vac; 65/80 Vdc
Rated Current: 20A

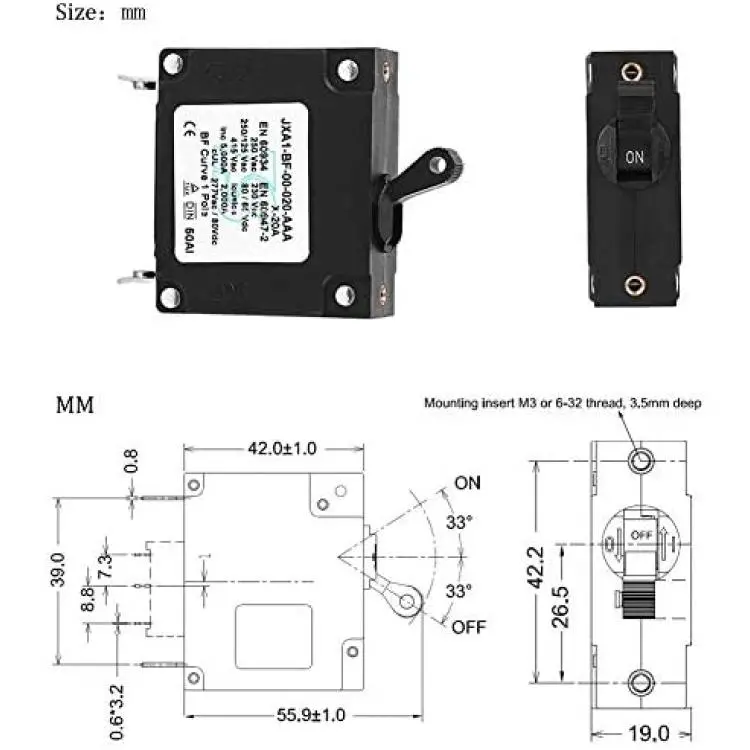

Mounting:Rear Mounted,
Operating Temperature:-40oC (-40oF) to 85oC (185oF)
Interrupt Capacity:
5,000A (PC1)
3,000A @ 250 Vac (SC)
1,000A @ 415 Vac (SC)
2,000A @ 80 Vdc (SC)
RoHS:Y
Regulatory Sepcification:cUL1077; EN60934; EN60947; DIN; CE
Technical Specification
Temperature : -40 C to +85 C
Shock : 50G, 11ms or 100G, 6ms
Vibration : 10 to 500 Hz. 10G(1.6 mm to 50 Hz)
Life : 10,000 Switching opearation with 6,000 at rate current
Approximate weight: 1P-85g
Dielectric Streight: 2,500 Vac 50 / 60 Hz
Rated Current: 1-100A according requirement

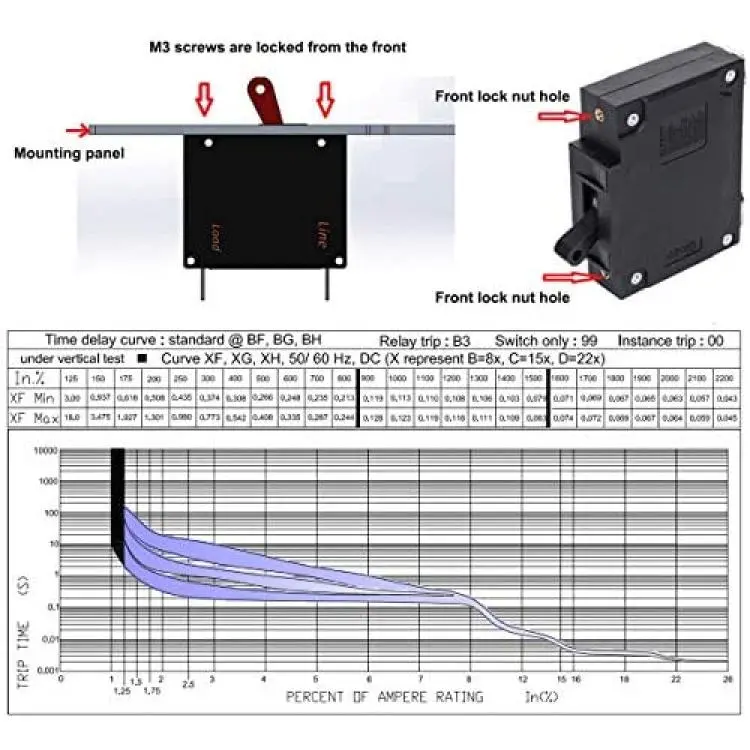

Torgue Allowed for inserts screw : M3 / 6-32 (0.6'0.8 Nm)
Package:
1pcs Single Pole Hydraulic Magnetic Circuit Breakers
