Pressure Transducer Submersible Level Transducer,4-20MA Digital Water Level Display Meter Intelligent Pressure Controller Light Column Display,6m Cable Liquid Depth Level Meter Sensor
About this product
*♐【Note 1】-Confirm whether the output voltage of the power supply is correct, red line: positive power supply, green line: output.
*♐【Note 2】-The sensor of the probe is a precision device, please do not disassemble it by yourself, and do not touch the diaphragm.
*♐【Note 3】-The liquid level probe is put into the water, it is best to be fixed, and away from the water inlet; ensure that the maximum height of the liquid level is within the range of the product.
*♐【Note 4】-If additional wiring is required, waterproof measures must be taken (such as closing the junction box, etc.). If there is no or simpler, the wire can be bent down to prevent water ingress and malfunction.
*♐【100% SATISFACTION GUARANTEE】- We always strive to provide each customer with the high standard of customer service to ensure you have a pleasant shopping experience. If you have any questions or issues after receiving the items, dont worry, please feel free to contact us at any time,we will solve it ASAP
Description
All the products are shipped from US warehouse(CA or NJ)!
All the products are shipped from US warehouse(CA or NJ)!
All the products are shipped from US warehouse(CA or NJ)!
Specification:
-Measuring medium: water
-Insulation resistance: 100M?/100VDC
-Medium temperature: -40-65°C
-Sensitivity: 2.0MV/V
-Overload pressure: 150% FS
Precautions:

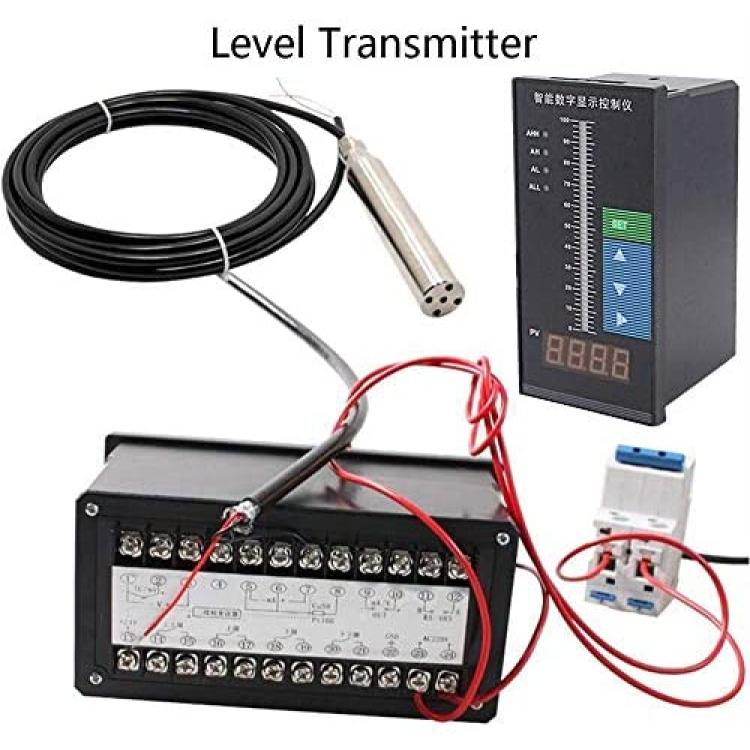

1. Confirm whether the output voltage of the power supply is correct, red line: positive power supply, green line: output.
2. The sensor of the probe is a precision device, please do not disassemble it by yourself, and do not touch the diaphragm.
3. The liquid level probe is put into the water, it is best to be fixed, and away from the water inlet; ensure that the maximum height of the liquid level is within the range of the product.
4. If additional wiring is required, waterproof measures must be taken (such as closing the junction box, etc.). If there is no or simpler, the wire can be bent down to prevent water ingress and malfunction.
Packing including?

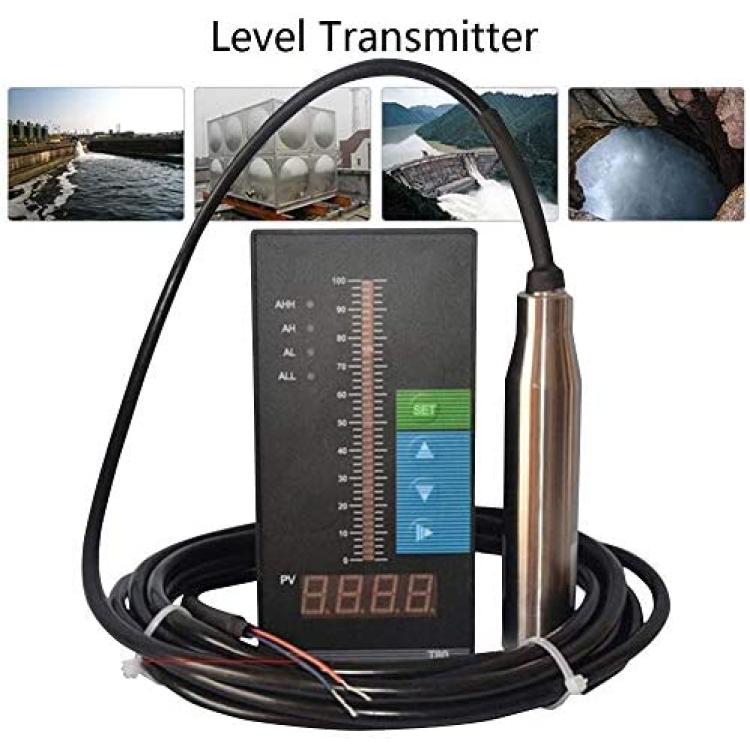

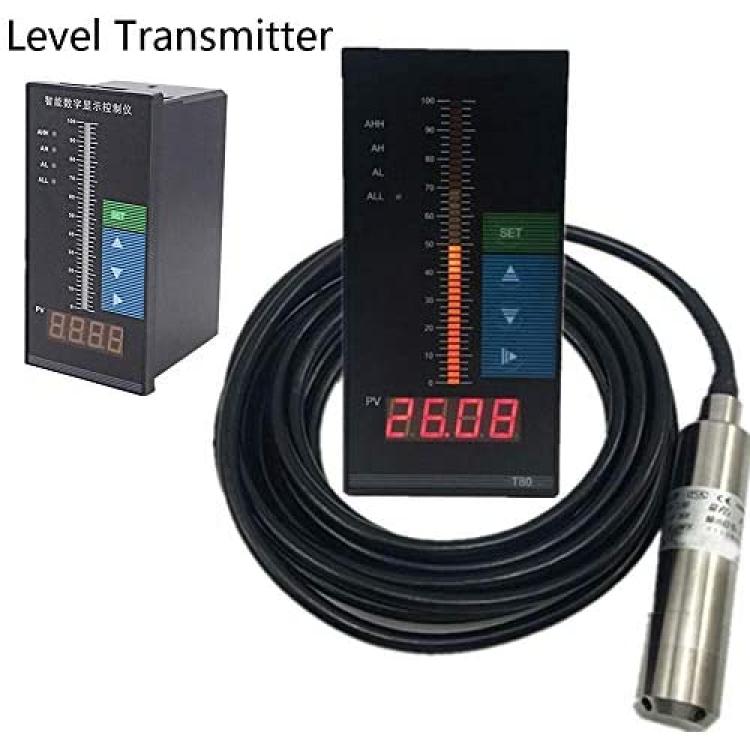

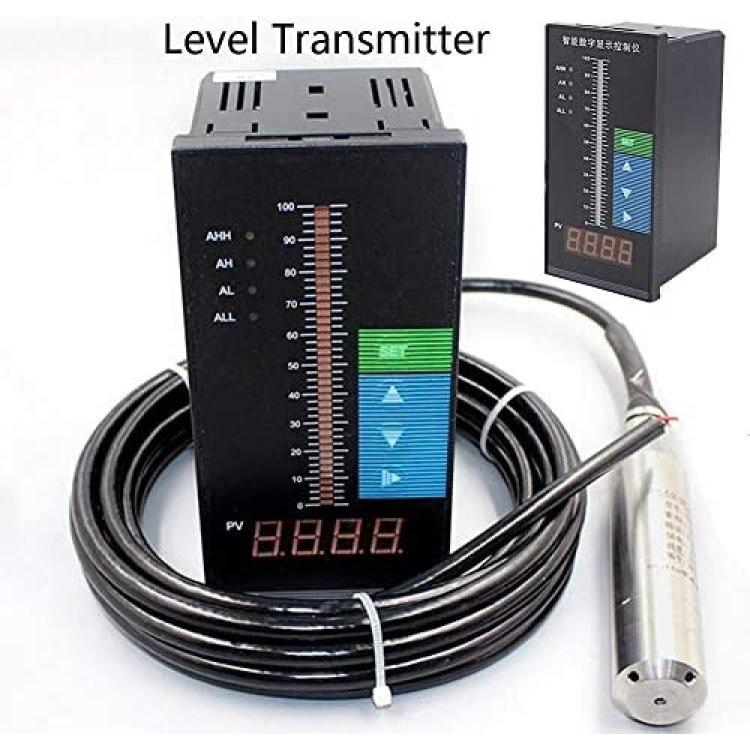

-1 *4-20 MA Level Transmitter( Level sensor) with cable

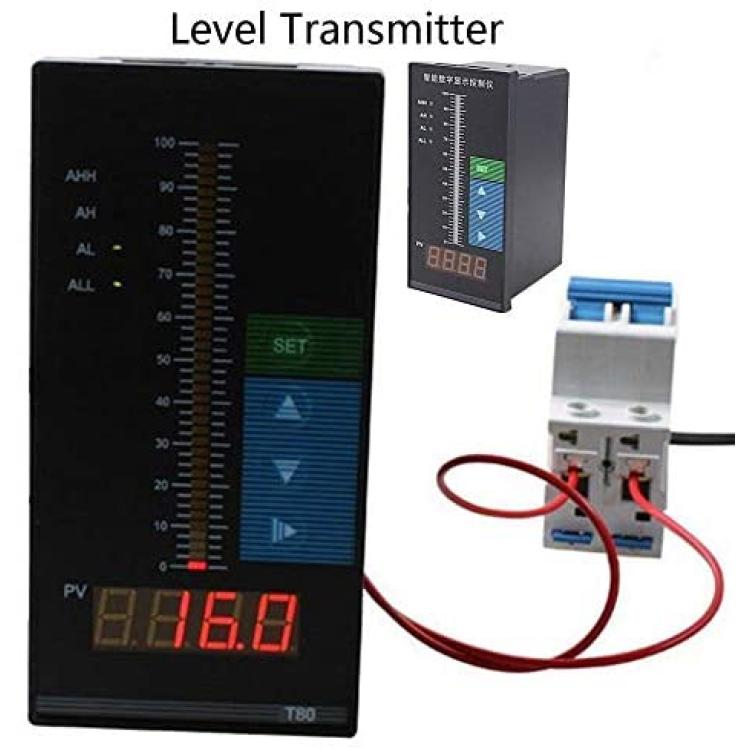

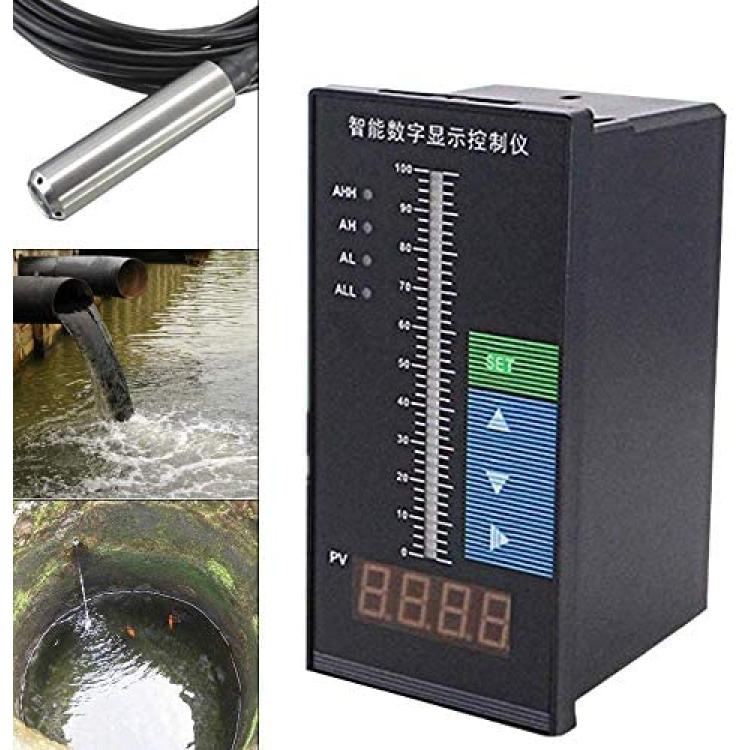

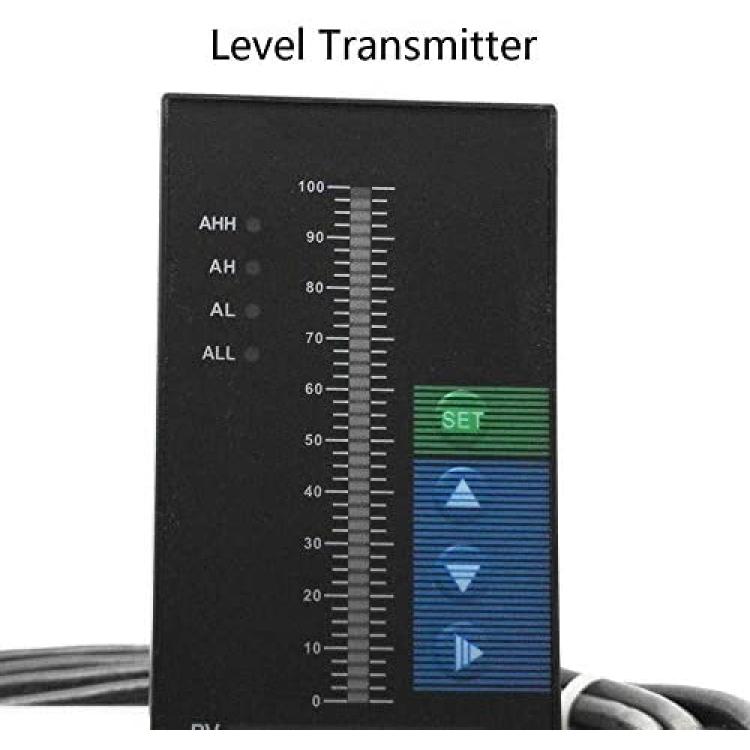

-1 *Digital Display Control Instrument
