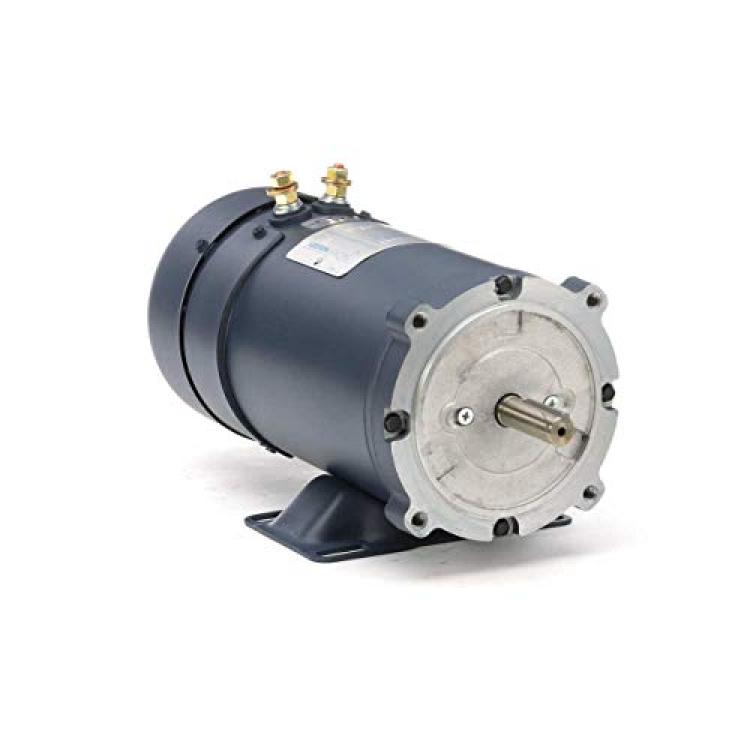

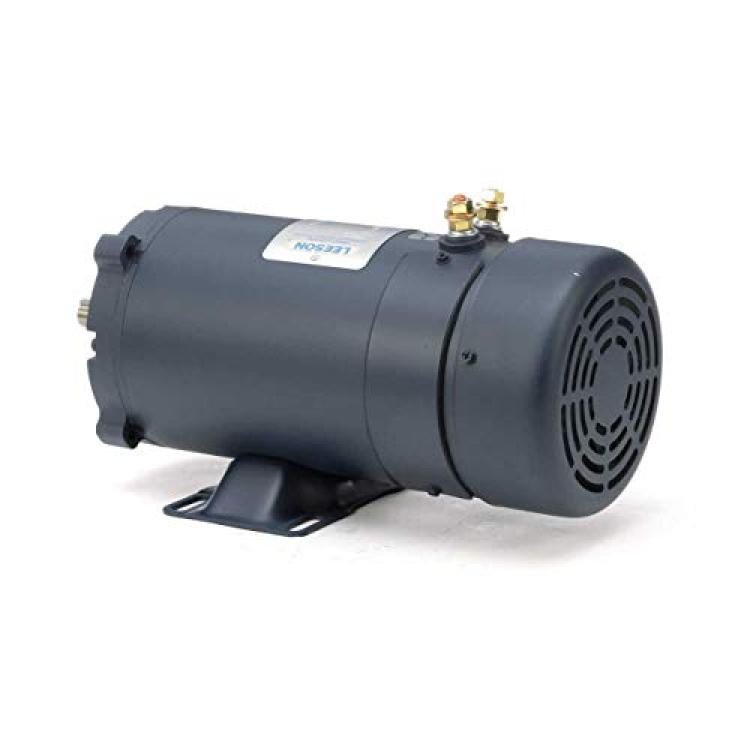

DC Permanent Magnet Motor, 80.0A, 12VDC
Availability: Pre-Order, Inquiry Price
About this product
*Price For: Each Rotation: CW/CCW Nameplate RPM: 1800 Full Load Torque: 35.0 in.-lb. Item: DC Permanent Magnet Motor Shaft Dia.: 5/8" RPM Range: 1701-1800 Motor Mounting Type: Face/Base HP: 1 Features: Removable Base, Rugged Die Cast Endshields with Steel Bearing Inserts Max. Ambient Temp.: 40 Degrees C Brush Type: Carbon Frame: 56c Motor Thermal Protection: None
*Overall Length: 13-13/16" Standards: UL (E49747), CSA (LR2025) RPM Group: 1701-1800 Motor Design: Permanent Magnet DC Bearings: Ball Length Less Shaft: 11-7/8" Full Load Amps: 80.0 Motor Enclosure Design: Totally Enclosed Fan-Cooled Shaft Length: 1-7/8" Voltage: 12VDC Voltage Compatibility: 12VDC Body Dia.: 5-39/64" Ins. Class: H Motor Application: General Application
*Country of Origin (subject to change): United States
*Price For: Each Rotation: CW/CCW Nameplate RPM: 1800 Full Load Torque: 35.0 in.-lb. Item: DC Permanent Magnet Motor Shaft Dia.: 5/8" RPM Range: 1701-1800 Motor Mounting Type: Face/Base HP: 1 Features: Removable Base, Rugged Die Cast Endshields with Steel Bearing Inserts Max. Ambient Temp.: 40 Degrees C Brush Type: Carbon Frame: 56c Motor Thermal Protection: None
*Overall Length: 13-13/16" Standards: UL (E49747), CSA (LR2025) RPM Group: 1701-1800 Motor Design: Permanent Magnet DC Bearings: Ball Length Less Shaft: 11-7/8" Full Load Amps: 80.0 Motor Enclosure Design: Totally Enclosed Fan-Cooled Shaft Length: 1-7/8" Voltage: 12VDC Voltage Compatibility: 12VDC Body Dia.: 5-39/64" Ins. Class: H Motor Application: General Application
Description
'DC Permanent Magnet Motor, Permanent Magnet DC, 1 HP, Motor Enclosure Design Totally Enclosed Fan-Cooled, 1800 Nameplate RPM, Voltage 12VDC, Full Load Amps 80.0, Full Load Torque 35.0 in.-lb., Frame 56C, Motor Mounting Type Face/Base, Motor Thermal Protection None, H Ins. Class, Bearings Ball, Max. Ambient Temp. 40 Degrees C, CWSE Rotation, Overall Length 13-13/16 In., 11-7/8 In. Length Less Shaft, Body Dia. 5-39/64 In., Shaft Dia. 5/8 In., Shaft Length 1-15/16 In., Brush Type Carbon'
