CHANCS TYC-50 10/12RPM CW/CCW Permanent Magnet Motor 110V AC Electric Synchron Motor
Availability: In Stock
About this product

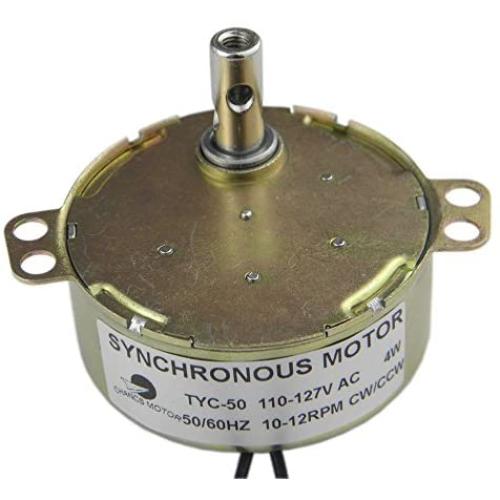

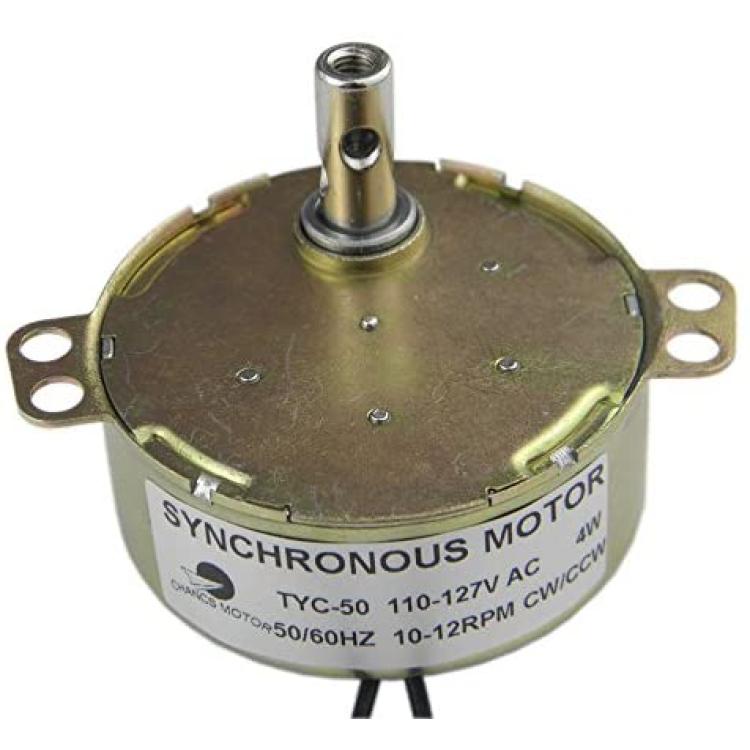

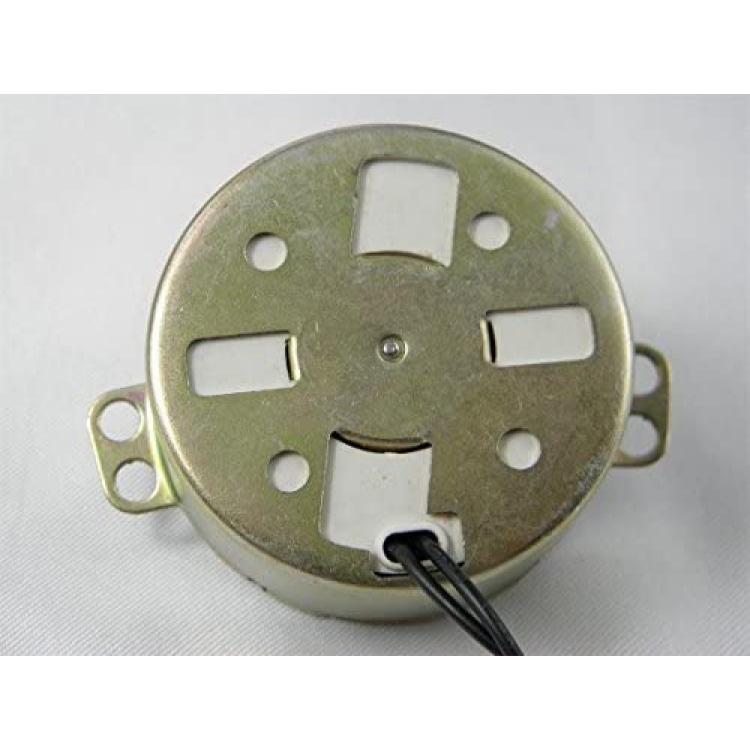

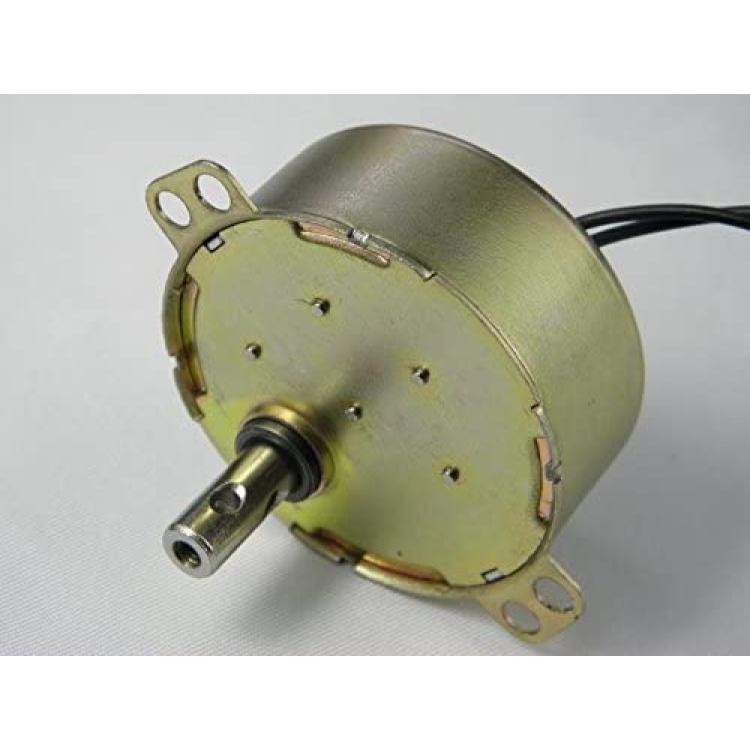

*This is a TYC-50 AC 110V 10-12RPM CW/CCW synchronous motor,small power consumption, low noise, small size, light weight, easy to use. The reduction gear is combination of metal/plastic to ensure the gear working continuously and quietly. We promise we will tested ever motor before shipment.
*【Specification:】 Product Name : Synchronous Motor； Model : TYC-50； Shaft Diameter: 7mm ； Shaft Length: 16mm； Direction : CW/CCW(UNCONTROLLABLE)； Voltage : AC 110V-130V； Speed : 10-12RPM/min； Power : 4W； Torque:≤2.4kg*cm； Frequency : 50/ 60Hz；
*【Application:】 Widely used in hand-made, school project, electric fan shake heads, heaters, Christmas tree, prayer cylinders, air conditioners, microwave ovens, glue machines, electric ovens, rotating lamps, electric tables, electric models, electric advertising, electric shelves, dishwashers, control appliances , curtain machines, etc.
*【Package Content:】1 x Synchronous Motor
*【Attention:】 1.The applicable voltage of this motor is AC 110V-130V, too high voltage will burn the motor. 2.The motor speed is not an accurate value, the speed will change with the frequency. For example, the speed is 0.8-1RPM, at 50 Hz, the speed is 0.8RPM; at 60 Hz, the speed is 1RPM.
Description
This is a TYC-50 AC 110V-130V 10-12RPM synchronous motor,small power consumption,
low noise, small size, light weight, easy to use. The reduction gear is combination of metal/plastic to ensure the gear working continuously and quietly.
We promise we will tested ever motor before shipment.
?Specification:?
Product Name : Synchronous Motor
Model : TYC-50
Shaft Diameter: 7mm
Shaft Length: 16mm
Direction : CW/CCW(UNCONTROLLABLE)
Voltage : AC 110V-130V
Speed : 10-12RPM/min
Power : 4W
Torque:?2.4kg*cm.
Frequency : 50/ 60Hz
?Application:?
Widely used in hand-made, school project, electric fan shake heads, heaters,
Christmas tree, prayer cylinders, air conditioners, microwave ovens, glue machines, electric ovens, rotating lamps,
electric tables, electric models, electric advertising, electric shelves, dishwashers, control appliances , curtain machines, etc.
?Package Content:?
1 x Synchronous Motor
?Attention:?
1.The applicable voltage of this motor is AC 110V-130V, too high voltage will burn the motor.
2.The motor speed is not an accurate value, the speed will change with the frequency. For example, the speed is 0.8-1RPM,
at 50 Hz, the speed is 0.8RPM; at 60 Hz, the speed is 1RPM.
