MIDNITE 125 DCA 125 VDC 1 POLE1 IN WIDE PANEL MOUNT 1/4 IN STUDS REMOTE TRIP CAPABLE CIRCUIT BREAKER- MNEDC125RT
Availability: In Stock
About this product
*Breaker Torque Value: 30 In-Lbs (3.4NM) | Environmental Rating - Type 1 (Indoor)
*AIC 10,000 at 125VDC | Warranty - 5 yrs. | Listed for US & Canada
*FL. AMP: 125 | Max Volts: 150 | Hertz: DC
*Delay: 14 | Trip Amps: 156
*Circuit: K0 | V.Coil: 24(19TRIP)VDC
Description

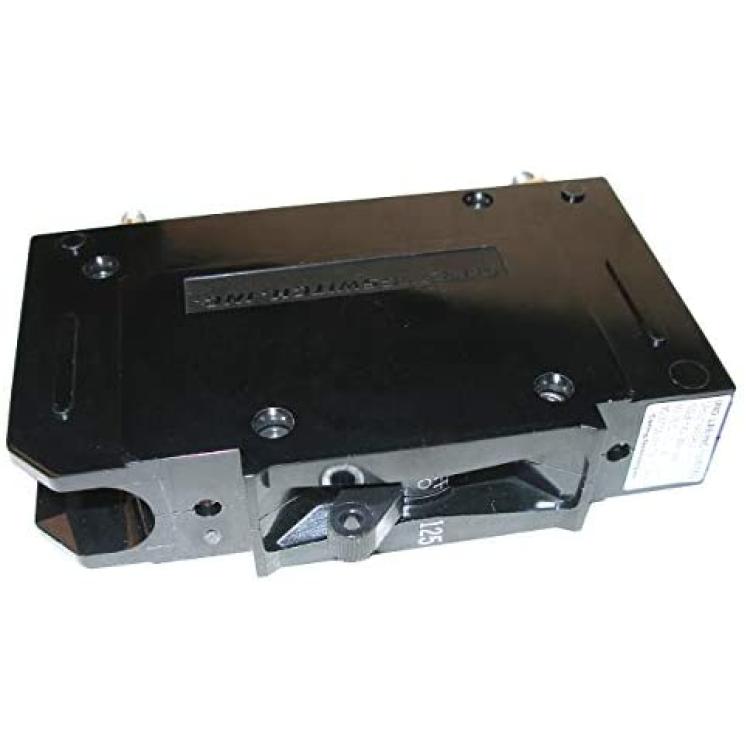

MidNite Solar MNEDC125RT Circuit Breaker 125 Amp 125VDC Panel Mount with Remote Trip (Shunt Trip Circuit Breaker).
MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting. This breaker has the Remote Trip feature that allows it to work with our Battery Disconnect Module ( MNBDM-24 or MNBDM-48 ) and the Rapid Shutdown System.
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.
IF USING THE BIRDHOUSE FOR JUST SHUTTING DOWN A BATTERY BASED SYSTEM BREAKER WITHOUT A COMBINER YOU MUST USE THE MNFX-CABLE FAUX CABLE.
