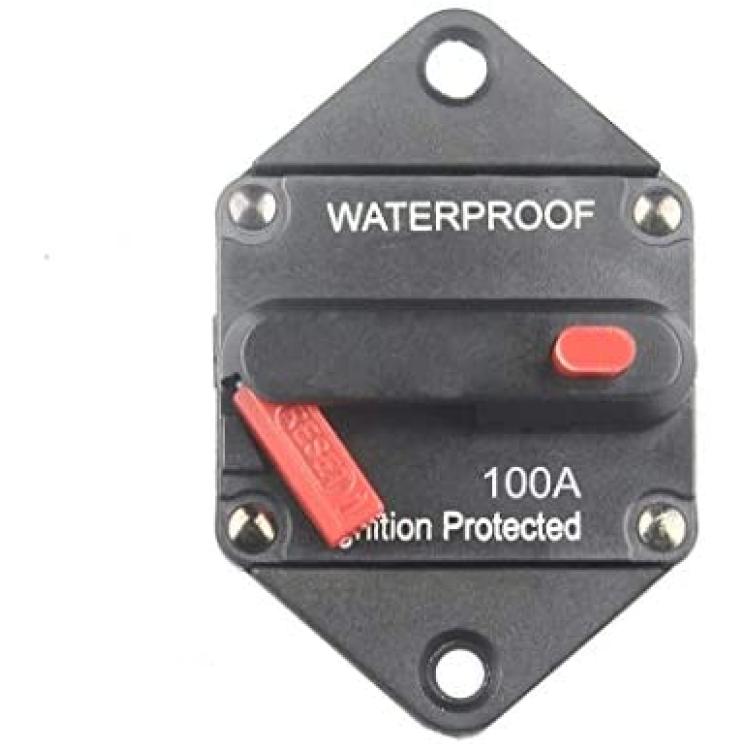

wohhom Hi-Amp 100Amp Circuit Breaker 12V-32V DC Waterproof, 20-300A Fuse Inverter with Manual Reset Button for Auto Truck RV Marine, Panel Mount (100A)
About this product
*Specification: 100amp, DC 12V - 36V, splash & dust proof, Stud Size: 1/4"-28. Meet S.A.E. J1625, J1171 (Ignition Protected).

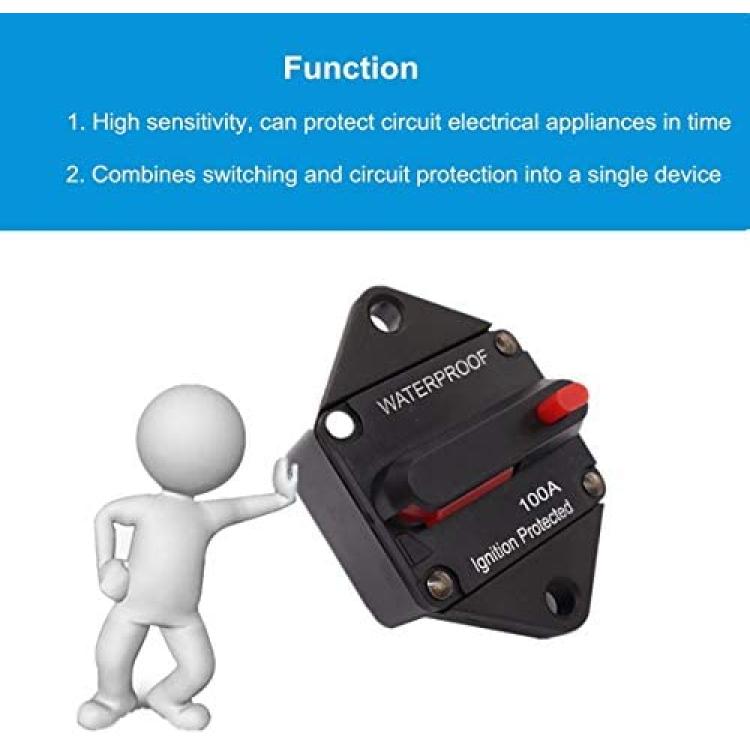

*Function: Prevent excessive current, protect the electrical appliance. Combines switching and circuit protection into a single device.
*Resettable: Type 3 Manual Reset (Switchable). No need to replace the fuses, the system can be reset by a simple switch which also offers safe and instant system shut down.

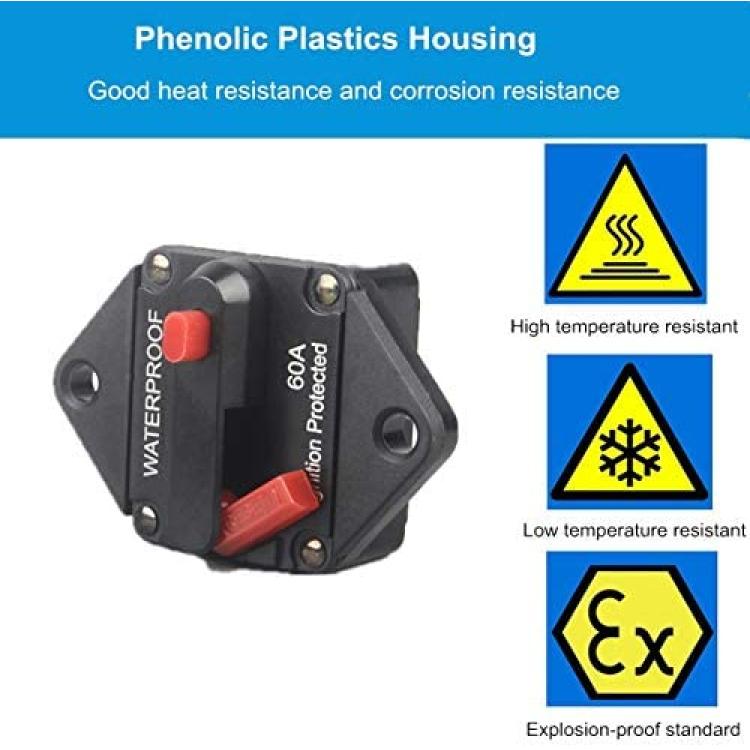

*Durable: Premium material, Water resistant housing has good heat resistance and corrosion resistance. Easy to install, Mount on panel or firewall.
*Application: Suitable for 12V-32V DC marine boat applications(as a main or branch circuit breaker), truck, bus, vehicle, RV systems, add-on protection for accessories
Description
WOHHOM 20-300A Waterproof Hi-Amp Circuit Breaker with Manual Reset Button(100 Amp)
Protect your electronic components from accidental overloads
What’s the type of this circuit breakers?
A: 1, Type 3 Manual Reset, Combines switching and circuit protection into a single device
2, 20A 40A 60A 80A 100A 150A 200A 250A 300A available, DC 12V - 36V.
What is the advantage?
A: 1, High sensitivity, can protect circuit electrical appliances in time

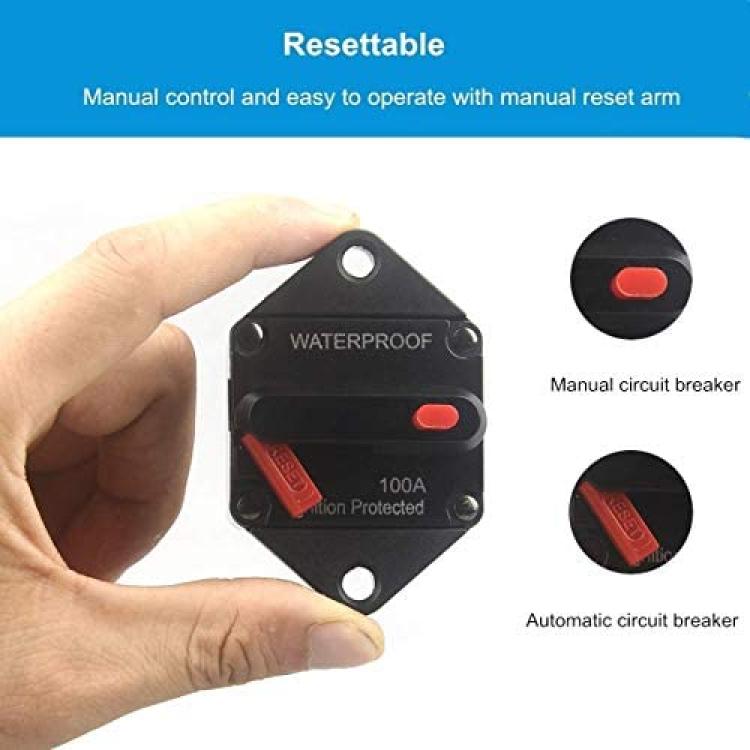

2, Manual control and easy to operate with manual reset arm
3, It can control high current circuit, more reliable

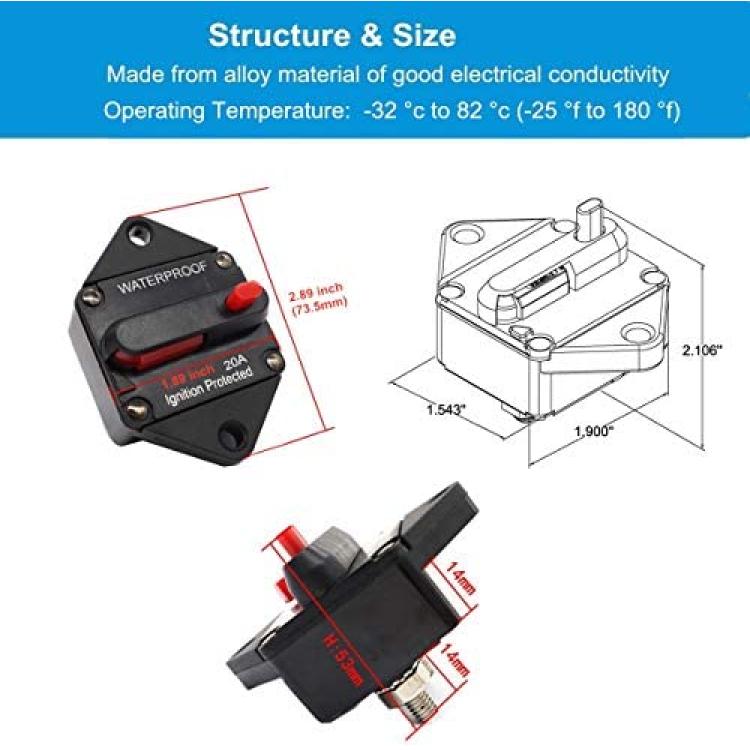

4, Made from alloy material of good electrical conductivity

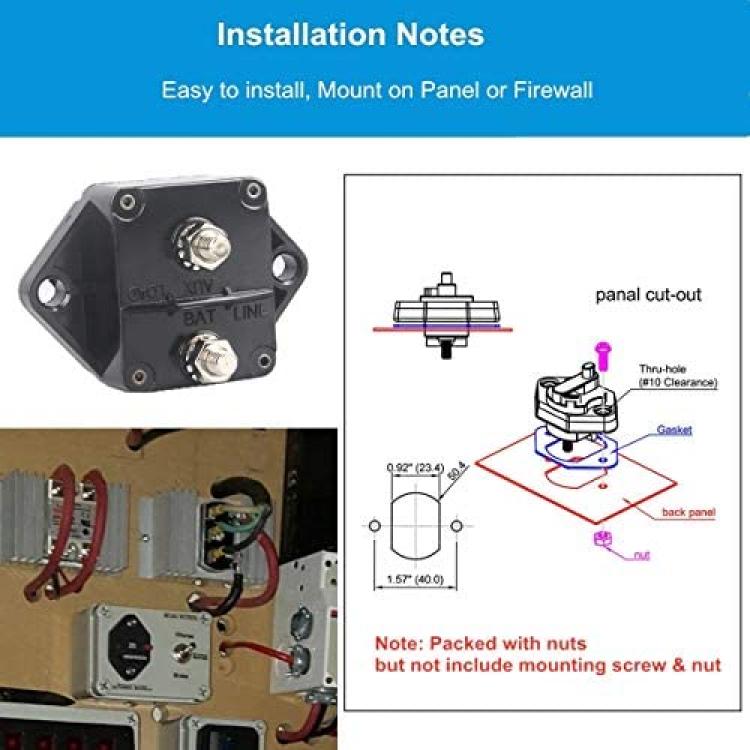

5, Easy to install, Mount on Panel or Firewall
6, High Tech water resistant housing, splash & dust proof.
Where can it be used?
A: Typically used in auxiliary and accessory circuits in truck, bus, RV and marine applications. Others include battery charger and DC audio system.
Specifications:
Ampere: 100A
Max Voltage: 48V DC
Reset Type: T3
Stud Size: 1/4"-28
Material: Metal and plastic
Mounting: Panel Mount
Interrupt Capacity: 3000A @ 30Vdc
Operating Temperature: -32°C to 82 °C(-25°F to 180 °F)
Wire Connection: BAT LINE SHI for input wire, AUX LOAD for output wire.
Package Includes:
1pcs x100A Circuit Breaker.
Note:
1. Please shut down power before your replacement
2. Please correctly push the button to avoid damage the Circuit Breaker
3. Please order and use the Circuit Breaker with right work temperature, to avoid it is too heat and stop work.
