SSC Controls F500 Foot Switch, Electrical, Single Pedal, Momentary, 20 Amp, Single Pedal, Made in USA

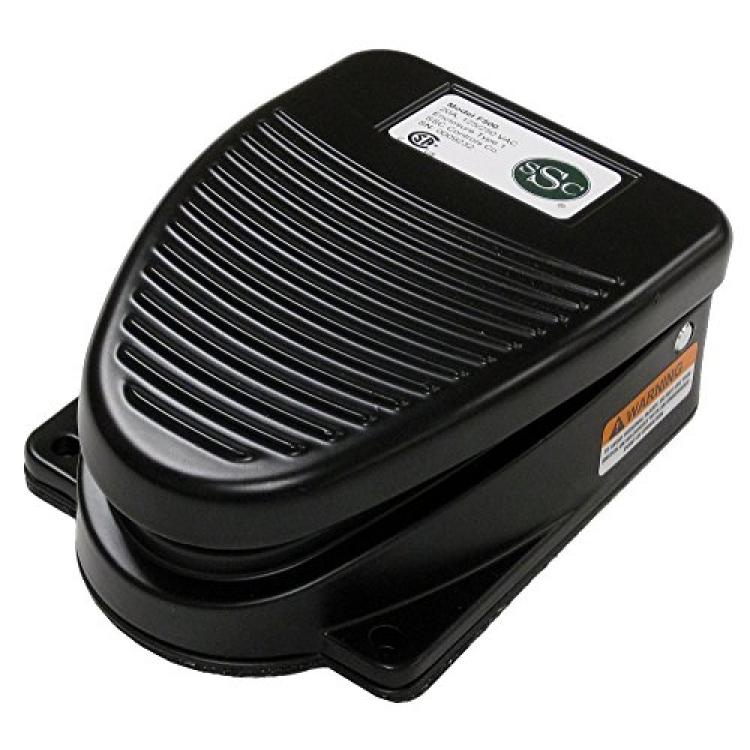

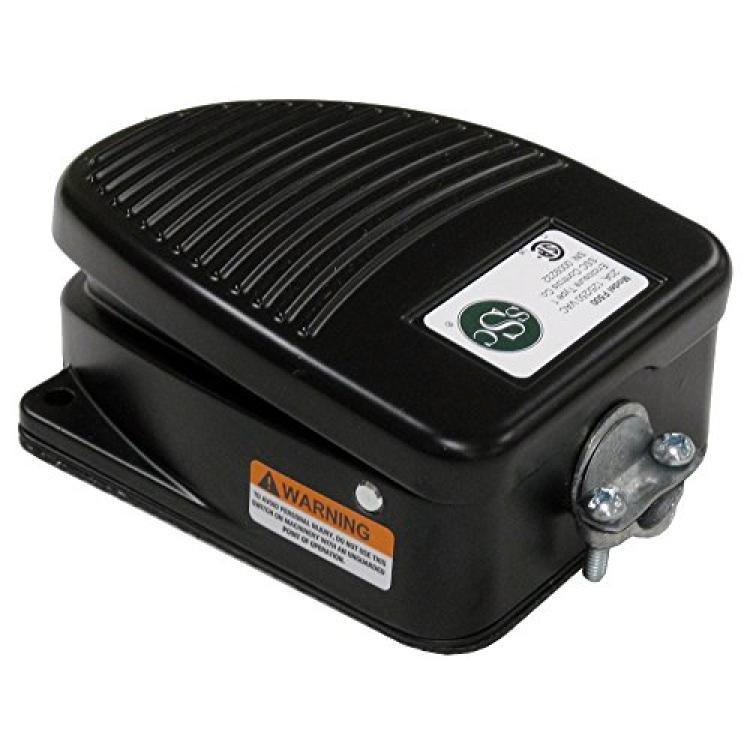

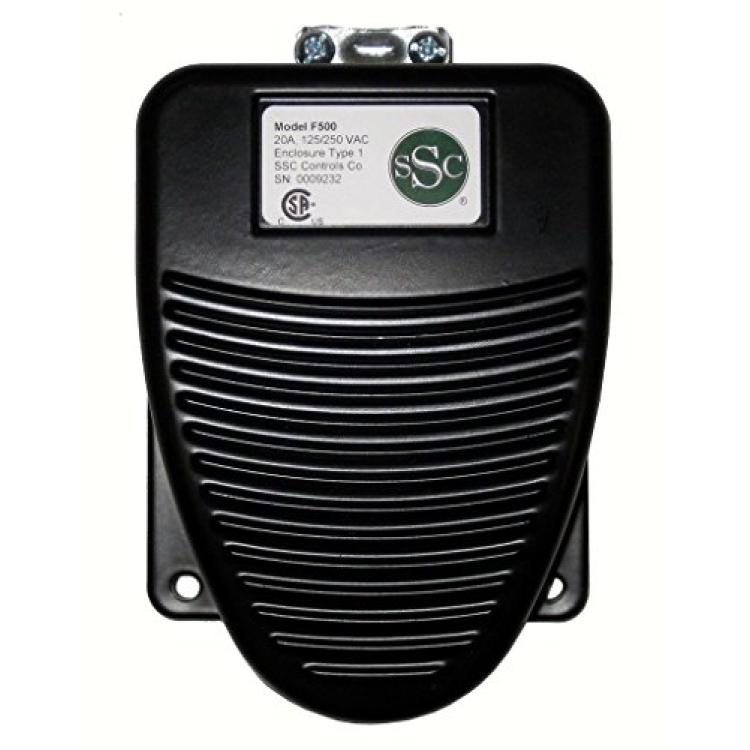

The F500 is a medium-duty foot switch featuring a highly durable die-cast housing, powder-painted finish, and easy wiring connection (using your own cable) with an adjustable strain relief. Ideal for home and shop tools, boom lifts, scissor lifts, man lifts, emergency vehicles (fire truck siren or air horn), musical operation, lighting, and more. Features a 20-amp, 125/250 VAC-rated switch with one common, one normally open, and one normally closed contact (SPDT, Form C). This switch can handle simple on/off as well as increased motor load and greater inrush currents (see specs). The switch has screw terminals on it for easy attachment with terminals or just the wire. This is a momentary foot switch, which means that it actuates when your foot is on the foot pedal, and de-actuates when you release your foot from the pedal. Includes adjustable strain relief connector, traction pad, and two exterior bolt-down holes. Enclosure rating: CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use in dry environments. Cross references: 632-S Clipper, Genie 13482. CSA Certified to US and Canadian standards. Size: 4.8" L x 3.5" W x 1.7" H; 2.1 pounds. One year warranty on parts and labor. Made in the USA by SSC Controls Company.
