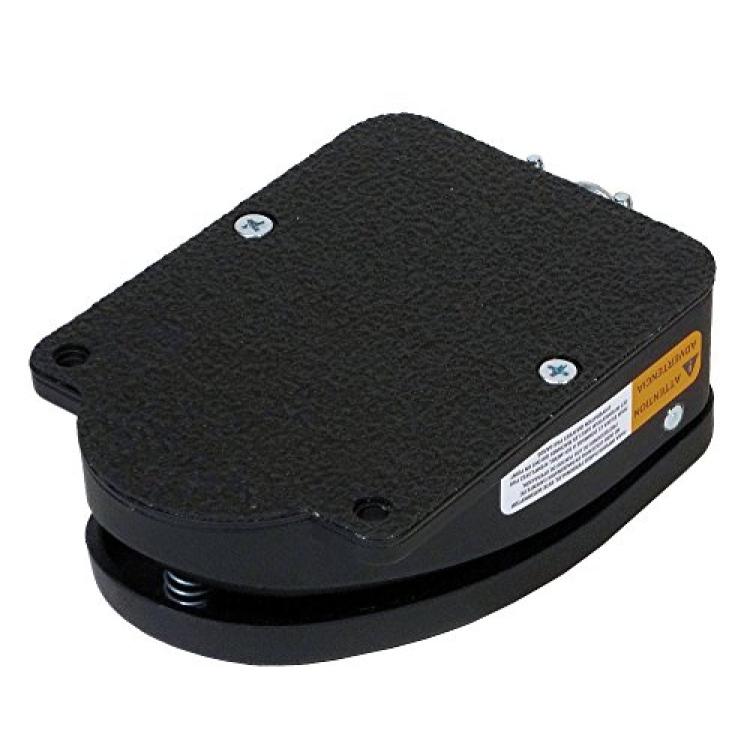

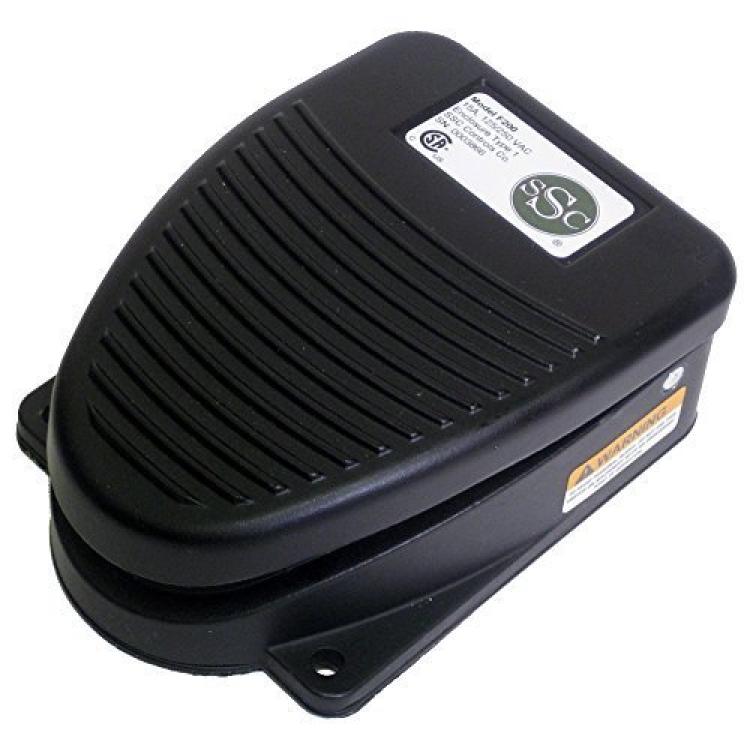

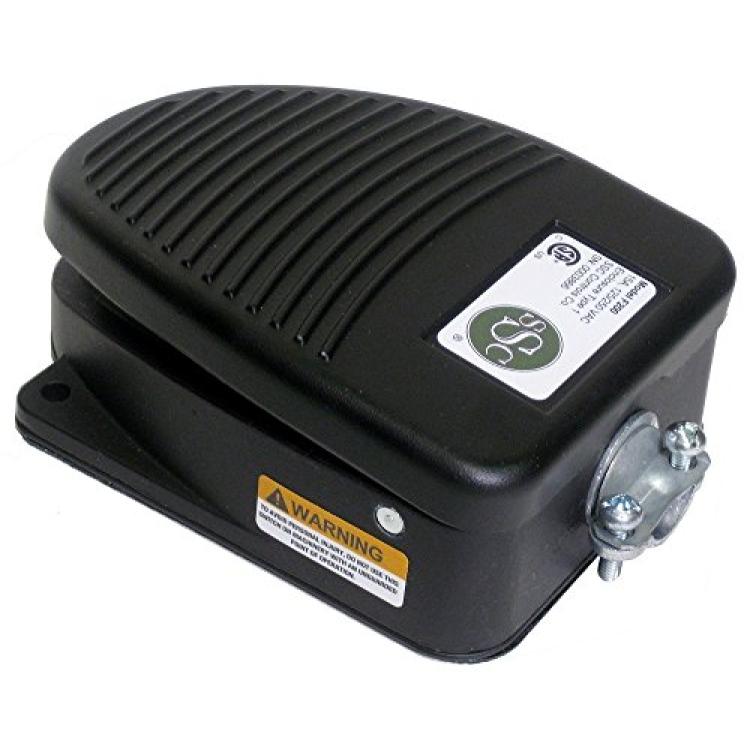

SSC Controls F200 Foot Switch, Electrical, Made in USA, Momentary Action, SPDT, Single Pedal, Replaces 632-S, Die Cast

The F200 is a medium-duty foot switch featuring a highly durable die-cast zinc alloy housing, powder-painted finish, and do-it-yourself wiring connection. Ideal for home and shop tools, office and communication equipment, boom lifts, scissor lifts, man lifts, emergency vehicles (fire truck siren or air horn), musical operation, lighting, and more. Features a 15-amp, 125/250 VAC-rated switch with one common, one normally open, and one normally closed contact (SPDT, Form C). The switch has .187 x .020 tabs on it for quick-disconnect terminals (or you can solder directly to the terminals). This is a momentary foot switch, which means that it actuates when your foot is on the foot pedal, and de-actuates when you release your foot from the pedal. Includes adjustable strain relief connector, traction pad, and two exterior bolt-down holes. Enclosure rating: CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use in dry environments. CSA Certified to US and Canadian standards. Cross reference: 632-S Clipper (note: check electrical rating requirements for your application). Size: 4.8" L x 3.5" W x 1.7" H; 2.1 pounds. One year warranty on parts and labor. Made in the USA by SSC Controls Company.
