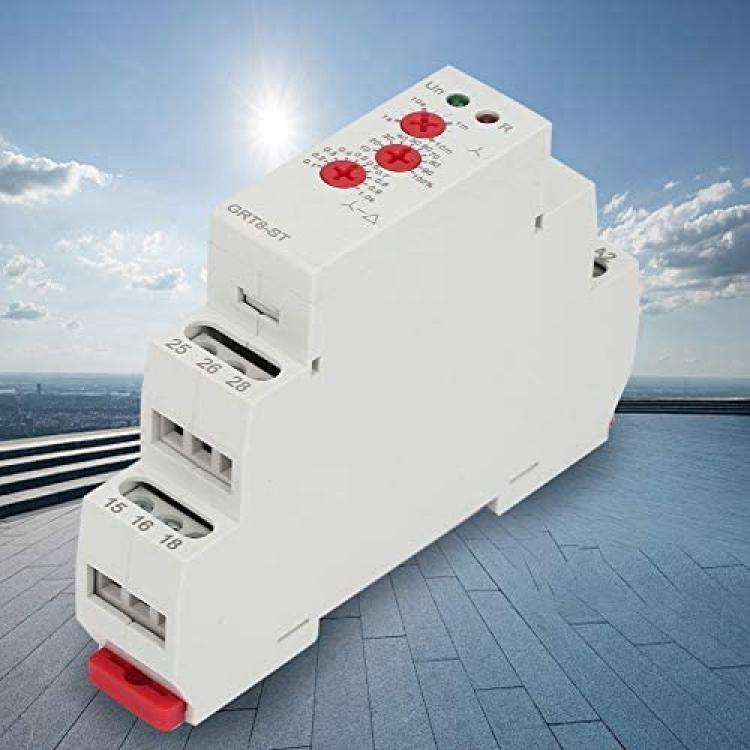

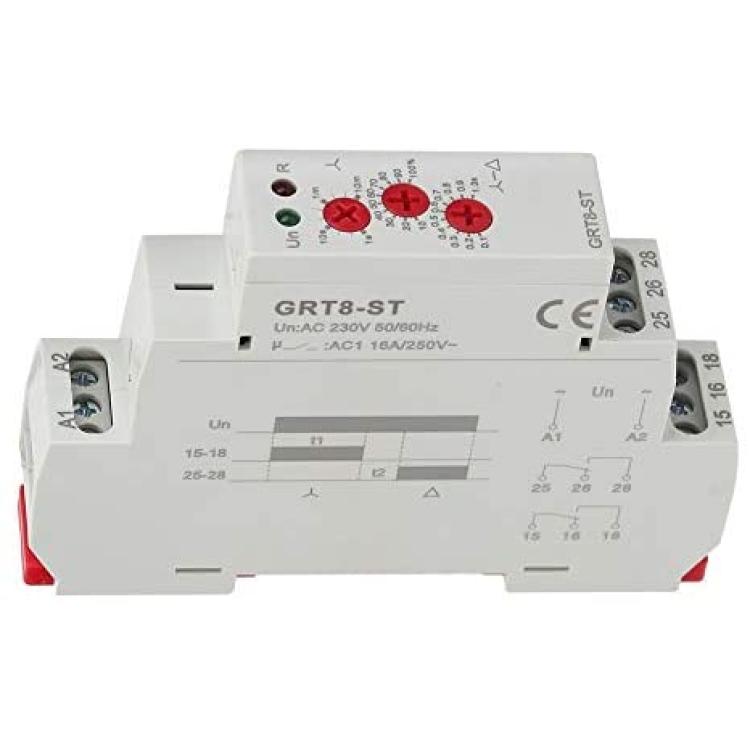

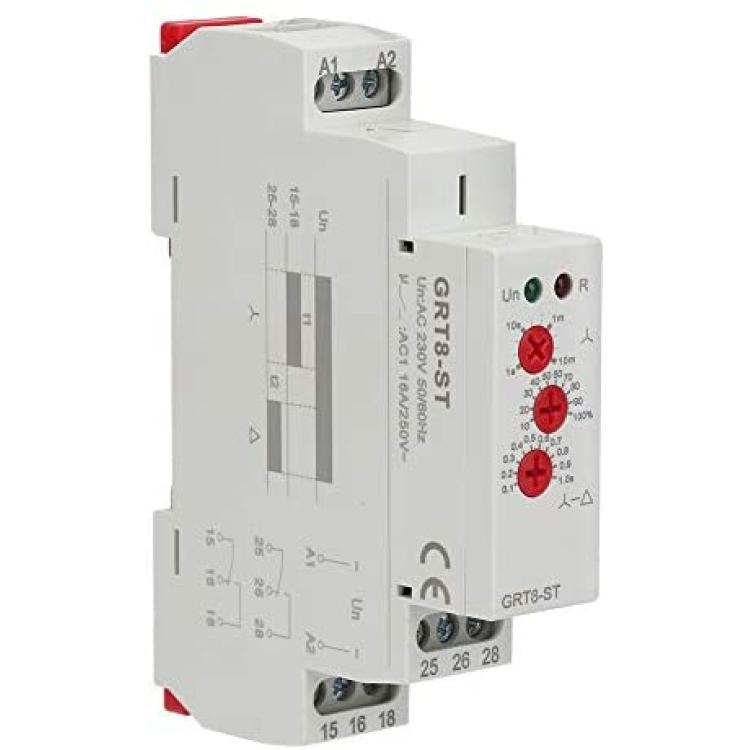

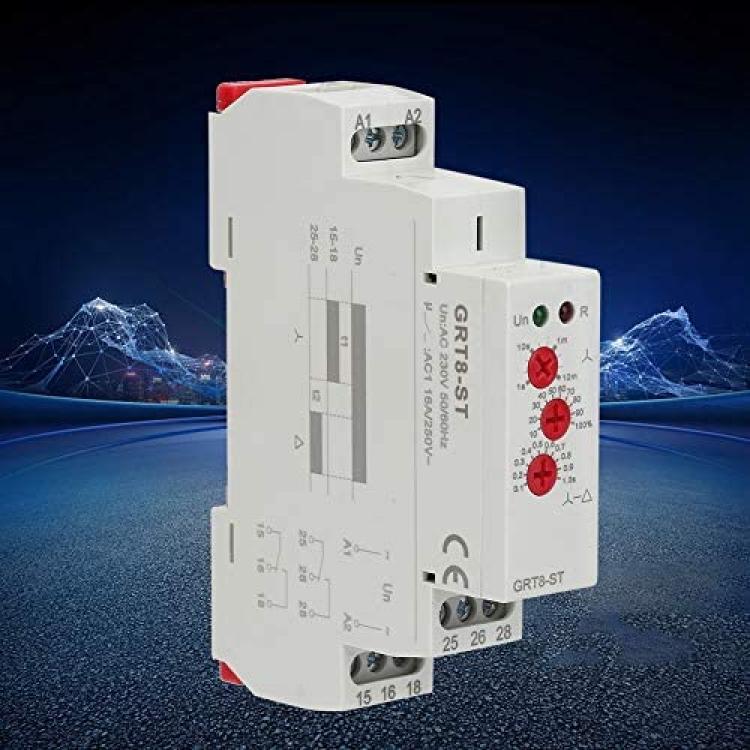

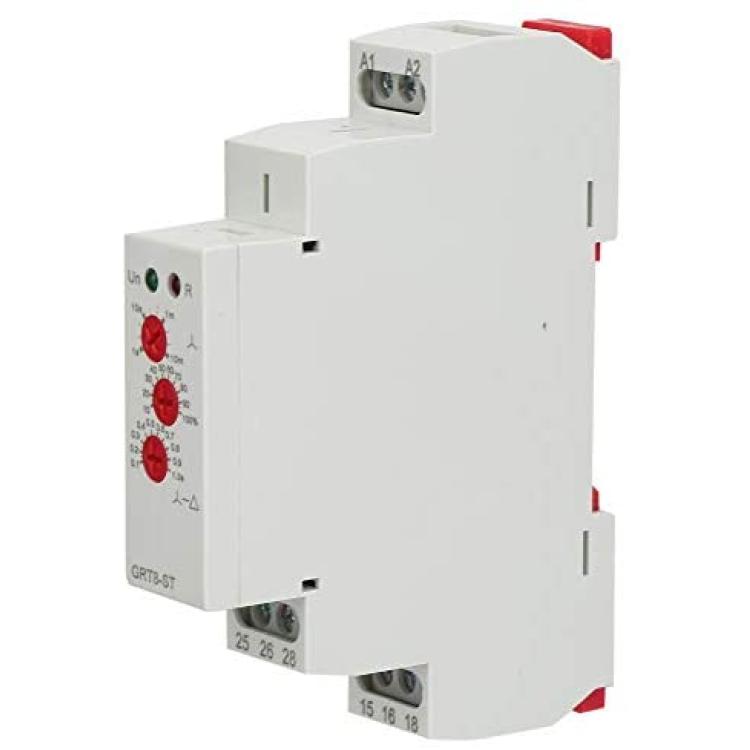

Star Delta Timer Soft Starter, Timer Delay Relay Motor Starter, for Star Delta Motor Start Control (AC/DC12V~240V)

Features:

 Specification:

Type: AC/DC12V~240V, AC380V,AC400V, AC415V, A230(Optional)

Power terminal A1-A2

Rated control power supply voltage: AC/DC 12-240v (50/60hz)

Power consumption :AC 0.7-3VA/DC 0.5-1.7W

Power supply allowable fluctuation range: -15%; + 10%

Power indicator: green LED

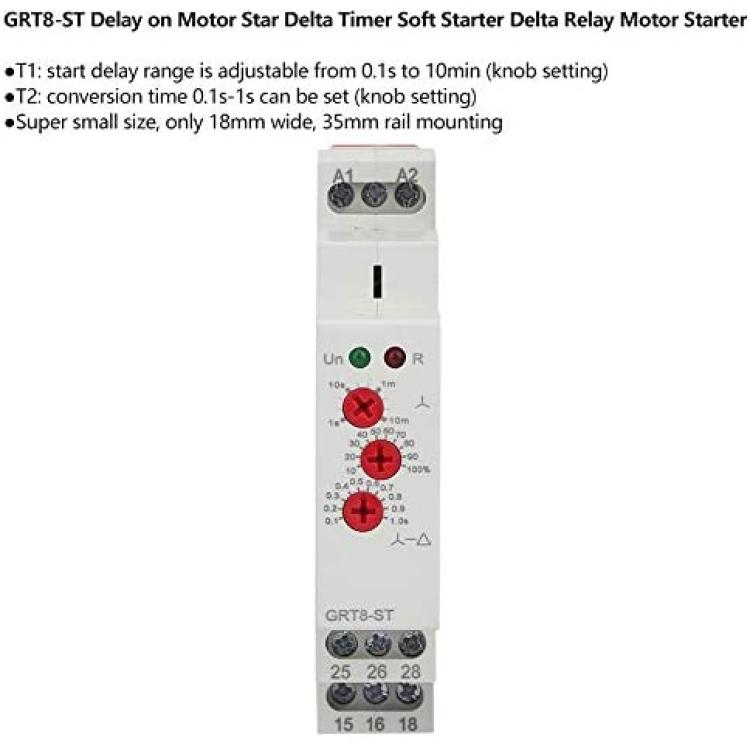

Starting delay: 0.1s-10min; conversion delay: 0.1s-1s

Setting mode: knob

Setting accuracy: 5%

Repeat accuracy: 0.2%

Temperature fluctuation error: 0.05%?,at=20?

Output: two sets of conversion contacts 16A/AC250VAC

Minimum switching power: 500mW

Output relay indication: red LED

Mechanical life: 1 x 10000000

Long-life electrical resistance (load) :1000000

Reset time: 200ms maximum

Working environment temperature: - 20?~ 55?

Storage and transportation environment temperature: - 35?~ 75?

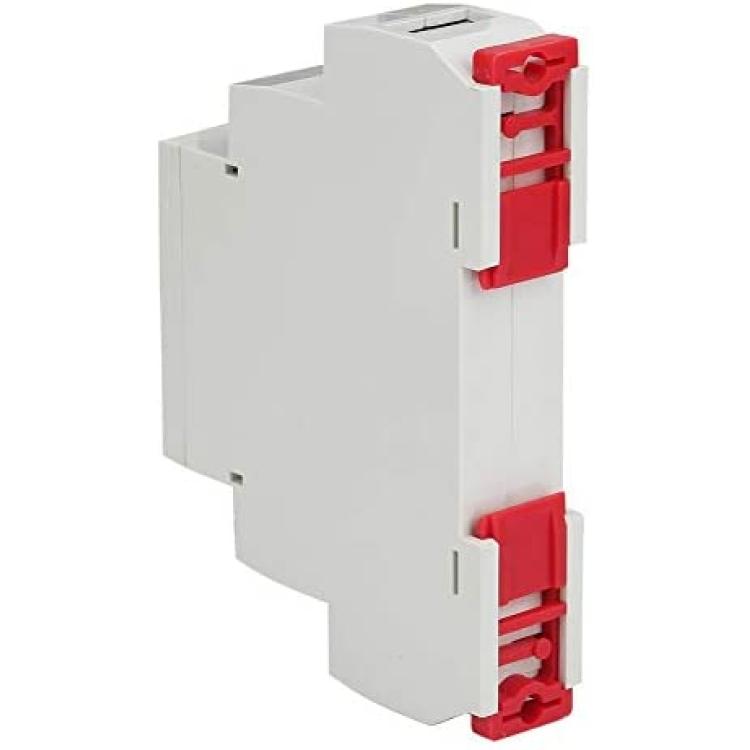

Installation: 35mm rail mounting

Protection level: Ip20

Installation location: any

Installation altitude: 2000 meters

Pollution level: 2

Wiring capacity: 1x2.5mm²or 2x 1.5mm²

Dimensions: 90*18*64mm/3.5*0.7*2.5in

Conforming to the standard: GB14048.5.IEC/EN 60255-1

Weight: Approx.96g/3.4oz

 Package list:

1 x Star Delta Timer Soft starter
