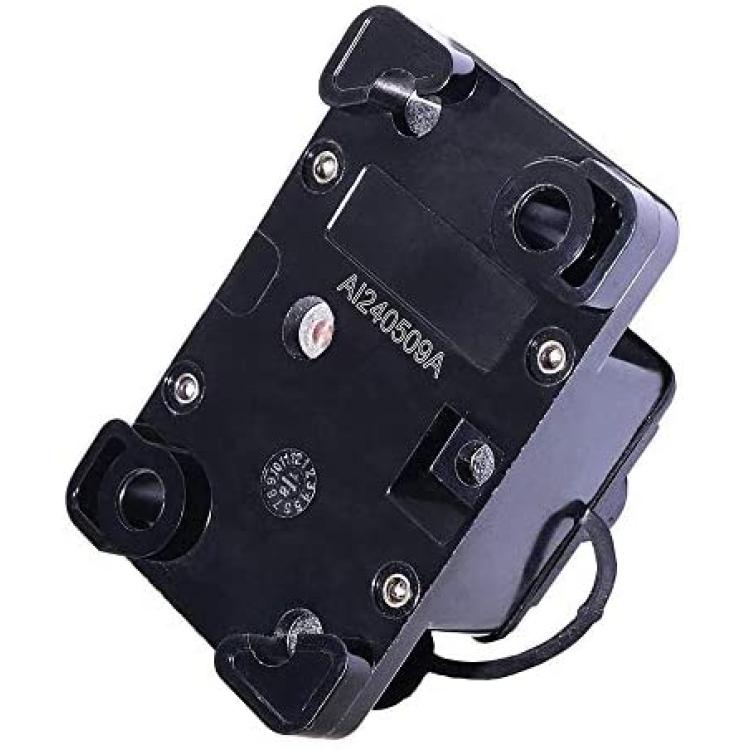

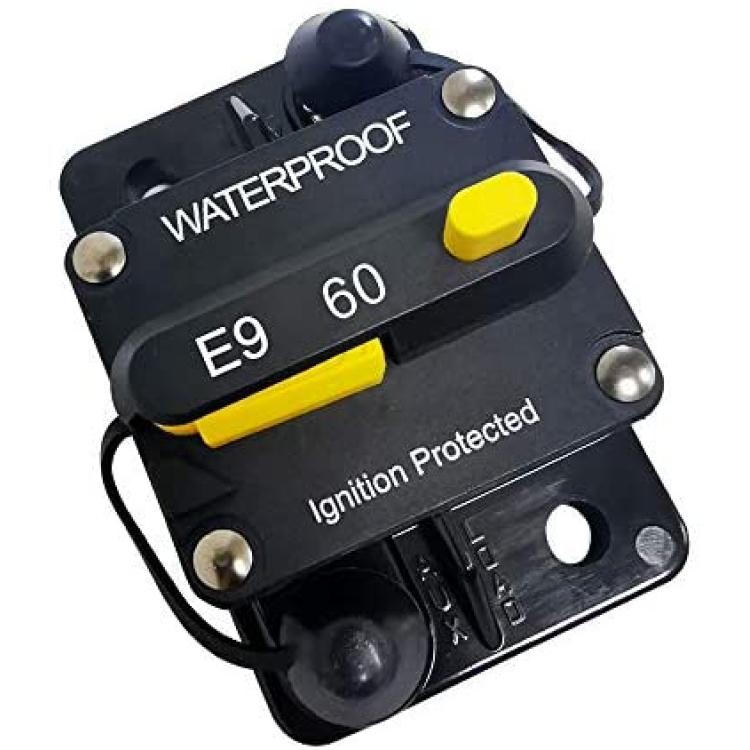

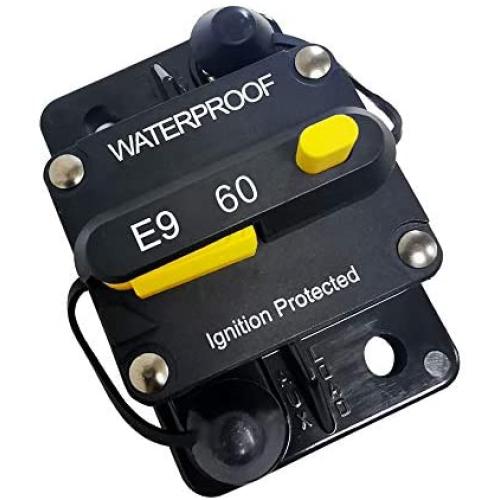

(60）Amp Circuit Protector Hi-Amp Type Circuit Breaker with Manual Reset，12V- 48VDC, Water Resistant (60A)
Availability: In Stock
About this product
*（60）A Circuit Breaker is WATERPROOF and Ignition Protected. Meet S.A.E. J1625, J1171, UL1500

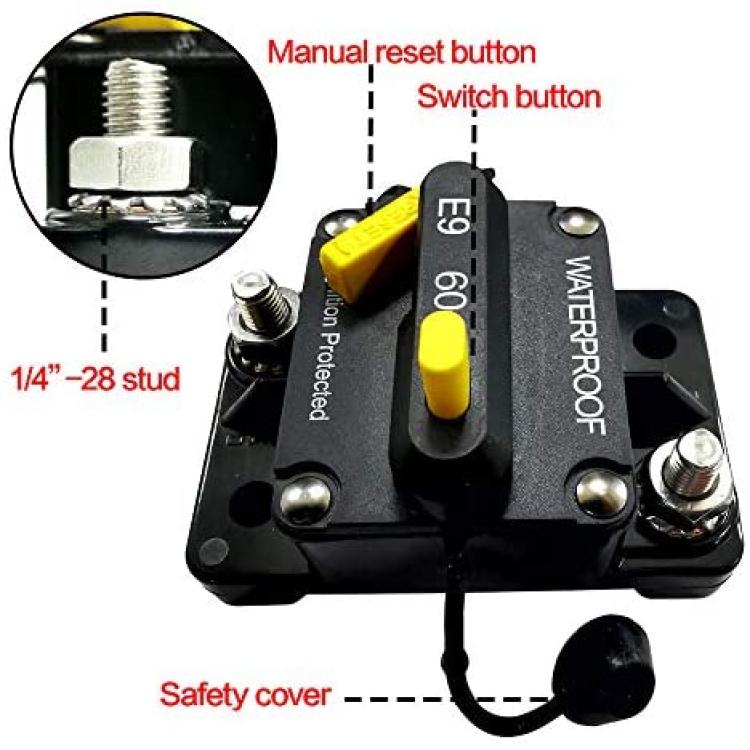

*Unique Push Button Reset can also be used as a Kill Switch.Can be mounted on Panel or Firewall.
*Housing is thermalplastic UL rated 94V3，flush-Mount with manual reset, Includes yellow reset lever.

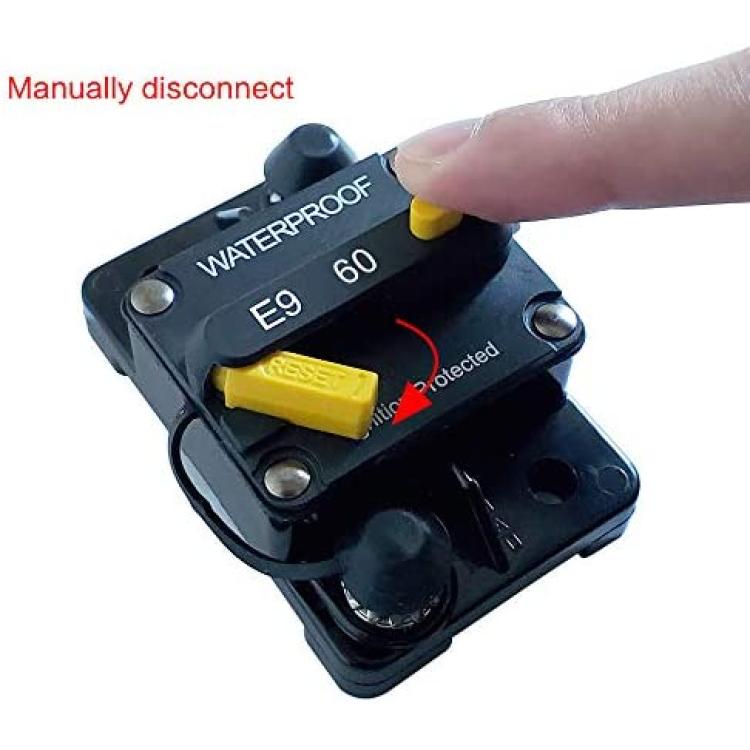

*Switch type power supply base: easy to operate, when disconnected, do not remove, just click on it to disconnect, to normal use, put the yellow button on the top of the break back on it.
*Mainly used in ships DC systems (as main circuit or branch circuit breakers), trucks and buses (commercial vehicles, passenger cars, etc.) power management systems, RV systems, additional protection and lift gates.
Description
Feature:
The breaker trip quickly,1.35 times current will be disconnected within two hours, 2 times current will be disconnected in 0~10 seconds Surface Mount
Disconnect capacity: 3000A @ 32 Vdc;5000A@16Vdc ; 3000A@32Vdc ,2000A@72Vdc
Ambient temperature: -32°C to 82 °C (-25°F to 180 °F)
Storage temperature: -34°C to 149 °C (-30°F to 300 °F)
Stud size: 1/4”-28
Size: 72*46*31mm
Use: Prevent excessive currents and protect electrical appliances.
