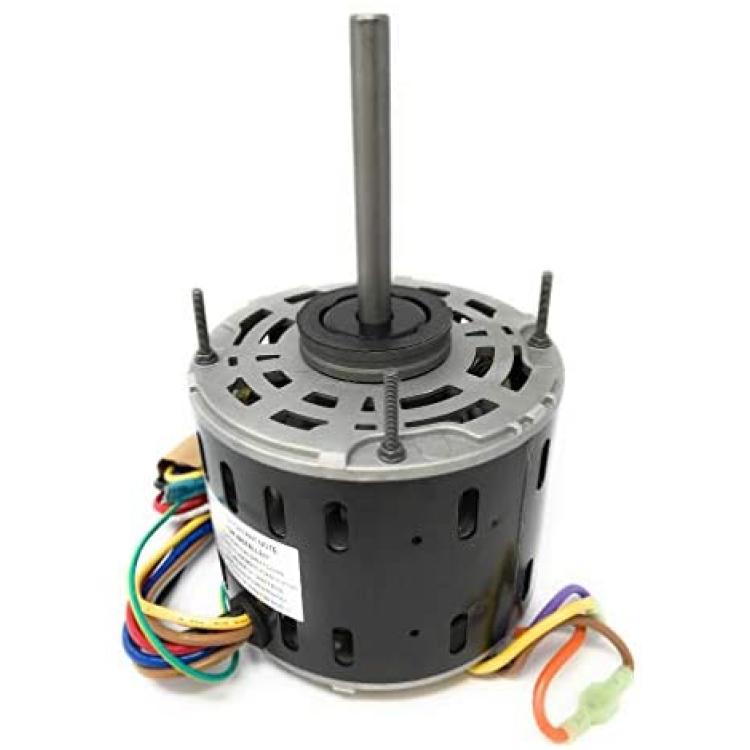

A1590, 3/4HP 230V Air Handler Motor,1075RPM, 4.5AMP

About this product

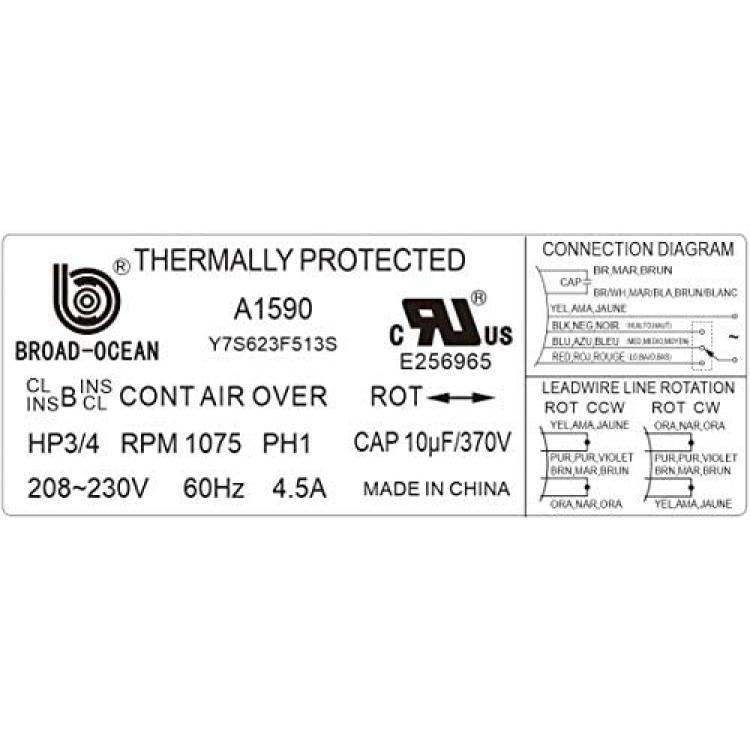

*3/4HP 230V Direct Drive Blower Motor (used on Air Handler), 1075RPM, 4.5AMP; Capacitor (required but not included): 10MFD/370V; MUST read the Wiring Diagram on motor label please. YELLOW wire to L1/L2

*Replaces: Century D1076; Emerson 8905; Grainger 4M184; MARS 10590; Fasco D729; Geteq 3590; Marathon X010; Packard 43590; Rheem W51-34BJA3-01; Carrier P257-8590; York S1-FHM3590;

*MUST read the Wiring Diagram on motor label please. YELLOW wire to L1/L2; Sleeve bearing, all angle; RHEEM mounting holes; 3 Speeds; 1/2inch extended thru bolts; 2-1/4inch resilient rings

*Class B insulation; Single phase, 60 Hz; Thermal overload protected; Reversible rotation; Fan duty, continuous air over; Open construction; 36” lead length

*Directly from Broad-Ocean, one of the top 3 leading HVAC motor manufacturers. You will find them on millions of HVAC units including Carrier, Goodman, Trane and other brands; If you are a distributor, please continue your normal channel to source Broad-Ocean motors. Thank you. This retail venue is for contractors, repair technicians, and do-it-yourselfers, who otherwise may not have been adequately served with Broad-Ocean motors
