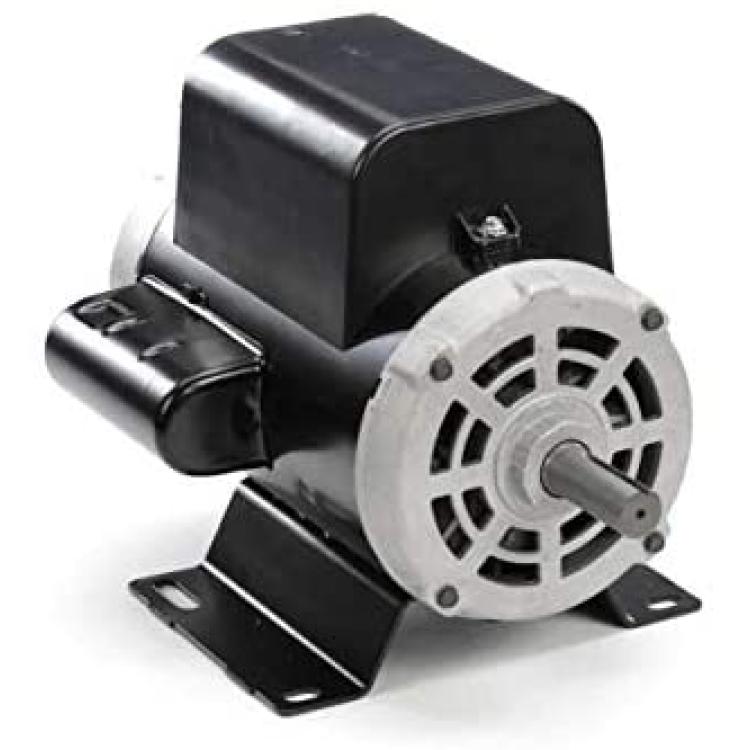

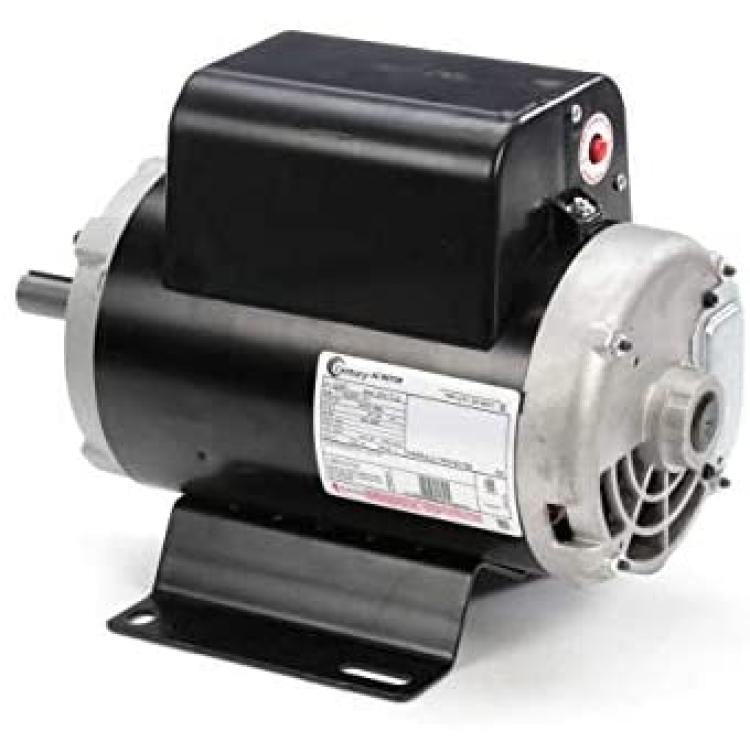

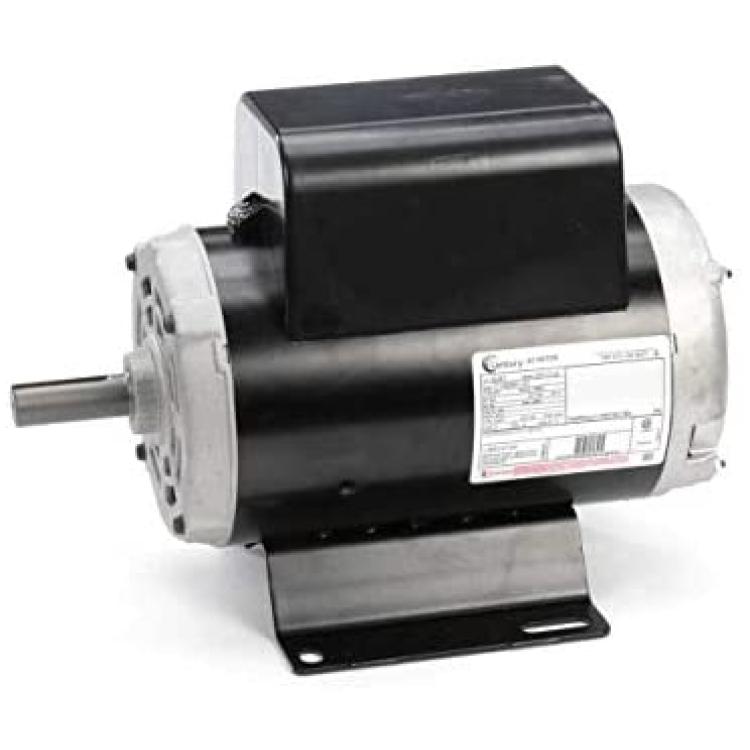

6 HP 3450 RPM R56Y Frame 230V Air Compressor Motor - Century # B387

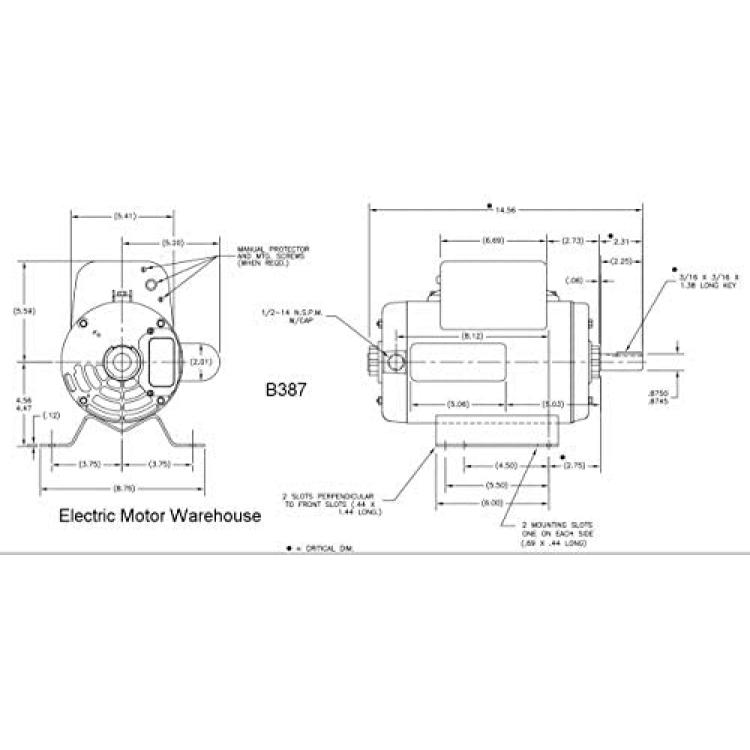

Replacement compressor motor. Motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. Not to be used where the mount is a pivot type mount. 56Y frame is a non standard shaft. Shaft is 7/8" diameter x 2 1/4" with keyway. Shaft height to center of shaft is 4.5" Rigid base mount is standard 182T & 184T. Overall motor length is 14.56" Motor connection diagram is on motor name plate. Capacitor Start/Capacitor Run.
