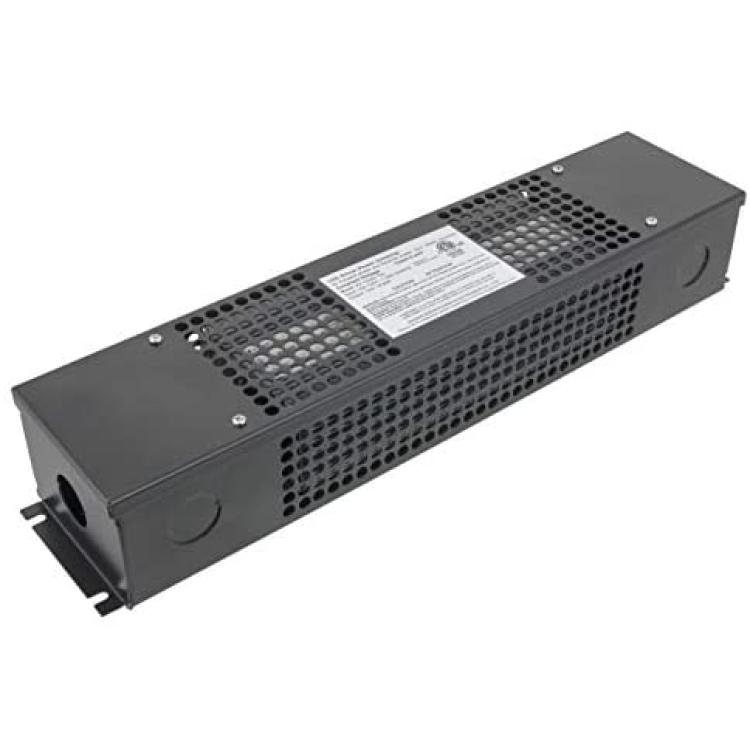

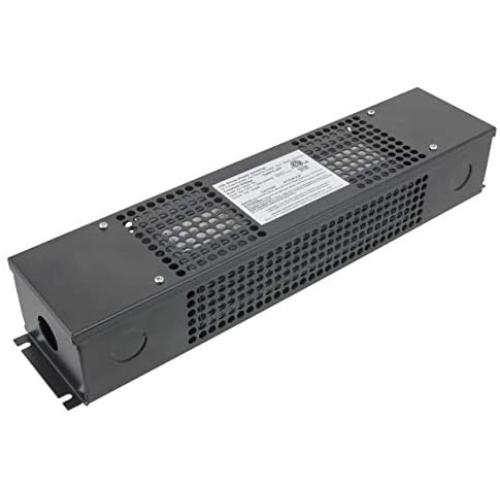

American Lighting ELV-80J-12-MASTER Electronic LED Hardware Power Supply, Adaptive, 80-Watt 12V Electonic Low Voltage Driver, Black
Availability: Pre-Order, Inquiry Price
About this product
*WATTAGE: 80-Watt capacity 12V constant voltage hardware driver power supply
*BUILT-IN PROTECTION: Standard built-in protections include short-circuit, over-current, over-voltage and over-temperature protection
*APPLICATIONS: Suitable for LED Lighting power supply. Dimmable with standard leading edge dimmers (aka forward phase, MLV, Incandescent, TRIAC) and trailing edge dimmers (aka 2-wire reverse phase, ELV).
*SPECIFICATIONS: Class 2 12V constant voltage driver. Dimmable with standard leading edge dimmers (aka forward phase, MLV, Incandescent, TRIAC) and trailing edge dimmers (aka 2-wire reverse phase, ELV). Slim compact housing design features built-in terminal blocks with integrated wire cover strain reliefs. cETLus Listed (indoor dry locations).
*WORKS WITH MOST PROJECTS: ELV drivers can be used in dimming applications with a 60% minimum load attached; and in non-dimming applications with no minimum load requirements
Description
The 60W and 80W ELV drivers feature cETLus Listing with high reliability and Class 2 rating. Standard built-in protections include short circuit, overcurrent, over-voltage, and over temperature. ELV drivers can be used in dimming applications with a 60% minimum load attached; and in nondimming applications with no minimum load requirements. Metal housing features ventilation perforations, three 1/2” knockouts at end and carries an IP66 level of ingress protection
