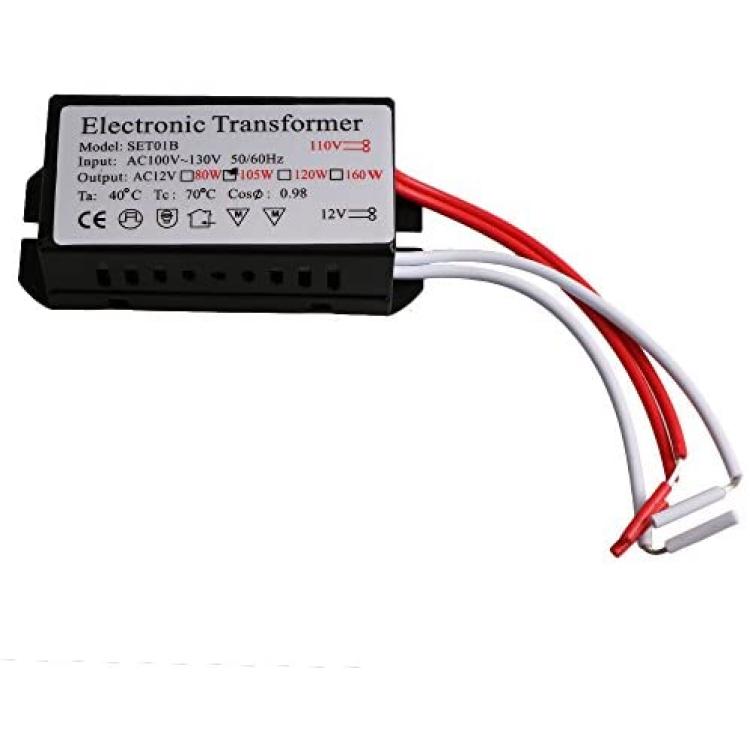

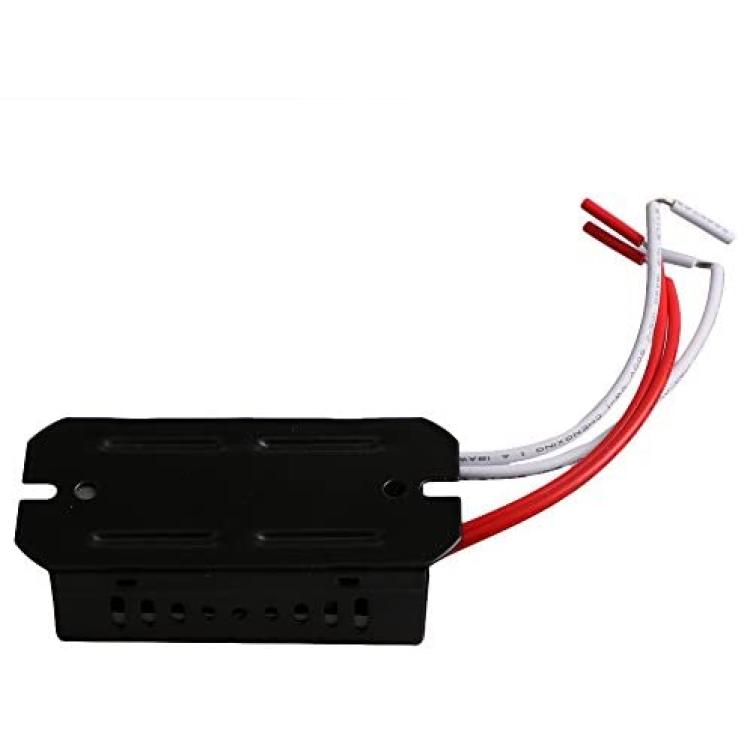

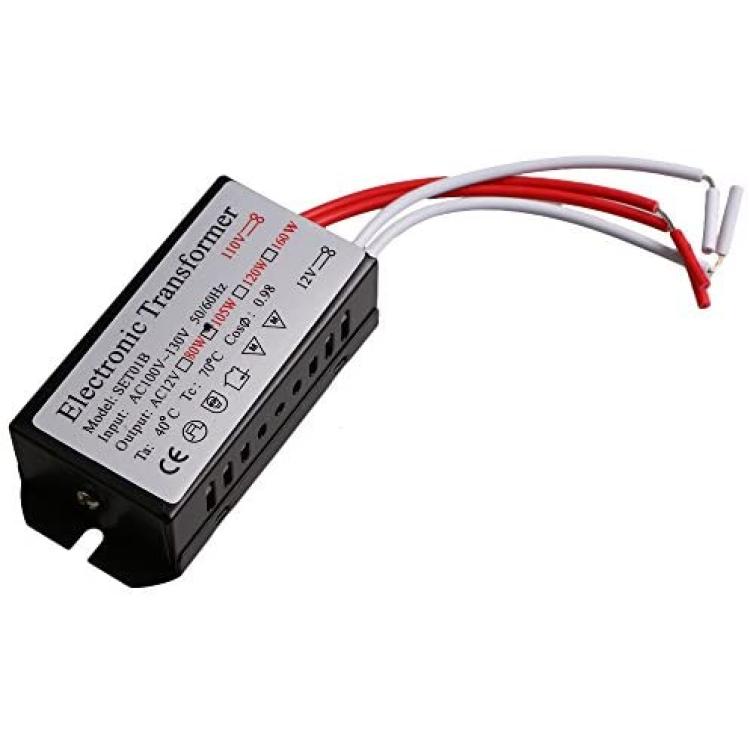

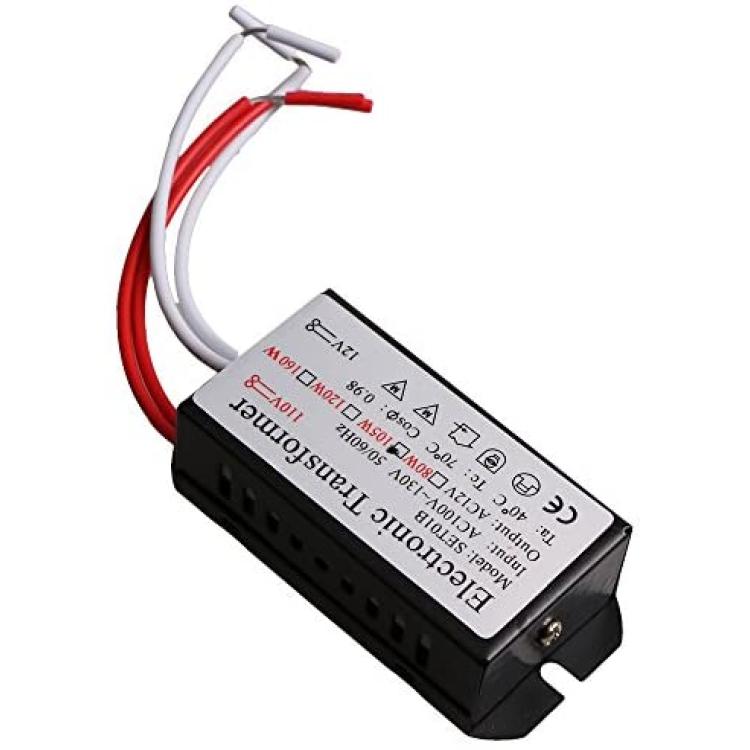

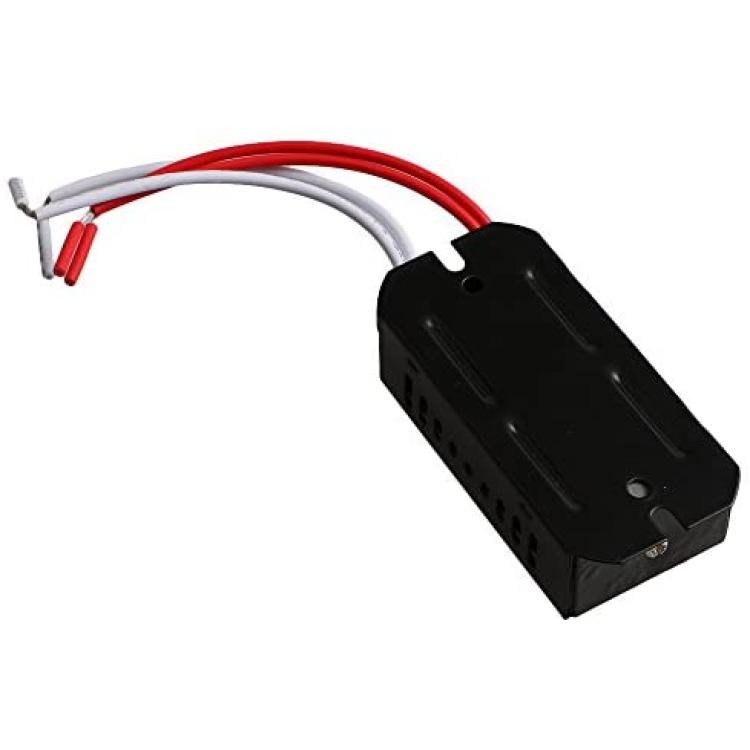

Halogen Light Power Supply Converter 80W,105W ,120W,160W 110V LED Electronic Transformer Adapter to 12V AC
About this product
*Model: AET110V 105C/T
*Material: Iron Sheet
*Input voltage: AC110V 50Hz/60Hz
*Rated power: 80W,105W,120W,160W (maximum power)
*Note: The two white wires are directly connected to 12V halogen lamp beads, and the two red wires are connected to the power supply 110V. If they can light up normally, there is a 12V output. The output of 2 white wires can be directly connected to the 12V halogen lamp, and the product can only carry resistive load (halogen lamp beads, electric heating wire lamp), not inductive load or led load. In addition, the multimeter cannot measure high frequency AC 12V.
Description
Specification:
Model: AET110V 105C/T
Color: black
Material: Iron Sheet
Size:
80W-105W:72(include the base hole ) x 34 x 24mm/2.9 x 1.46 x 0.94inch(L x W x H)
120W-160W:82(include the base hole ) x 42 x 25mm/3.2 x 1.52 x 0.94inch(L x W x H)
Input voltage: AC110V 50Hz/60Hz
Output voltage: AC12V
Power factor: 0.99
Rated power: 80W,105W,120W,160W (maximum power)
Product life: normal use for more than 2 years
Wiring method: red for AC110V input; white for AC12V output
Feature:
Application: 12V / 80W,105W,120W,160W quartz (halogen) lamp beads, light bulbs, lamp cups.
Package Include:
1 x 110V Electronic Transformer
Note:
The color of the item may vary slightly due to photography and your own computer.
