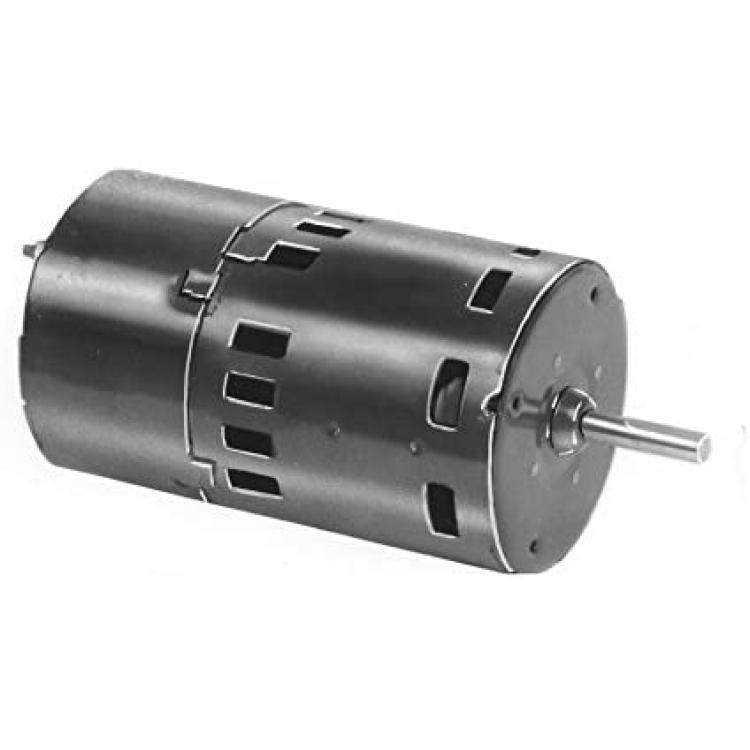

1/150hp 3000RPM CW 3.3'' Diameter 115 Volts (Coleman) Fasco # D408

Condenser Fan Motor, 1/150 HP, OEM Replacement Brand Coleman, Replacement For 7121-5906 This listing is for each. Technical Specification Item Condenser Fan Motor Motor Application OEM Replacement Motor Sub Application Condenser Fan Phase Single Motor Design Shaded Pole HP 1/150 Nameplate RPM 3, 000 No. of Speeds 1 Voltage 115V AC Full Load Amps 0.48 Frame 3.3 in OEM Replacement Brand Coleman Replacement For 7121-5906 Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class A Max. Ambient Temp. 40 Degrees C Motor Shaft Rotation CWSE Motor Enclosure Design Open Air-Over Motor Mounting Type Stud Motor Frame Material Steel Number of Shafts 1 Shaft Dia. 1/4 in Shaft Length 1 1/2 in Motor Shaft Design Flat Motor Bearings Sleeve Overall Length 7 7/16 in Length Less Shaft 5 9/16 in Body Dia. 3.4 in Weight 3 lb Mounting Stud Pattern 2 in x 2 in Bolt Circle Dia. 2 13/16 in Stud Size #8-32 X 3/4 in Standards CSA Certified, UL Recognized Capacitor Required No
