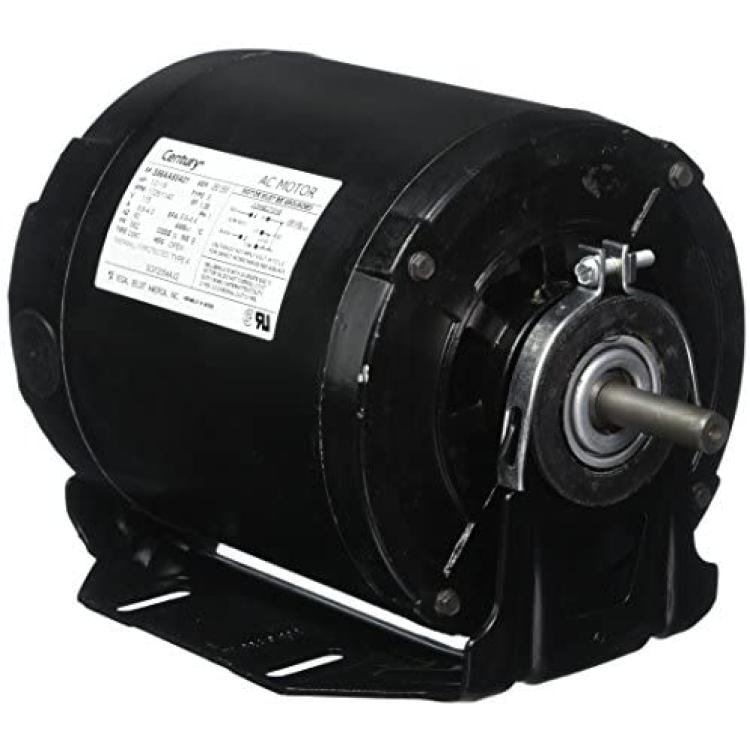

1/4hp 1725RPM 48/56Frame 115 volts Belt Drive Furnace Motor Century # GF2024

Century General Purpose 1725 RPM 115 Volts 40º C rise Continuous duty Split Phase 60 HZ Resilient Base Mounting Reversible Rotation Automatic Overload Single Phase HORSEPOWER 1/4 MOTOR RPM 60Hz 1725 VOLTAGE 115 PHASE 1 FRAME 48 ENCLOSURE TYPE Open/Drip Proof HERTZ 60 SPEEDS 1 ROTATION CCW/CW THERMAL PROTECTION Automatic RATED RPM 1725 MOUNTING Resilient FULL LOAD AMPS 5.4 SHAFT DIAMETER 0.5 SHAFT LENGTH 6 BEARING TYPE Sleeve INSULATION CLASS B SERVICE FACTOR 1.35 AMBIENT TEMP C 40 LENGTH LESS SHAFT INCHES 7-1/2 DUTY Continuous APPROVALS OR CERTIFICATIONS UL and CSA is_motor Yes RPM RANGE 1701-1800 COMPATIBLE WITH/REPLACES AO Smith 316P758 FL AMPS 5 HERTZ (HZ) 60 MOTOR TYPE Split Phase ENCLOSURE ODP
