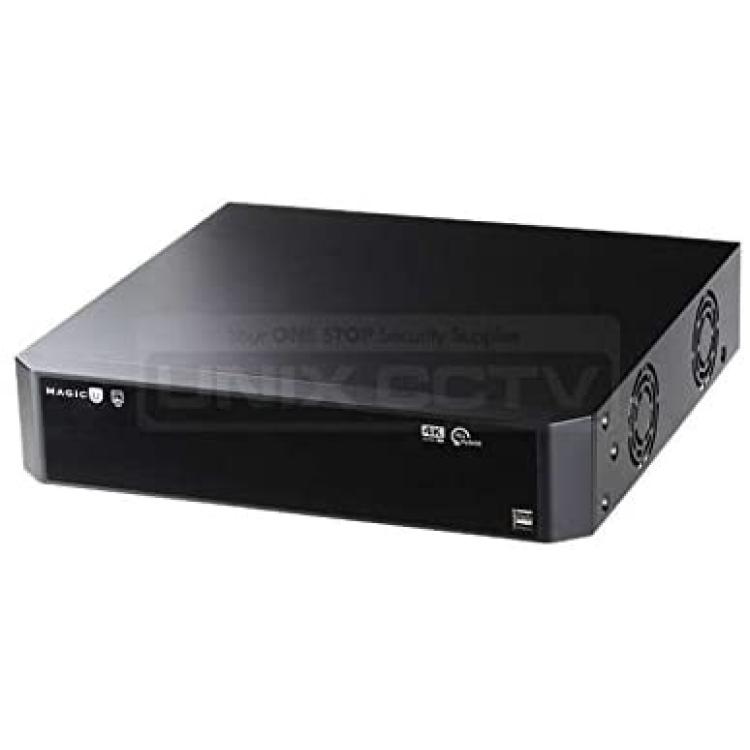

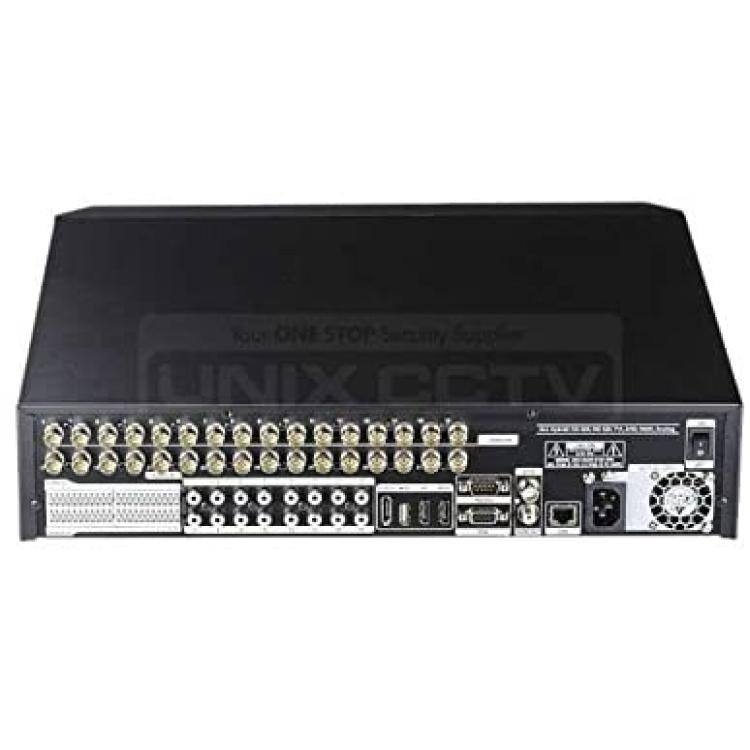

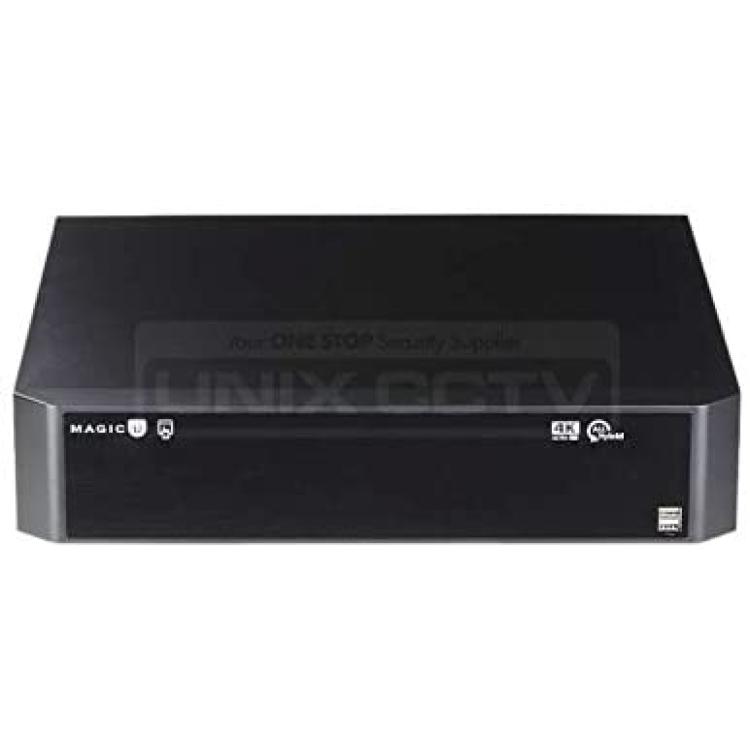

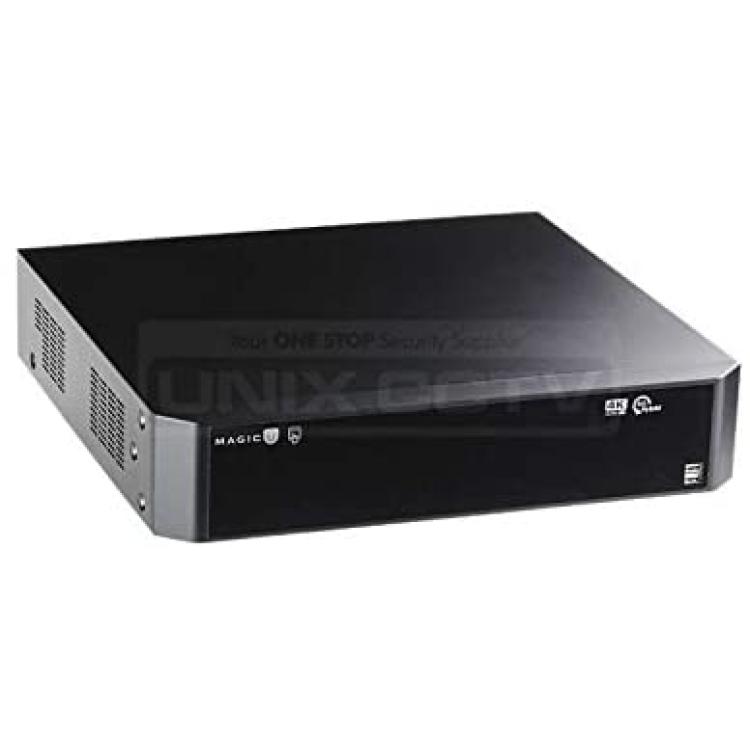

Eyemax | UVST MAGIC-U32M | Magic U Series | 32CH Octa-Brid DVR System, 4K Output, 8 HDD Slots, eSATA, 16CH Audio (NO HDD)

Video : Camera input 32 BNC Individual HD/Analog selectable Analog, AHD, TVI, 3M TVI, HD-SDI, EX-SDI, IP, CVI (NOT OPEN) Available source TVI 720p25,30 / 1080p25,30 / 3MP 18 AHD / HD-SDI / EX-SDI 720p25,30 / 1080p25,30 Composite / 960H / Mixed IP Camera Spec ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethnet hub IP Camera Num 4 IP Camera Restriction Cannot display HD SPOT, SPOT Cannot setup Private ZONE Cannot attach email image Cannot snapshot live image Cannot support Timestamp Output 2 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) Audio Audio input 16 RCA Output 1 RCA Sensor In 16 (NC, NO selectable) Alarm out 2 Relay, 14 TTL Operating System Embedded Linux OS Display Speed Real Time Resolution (Pixel) 1280×1024, 1280×720, 1920×1080, UHD Split screen 1,4,6,8,9,13,16,25,32 Main Recording Resolution (Pixel) 1080p, 720p, 960×540 (1080p25,30) 720p, 960×540 (720p25,30) 960H, D1 (Composite, 960H) Picture Quality 4 steps (Super, High, Medium, Low) Speed 288fps@3MP TVI 480fps@1080p Dual Recording Resolution (Pixel) 480×256 Playback Display 1,4,6,8,9,13,16,25,32 Search mode Calendar, Event ,POS , Panorama, Thumbnail Speed 80fps@3MP 120fps@1080p Fast/Slow speed Normal, REW & FF [recorded speed ×2, ×4, ×8, ×16,×32,×64,×1/2,×1/4], Frame to frame, Pause
