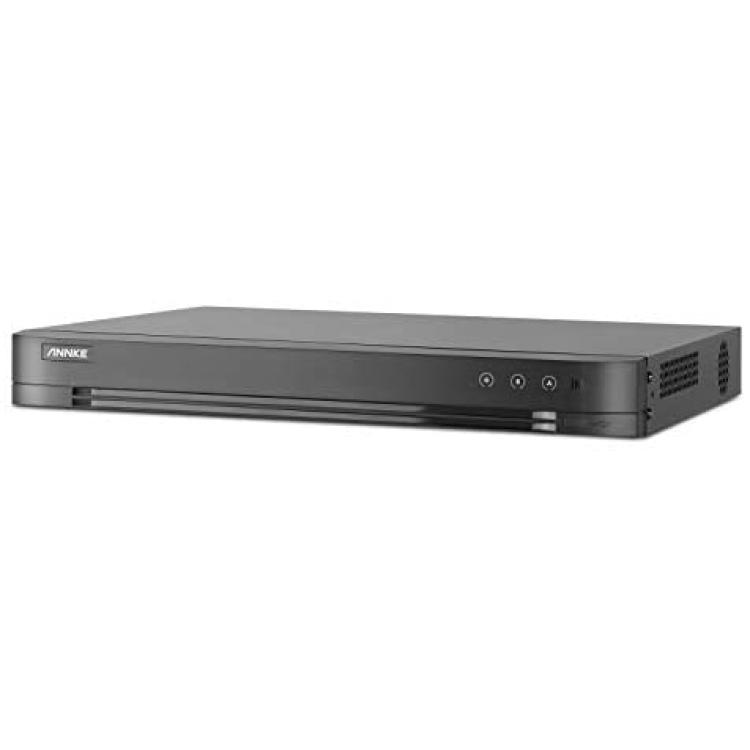

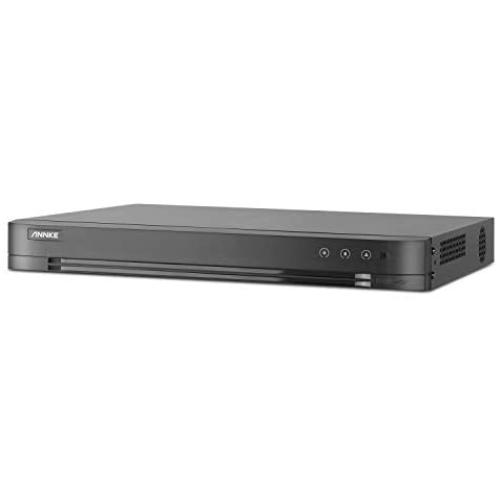

ANNKE 16CH 4K Surveillance Digital Video Recorder, 8MP H.265+ Security DVR for Home& Business, Easy Live Viewing, Recording & Playback, Support TVI/AHD/CVI/CVBS/IPC Input, NO HDD
About this product
*【Up to 8MP 4K Ultra HD Stream】 The DVR supports up to 8MP CCTV security cameras for true 4K Ultra HD live stream, video record & playback. Get local instant 4K live stream via HDMI output or 1080p Full HD footage with VGA output.

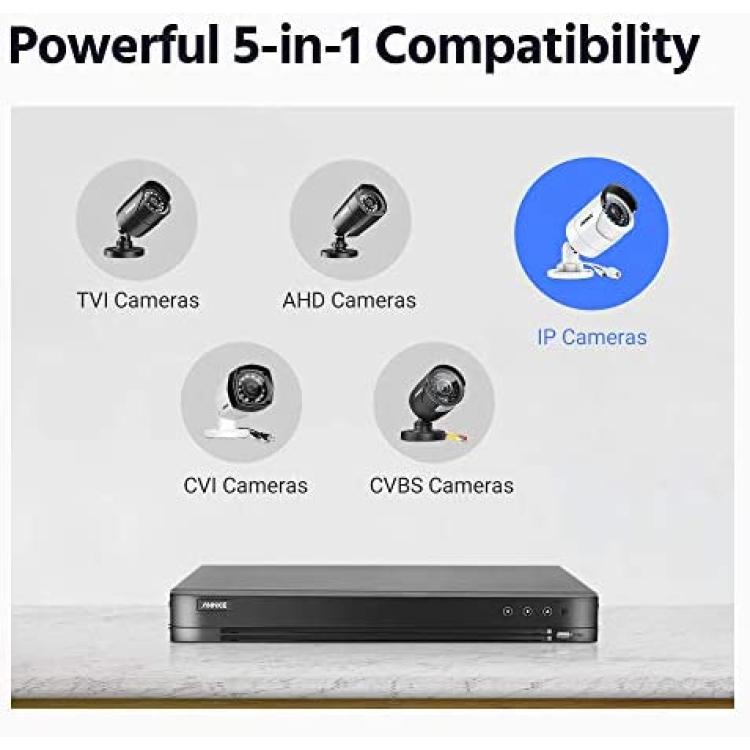

*【Powerful & Expandable ONVIF DVR】 This ONVIF digital video recorder supports up to 16 channel TVI, AHD, CVI & CVBS CCTV analog security cameras and can be added with another 16 IP cameras simultaneously. Connect ANNKE CCTV security cameras or other brands’ ONVIF analog video cameras to the DVR for unlimited integration.
*【Advanced H.265+ Video Format】 The high-efficiency H.265+ coding provides smoother & faster stream, consumes less bandwidth, and records more videos with the same HDD than H.265, H.264+ & H.264 systems. Provide super long recording time, which is 7X times longer than H.264 systems.
*【Remote Access & Smart Motion Detection】 Access the DVR remotely with free ANNKE Client & App and a browser via your smartphones, tablets, computers wherever. The all-around detection ways, including line crossing, intrusion, sudden scene change, video tampering/loss detection, provide the most accurate motion detection alerts.
*【Secure Encryptions and Protocols】 ANNKE products are secured by multi-level encryptions and protocols to ensure the data transmission and download are extremely hackproof. Users can activate the DVR only by creating the activation password and access the system with the correct stream protection password.
Description
ANNKE 5-in-1 16 channel digital video recorder supports 16 TVI, AHD, CVI & CVBS CCTV security cameras and expands another 16 IP security cameras. The exceptional detection ways provide the most accurate motion alerts. Reduce bandwidth consumption & storage space and deliver fast stream with the top-notch H.265+ video format.
Main Feature Overview
. Up to 8MP 4K Ultra HD Stream
. Advanced H.265+ Video Format
. Powerful 5-in-1 Compatibility
. Line Crossing & Intrusion Detection
. Area Mask for Privacy Protection
. Video Tamper/Loss Detection
. Sudden Scene Change Detection
. Smart Motion Detection Alerts
. Unlimited Remote Access Anytime
. Secure Encryptions and Protocols
. 4K HDMI & 1080p Video Output
Specifications
Video Compression: H.264+/H.264/H.265/H.265+
Video Input: 16CH Analog HD/Analog + 16CH IP
Video Output: CVBS; VGA up to 1080p; HDMI up to 4K
Audio: Input/Output4/1 RCA
Supported Analog Camera TypesSupport HD TVI Input: 8MP, 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps;
Support AHD Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support CVI Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support CVBS Input
Analog HD Playback Resolution: 4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
IP Camera Input: 16CH
IPC Recording Resolution: Up to 8MP
IPC Playback Resolution: Up to 8MP
Max Playback Channel: 16CH
ONVIF: Support
What’s in the Box?
1X 16ch 4K DVR, NO HDD
1X USB Mouse
1X Power Adapter
1X HDMI Cable
1X Network Cable
1X User Manual
