Brushless Motor Driver Controller, WS55-180 DC 20V-50V Spindle BLDC DLDC Motor Driver Controller
Availability: Pre-Order, Inquiry Price
About this product
*WS55-180 is a high performance,cost-effective 3 phase BLDC motor controller.Voltage range is from 20VDC to 50VDC
*The controller can drive the DLDC motor with HALL or without HALL.
*This controller can be used in small equipment, Electric Power Tools, exhaust Fan, Jade grinding machine, Vibrating motor etc
*External potentiometer control/external voltage control
*With overvoltage protection, over-current protection, locked-rotor protection
Description
Features:
  The driver is based on advanced technology and be provided with high speed, high torque, low noise, low vibration, over current protection, overload protection, less phase line. protection, phase line short protection, alarm output, speed signal output, positive negative rotation control etc.
Specifications:
Rated voltage:20 to 50 VDC
Rated current: 10A
Current limiting:15A
Maximum speed: 20000RPM( the specific speed depends on the motor itself and load)
Storage temperature: -20?~+65?
Usage environment: Avoid direct contact with dust, fumes and corrosive gases
Temperature: 0-45?
Humidity: < 80%, no frost, frost free
Shock: 5.9m/S2 MAX
Storage humidity: 0~95%RH

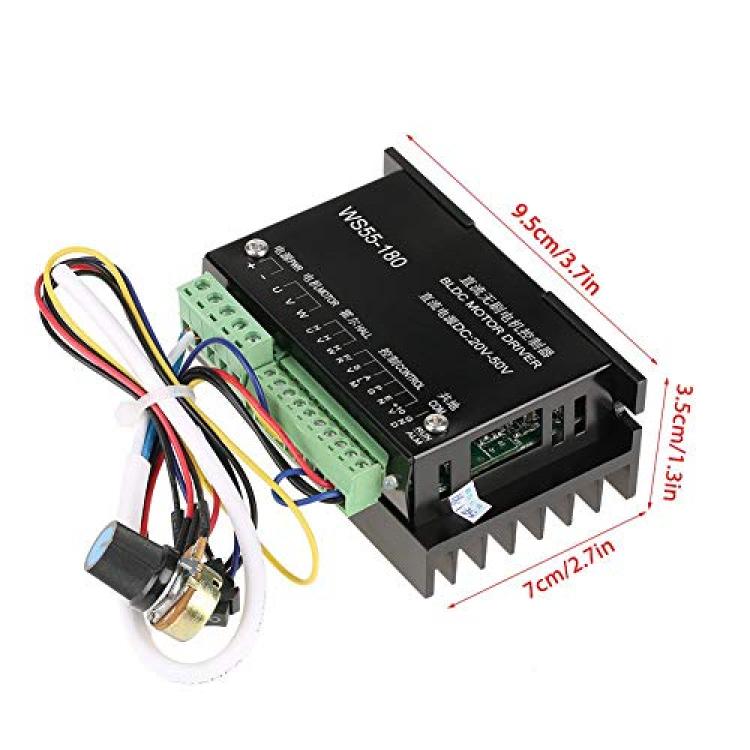

Size: 9.5 * 7 * 3.5cm / 3.74 * 2.76 * 1.38inch
Weight: 260g
Package included:
1 x Motor Driver Controller with cable
