Dayton AC Parallel Shaft Gear Motor Model 1LPP3, Degrees_Fahrenheit, to Volts, Amps, (

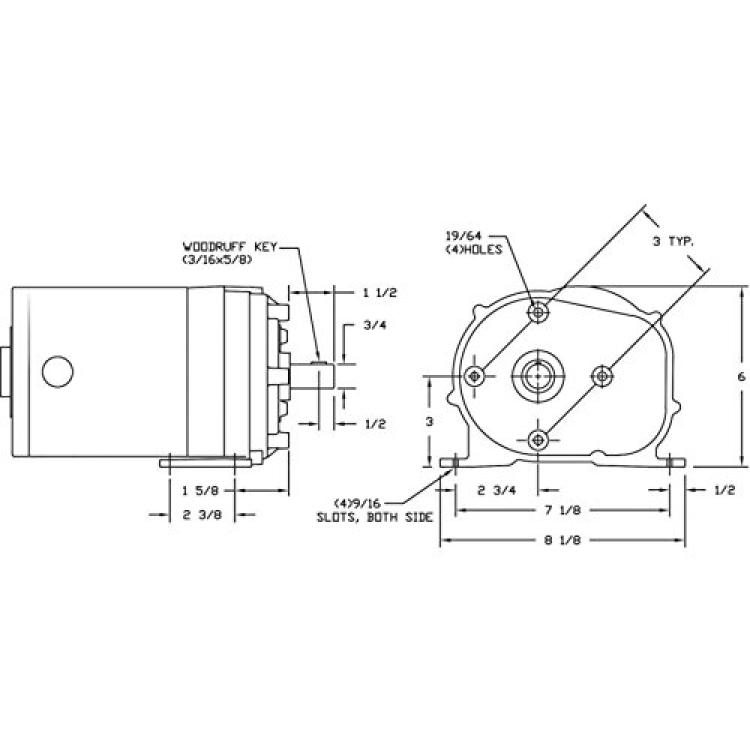

AC gear motor, voltage 115VAC, phase 1, Hz 60, shaft orientation parallel, reversible shaft output no, shaft single output, Nameplate RPM 40, max. Torque 330 in.-Lb., overhung load 190 lb., input HP 1/4, gear ratio 43: 1, full load Amps 4.1, insulation Class b, enclosure ODP, thermal protection none, max. Ambient Temp. 40 Degrees C, rotation reversible, mounting all position, motor Type split-phase, motor frame 48, Length less shaft 9-5/8", Keyway size #605 Woodruff key, bearings porous Bronze sleeve on case, ball on motor, lubrication grease filled, finish unpainted, housing die cast zinc, gear case material die cast zinc, gears phenolic/steel, gear material steel/phenolic, seals lip Type on input and output shaft, standards RU/CSA, RPM range 31 to 50
