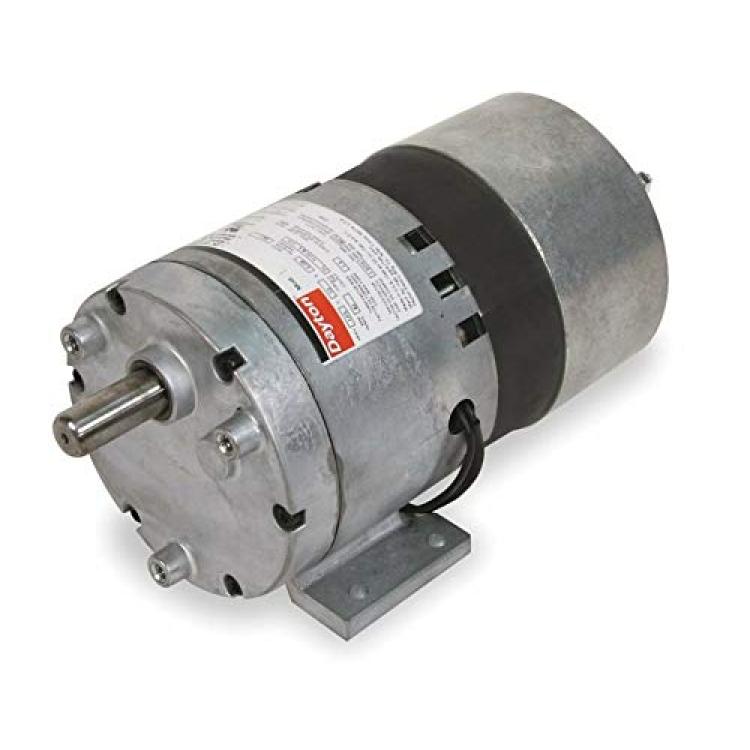

Dayton 1LPN2 AC Parallel Shaft Gear Motor, Degrees_Fahrenheit, to Volts, Amps, (
Product Code: HSM14064
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
Description

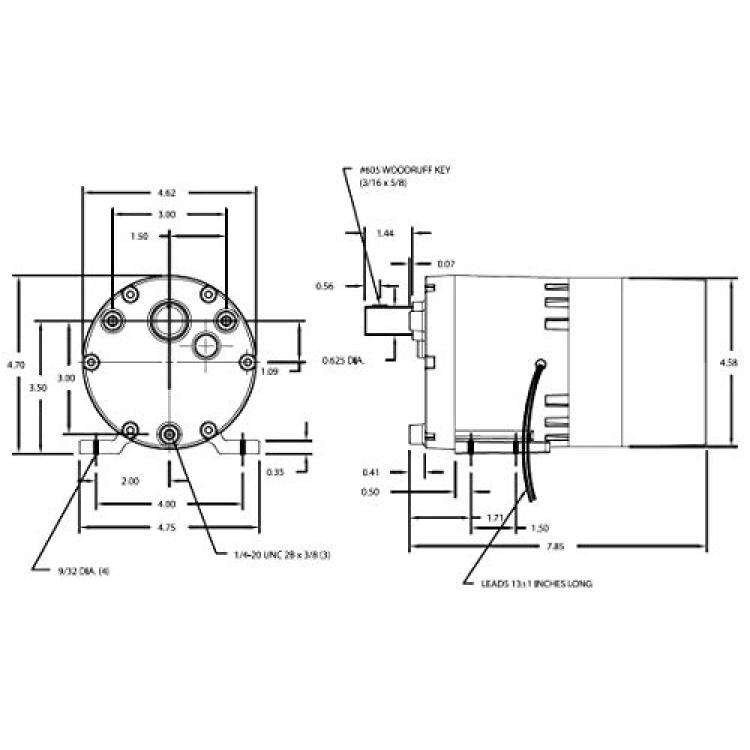

AC gear motor, voltage 115VAC, phase 1, Hz 60, shaft orientation parallel, reversible shaft output no, shaft single output, Nameplate RPM 13, max. Torque 113 in.-Lb., overhung load 150 lb., input HP 1/10, gear ratio 128: 1, full load Amps 2.6, insulation Class b, enclosure open, thermal protection none, max. Ambient Temp. 40 Degrees C, rotation CW, mounting all position, motor Type shaded pole, Length less shaft 7-7/8", Keyway size #605 Woodruff key, bearings porous Bronze sleeve on case, ball on motor, lubrication grease filled, finish unpainted, housing die cast zinc, gear case material die cast zinc, gears acetyl/steel, gear material acetyl/steel, seals lip Type on output shaft, standards RU/CSA, RPM range 0 to 15
