ICQUANZX DC Worm Gear Motor 12V 16r High Torque Turbine Electric Gearbox Motor Self-locking Reversed Mini Engine Geared Motor for DIY Robot Door Lock Curtain Machine (12V)
Availability: In Stock
About this product

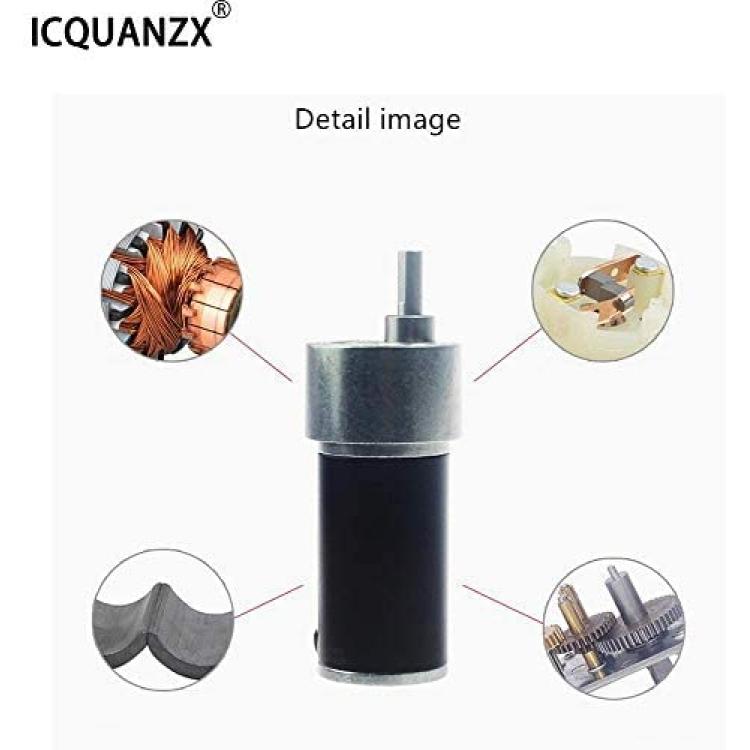

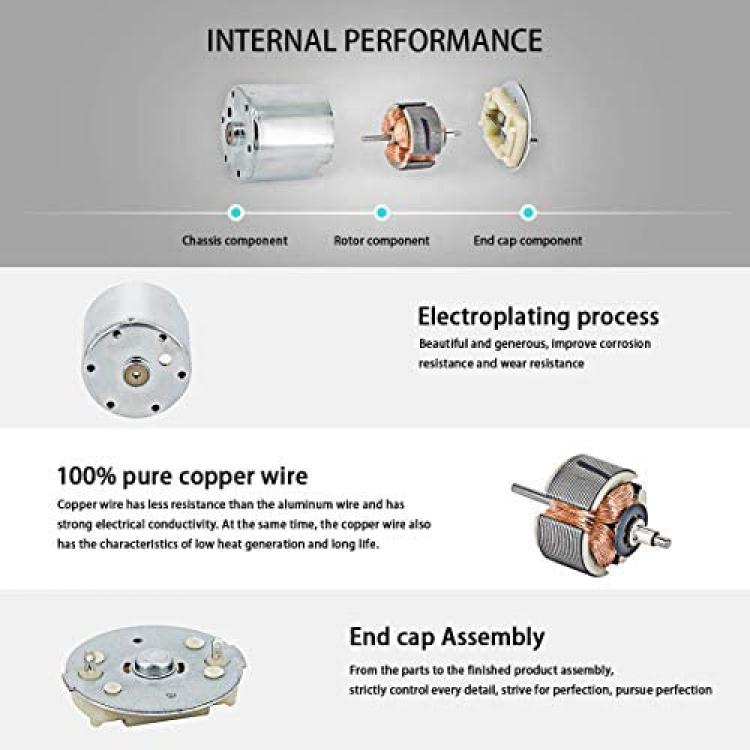

*Long carbon brush high life, high precision gear design, small size, high torque, low noise, high efficiency.
*This type is miniature High Torque Electric Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive andnegative be changed.
*Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock.
*The reducer output shaft arranged vertically with the motor shaft, whole motor output is relatively short,can be widely used in various of occasions that require special installation size.
*Application: Boat, Car, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, faucet, safe, wet towel dispenser, vending machines, automatic monitoring and other modern art.
Description
Description:

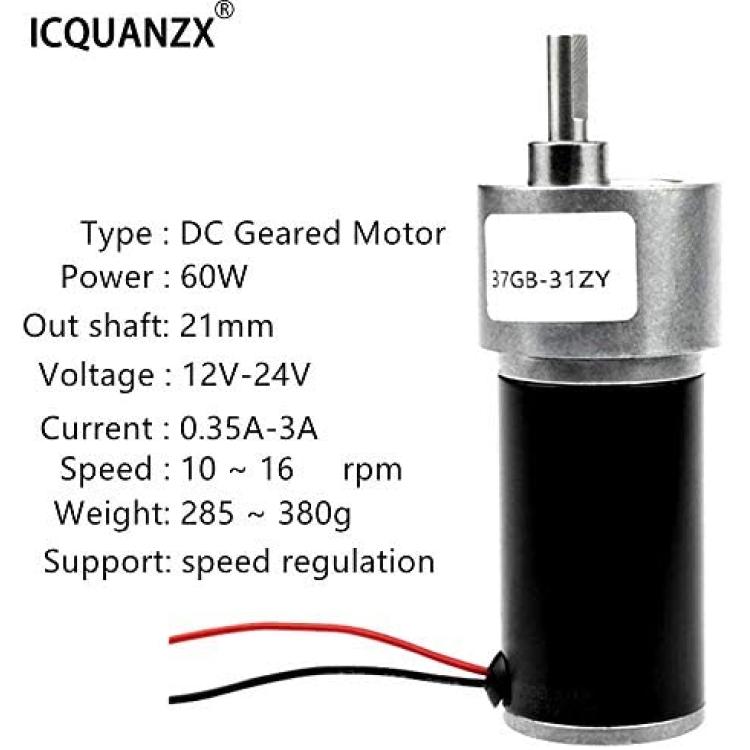

Rated Voltage: DC 12V
Reduction Ratio: 1:505
No-Load Speed: 16RPM
Rated Torque: 15Kg.cm
Rated Current: 370/380mA (Positive Rotation / Negative Rotation)
Error: ±10%

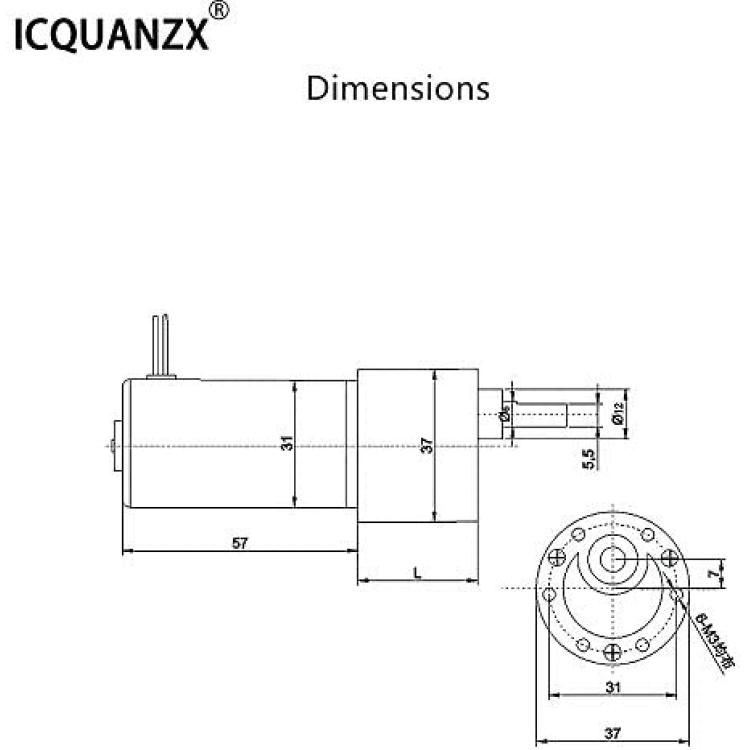

D Shaped Output Shaft Size: 8*15mm (0.31"""" x 0.59"""") (D*L)
Gearbox Size: 58.1 x 40.11 x 36mm (2.29"""" x 1.58"""" x 1.42”) (L*W*H)
Motor Size: 31 x 57.2mm (1.22"""" x 2.25"""") (D*L)
Mounting Hole Size: M4 (not included)
Main Material: Metal, Electronic component
Wire Length : 20cm
Packages:
1 x Worm Gear Motor
