Micro 775 Series 12V/24V DC Motor With Saw Blade Connecting Rod With Seat Mounting Holder Stands Bracket Cutting Machine
Availability: In Stock
About this product

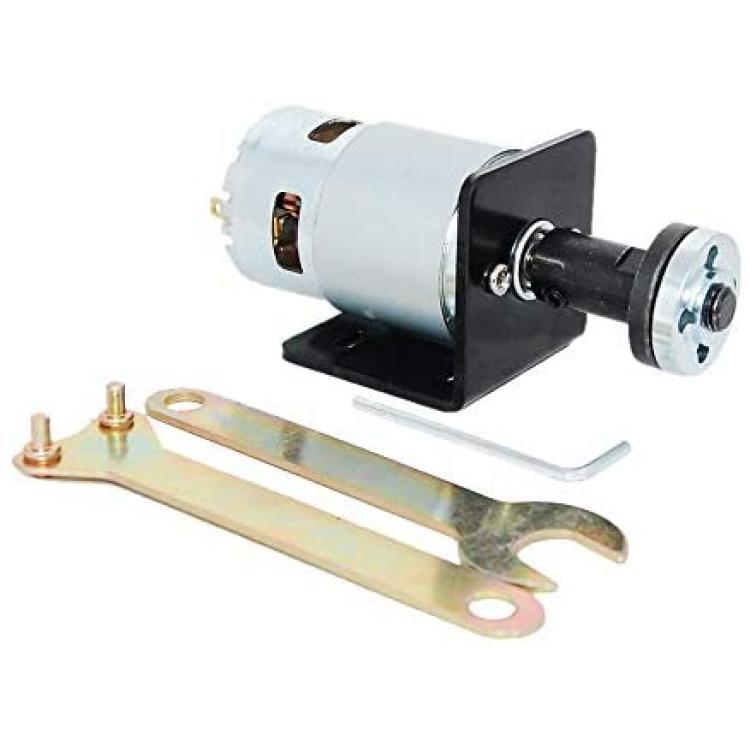

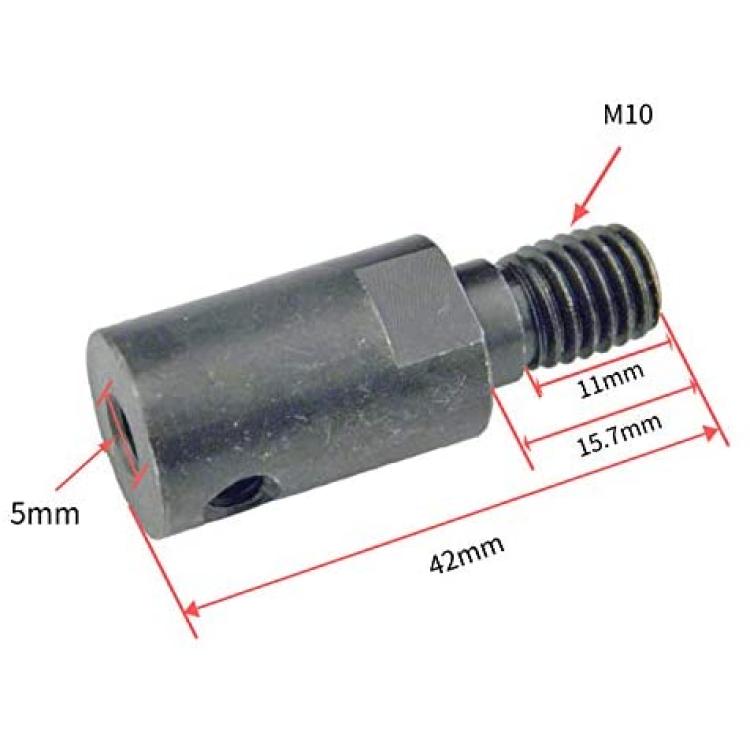

*1.This is a DIY combination of motor bracket and saw blade connecting rod，can be used with a saw blade to become a mini saw.
*2.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.
*3.The specification of motor:Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm. The specification of bracket: Length: 50mm,Width: 52mm,Height: 53mm, Mounting hole diameter: 4mm, Thickness of bracket: 3mm.
*4.Application:Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw.
*5.The device is suitable for saw blades with 16 mm mounting holes (inside diameter).
Description
Product description:
1.This is a DIY combination of motor bracket and saw blade connecting rod?can be used with a saw blade to become a mini saw.
2.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.
Features:

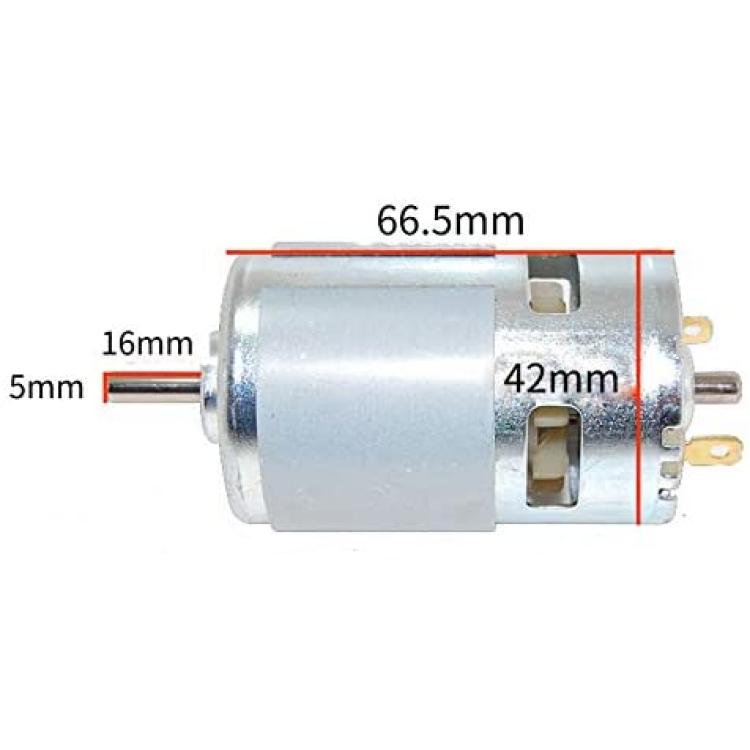

The specification of motor:
1.Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM.
2.Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM.
3.Starting current: 4-5A.
4.Motor Body Diameter: 42mm,
5.Motor Body Length: 66.5mm,
6.Shaft Length: 16mm,
7.Shaft Diameter: 5mm.

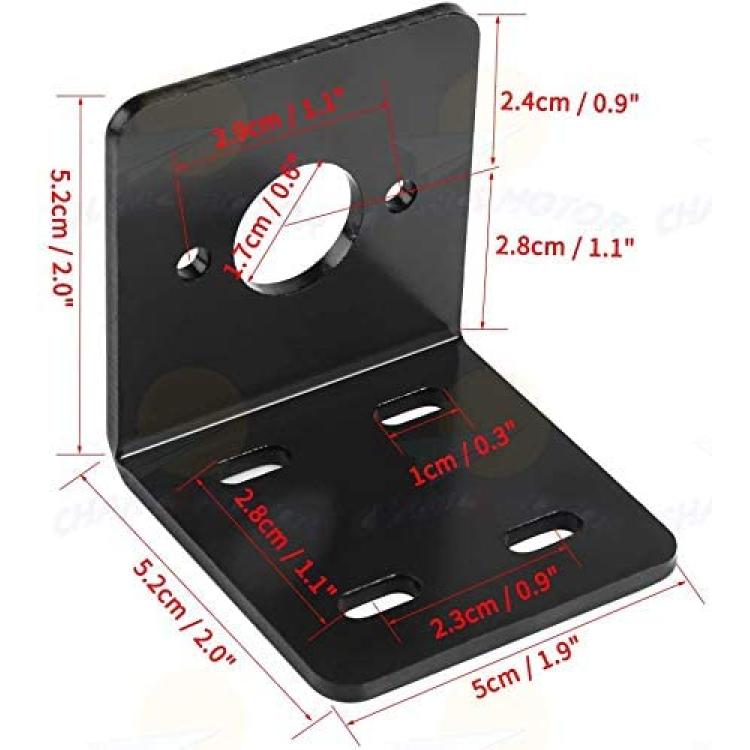

The specification of bracket:
1.Length: 50mm
2.Width: 52mm
3.Height: 53mm
4.Mounting hole diameter: 4mm
5.Thickness of bracket: 3mm.
Application:
Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw.
Package:

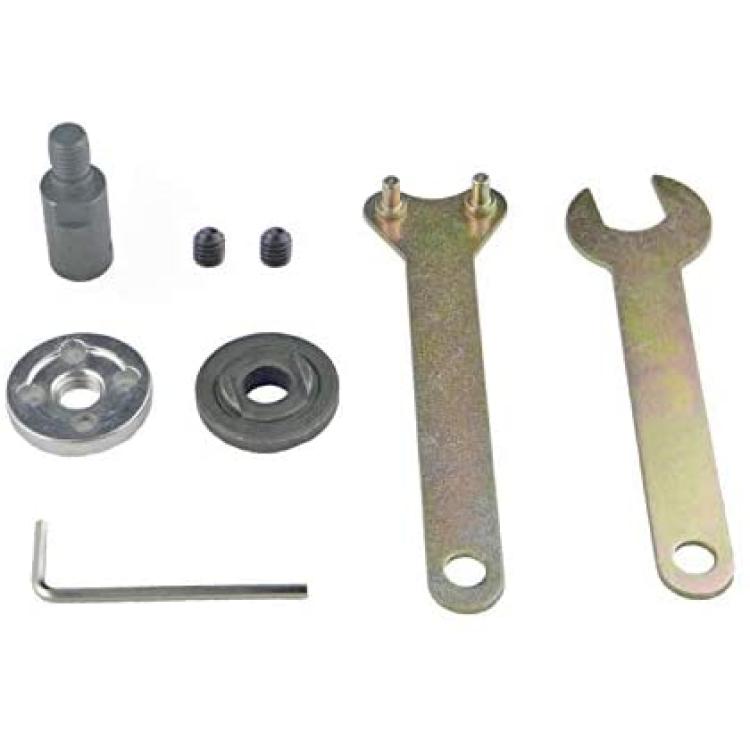

1PCS x DC Motor, 1PCS x Bracket, 1PCS x Saw Blade Connecting Rod, 2PCS x Screws, 2PCS x Matching Hardware Tools.
