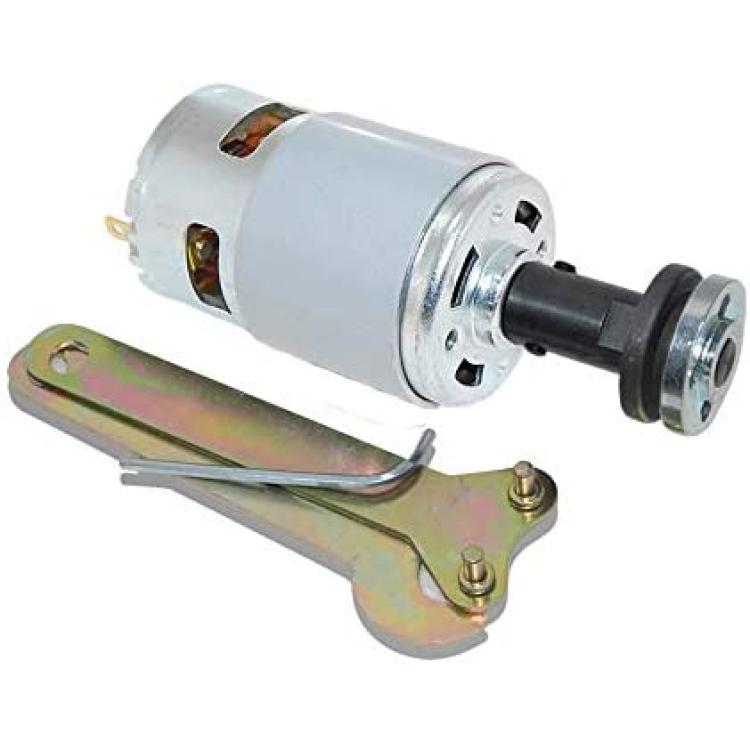

775 DC Motor 12V/24V Gear Motor Double Ball Bearing Large Torque With M10 Saw Balde Connecting Rod for DIY Parts
Availability: In Stock
About this product
*1.This is a DIY combination of motor and saw balde connecting rod， can be used with a saw blade to become a mini saw.
*2.Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm.
*3.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.
*4.Application:Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw.
*5. The device is suitable for saw blades with 16 mm mounting holes (inside diameter).
Description
Product description:
1.This is a DIY combination of motor and saw balde connecting rod?can be used with a saw blade to become a mini saw. The device is suitable for saw blades with 16 mm mounting holes (inside diameter).
2.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.
Features:
1.Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM.
2.Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM.
3.Starting current: 4-5A.
4.Motor Body Diameter: 42mm,
5.Motor Body Length: 66.5mm,
6.Shaft Length: 16mm,
7.Shaft Diameter: 5mm.
Application:
Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw.
Package:
1PCS x DC Motor, 1PCS x Saw Blade Connecting Rod, 2PCS x Screws, 2PCS x Matching Hardware Tools.
