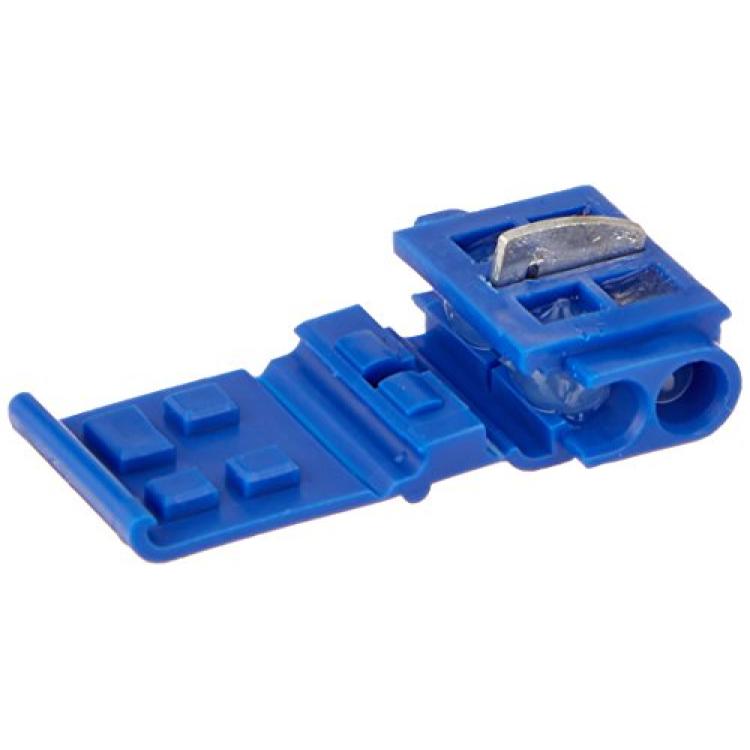

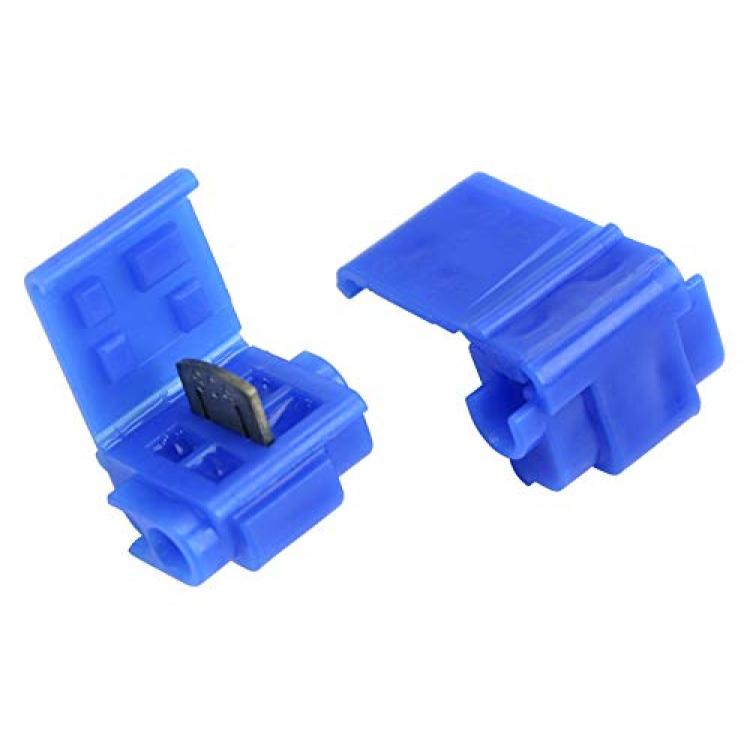

3M Scotchlok Electrical IDC 804-POUCH, Blue, 18-16 AWG(solid/stranded), 14 AWG (stranded), 25 per pouch
Availability: Pre-Order, Inquiry Price
About this product
*Use this blue connector without cutting to electrically join a tap in the middle of a length of wire while adding insulation
*Easily shows the appropriate wire size via its color
*Wiring for vehicles such as cars, boats and RVs can use this connectors, as well as wiring for control circuits, fixtures, appliances and signal and PA systems
*Sized to work with solid or stranded wire in sizes 18 to 16 AWG and with stranded wire in size 14 AWG
*The element is constructed of brass to conduct electricity well and plated in tin to prevent corrosion
Description

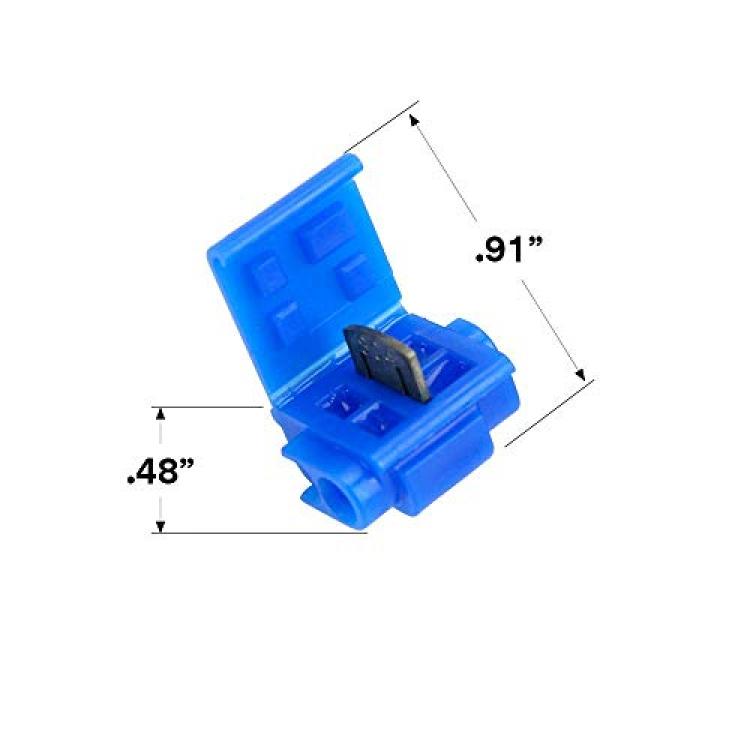

3M Scotchlok 804 IDC, Run or Tap Electrical Connector electrically connects a tap wire to a run (through) wire while insulating the connection. The connector insulation is manufactured from polypropylene and used to electrically tap into a wire in mid-span without cutting or stripping the wire. It is 600V-rated and withstands temperatures of 167 degrees F (75 degrees C). RoHS 2011/65/EU Compliant: Yes, Voltage Application: Low Voltage. Package dimension: Length: 10.4 inches, Width: 10.4 inches, Height: 6.8 inches, Gross Weight: 1.9197 lbs., New Weight: 1.475 lbs.
