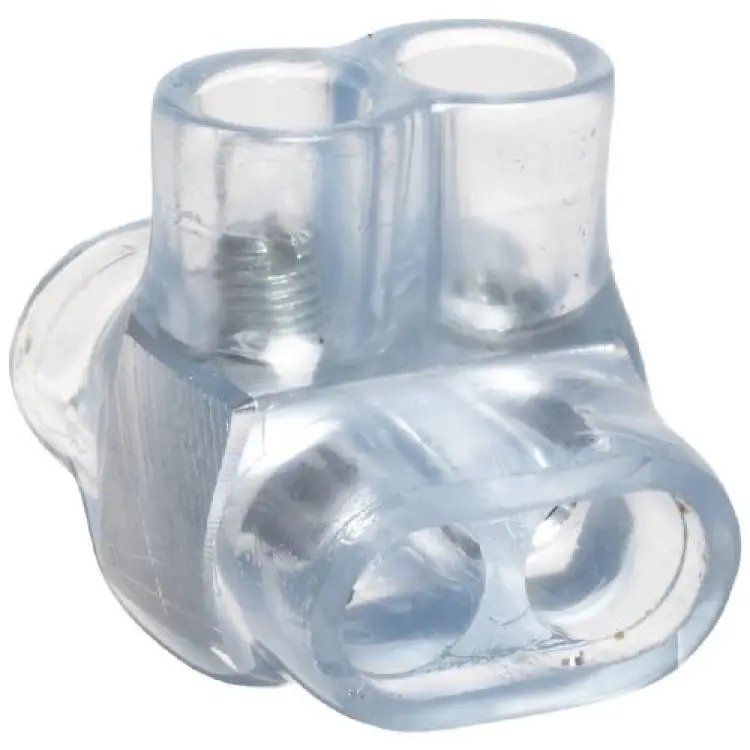

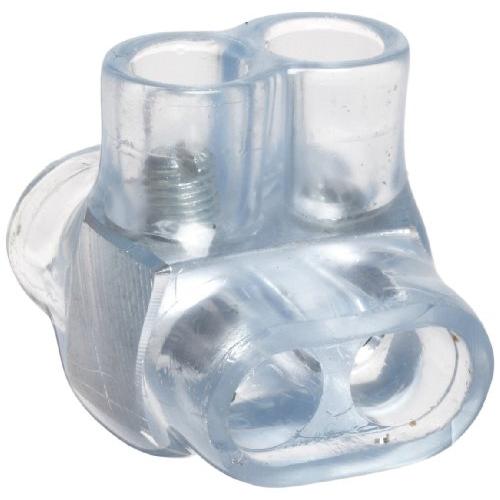

Morris Products 97312 Multi-Cable Connector, Insulated, Dual Entry, Clear, 2 Ports, 4 - 14 Wire Range
Availability: Pre-Order, Inquiry Price
About this product
*Clear Multi-Cable Insulated Electrical Power Connectors Dual Side Entry - With our Clear Multi Conductor Insulated Connector, youll see your termination is right every time
*Clear Insulation allows Visual Confirmation that conductor is properly inserted
*Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
*Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
*Pre-filled with Oxide Inhibitor
Description
Easy Re-Entry for Changes, Inspection or Troubleshooting. Removable Plugs marked with wire size provide easy access for installation.. Temperature range of –49°F to 194°F (–45° to 90°C). Wire Entry from Either Side of Clear Insulated Connector. Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time. One Wire Per Terminal. PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field. ANSI C119.4 & cULus 486b Listed. 600 Volt. Rated for use with 194°F(90°C) Cables.
