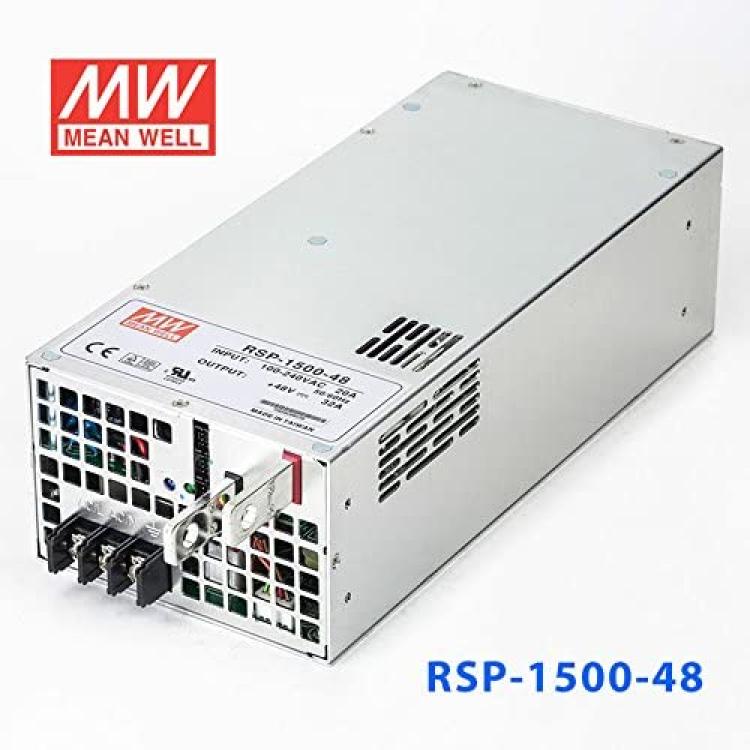

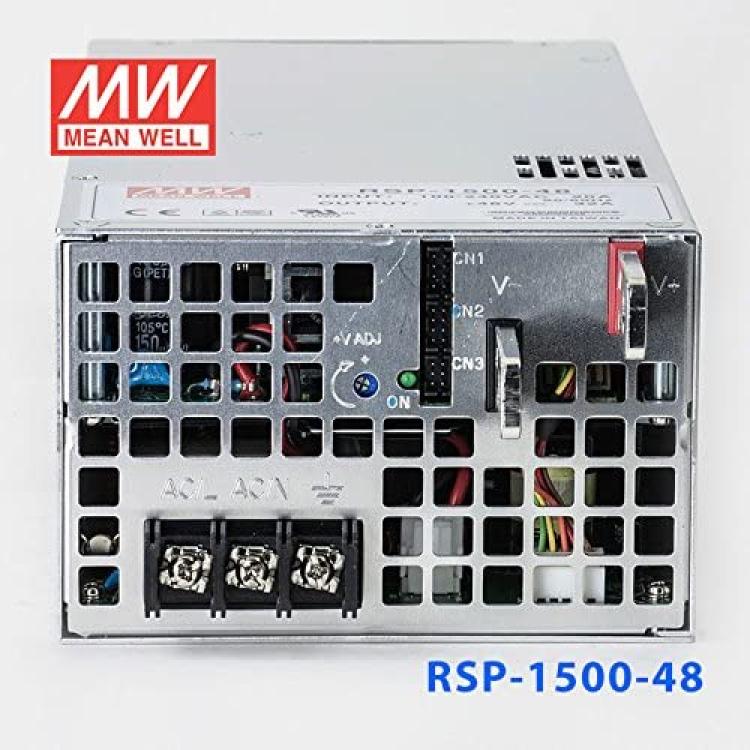

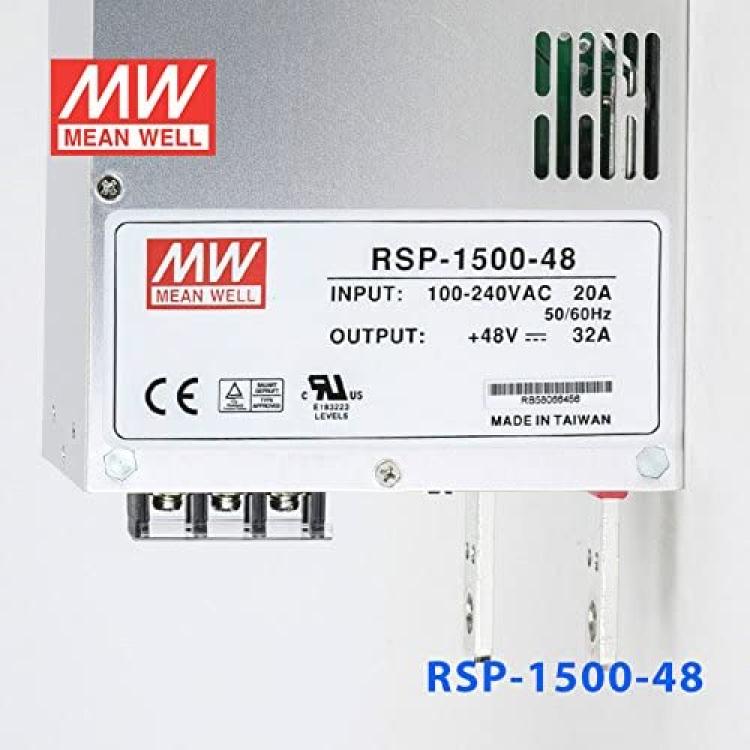

Meanwell RSP-1500-48 Power Supply - 1500W 48V 32A - Parallel

Features:

Universal AC input / Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC fan

Vo can be trimmed by external resistor or external control signal

Built-in current sharing

Built-in remote sense and ON/OFF control

Built-in auxiliary power

Alarm signal output

5 years warranty

General Specification (Please refer to images below for detailed datasheet)

AC input voltage range:90~264VAC; 127~370VDC

AC inrush current (max.):Cold start, 60A at 230VAC

DC adjustment range:-30%~+10% rated output voltage

Overload protection Range:105%~135%

Overload protection Type:Constant current limiting, shut off after 5 sec., re-power on to recover

Over voltage protection Range:115%~140%

Over voltage protection Type:Shut down O/P voltage, re-power on to recover

Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC

Working temperature:-20~+70°C

Safety standards:UL60950-1, TUV EN60950-1 approved

EMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

Connection Input:3P/13mm pitch terminal block with cover

Connection Output:Copper pillars

Dimension (LxWxH):278x127x83.5

Case No.:943A

Packing:3.0kg; 4pcs / 13kg / 1.19CUFT
