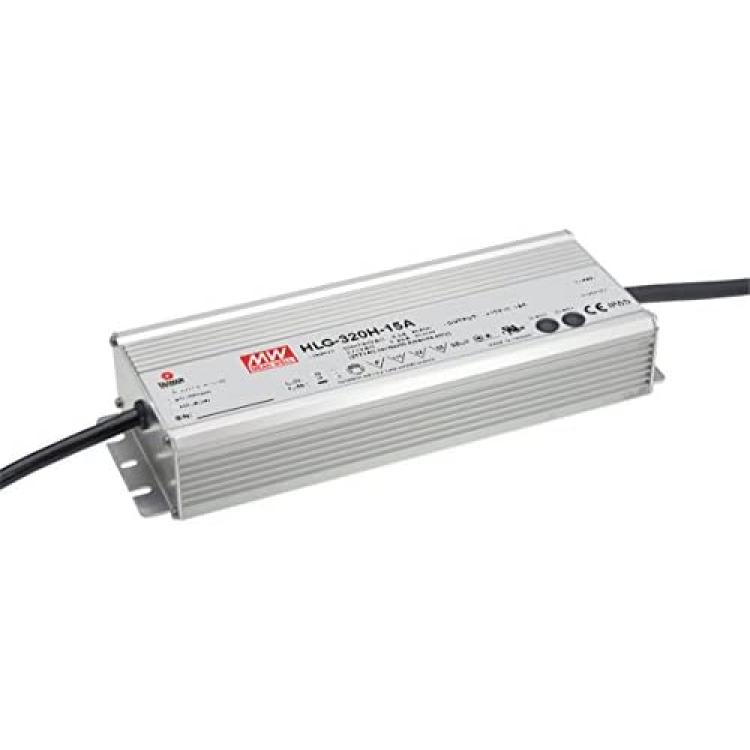

MW Mean Well HLG-320H-36B 36V 8.9A 320.4W Single Output Switching LED Power Supply with PFC
Availability: In Stock
Description
Features
Universal AC input (up to 305VAC) / Full range
Protections: Short circuit / Over current / Over voltage / Over temp.
Built-in active PFC function
High efficiency up to 96%
IP67 / IP65 design for indoor or outdoor installations (except for HLG-320H C-Type)
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for LED lighting and street lighting applications
Meet 4kV surge immunity level (IEC61000-4-5)
No load power consumption <0.5W at remote off (HLG-600H)
Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires
LED indicator for power on (HLG-600H A-Type only)
Multiple models for choice:
A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer

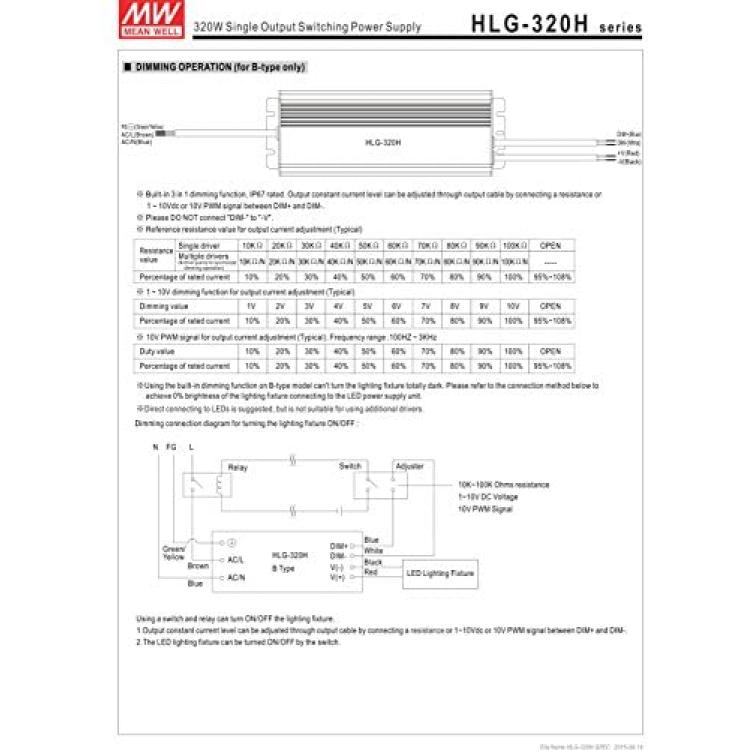

B-Type: IP67 rated and built-in 3 in 1 dimming function
(1~10VDC*, PWM signal, or resistance) (*: 0~10VDC for HLG-600H)
C-Type: Terminal block for I/O connection (HLG-320H only) Blank-Type: IP67 rated. Cable for I/O connection (HLG-320H only)
D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (HLG-320H only)
7 years warranty
