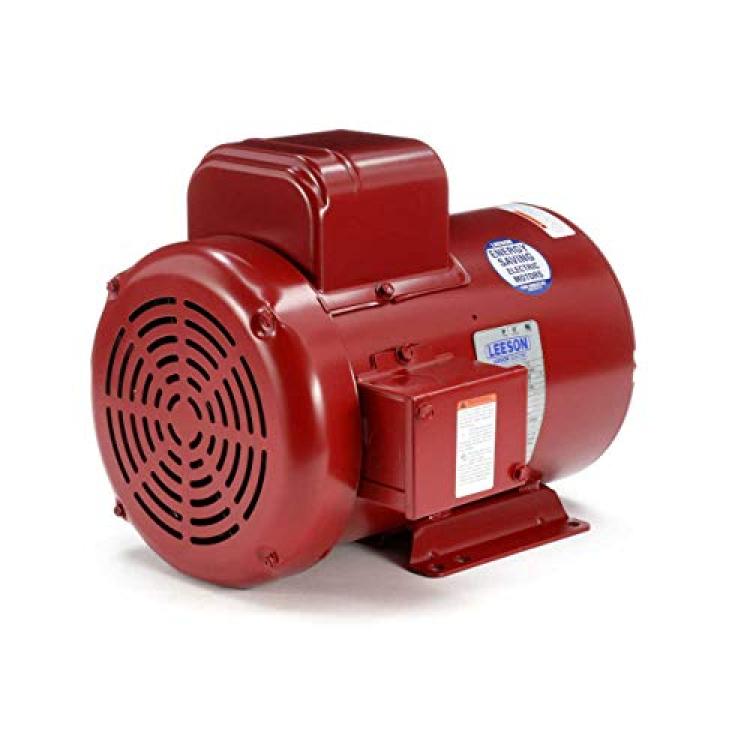

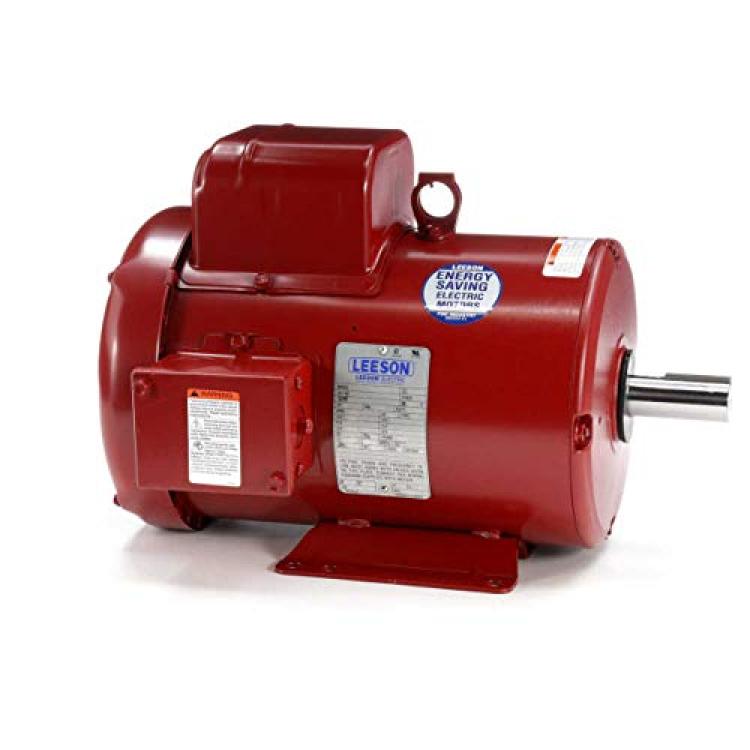

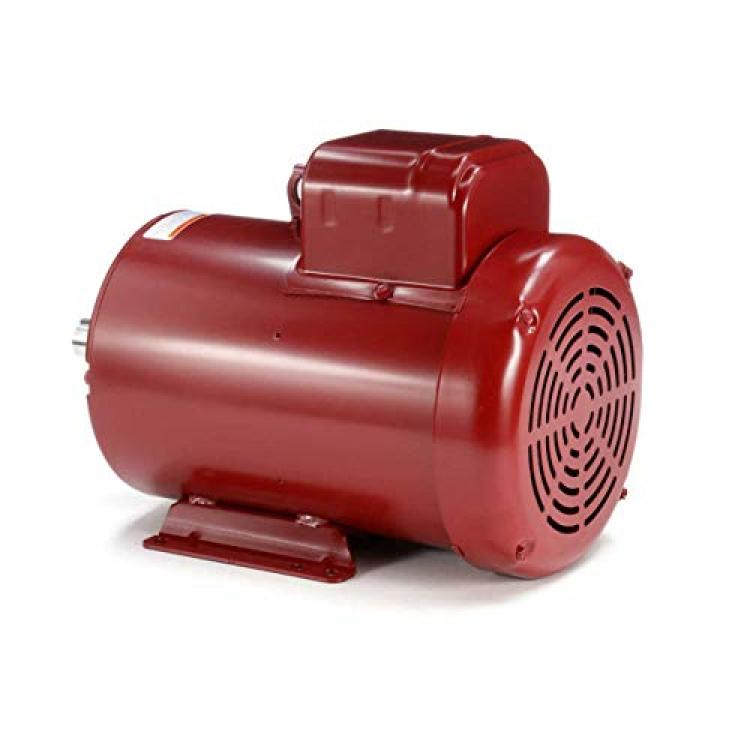

Leeson Farm Duty Electric Motor - 3.0 HP, 1,740 RPM, 230 Volts, Single Phase, Model Number P184C17FB13

About this product

*Price For: Each Frame Material: Rolled steel Voltage Compatibility: 230, 240, 115/230, 120/240 Shaft Dia.: 1-1/8" Motor Application: Farm Duty RPM Range: 1701-1800 Hz: 60 Motor Mounting Type: Rigid Base Motor Thermal Protection: Manual Phase: 1 Motor Shaft Rotation: CWSE Ins. Class: F Motor Service Factor: 1.15 Motor Sub Application: High Torque Duty: Continuous

*Shaft Length: 2-3/4" Standards: UL (E49747), CSA (LR2025) Motor Efficiency Group: Standard Efficient Nameplate RPM: 1770 HP: 3 Full Load Amps: 19.0 Motor Mounting Position: Horizontal Nominal Efficiency: 75.5% Frame: 184 Voltage: 230 Max. Ambient Temperature: 40 Degrees C Finish: Enamel Motor Bearings: Ball Length Less Shaft: 13-11/16" Overall Length: 16-7/16"

*Motor Frame Material: Rolled Steel Item: High Torque Farm Duty Motor Motor Enclosure Design: Totally Enclosed Fan-Cooled Motor Shaft Design: Keyed Item - Farm Duty Motors: High Torque Farm Duty Motor Motor Design: Capacitor-Start Country of Origin (subject to change): Mexico
