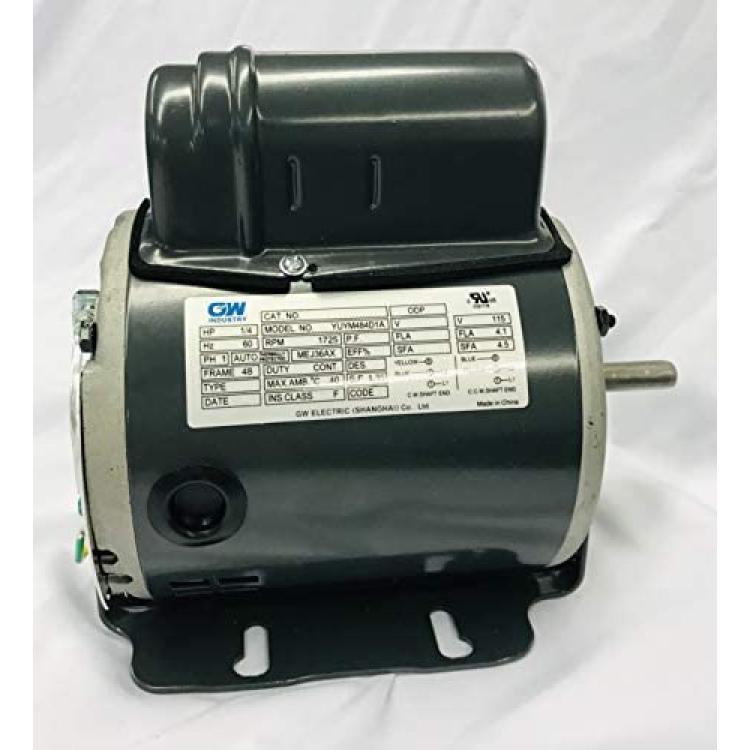

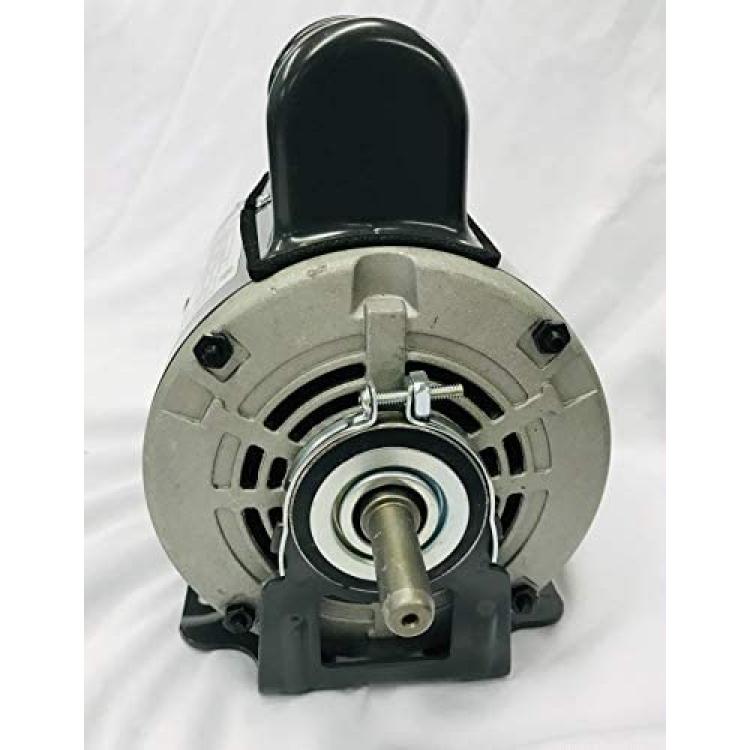

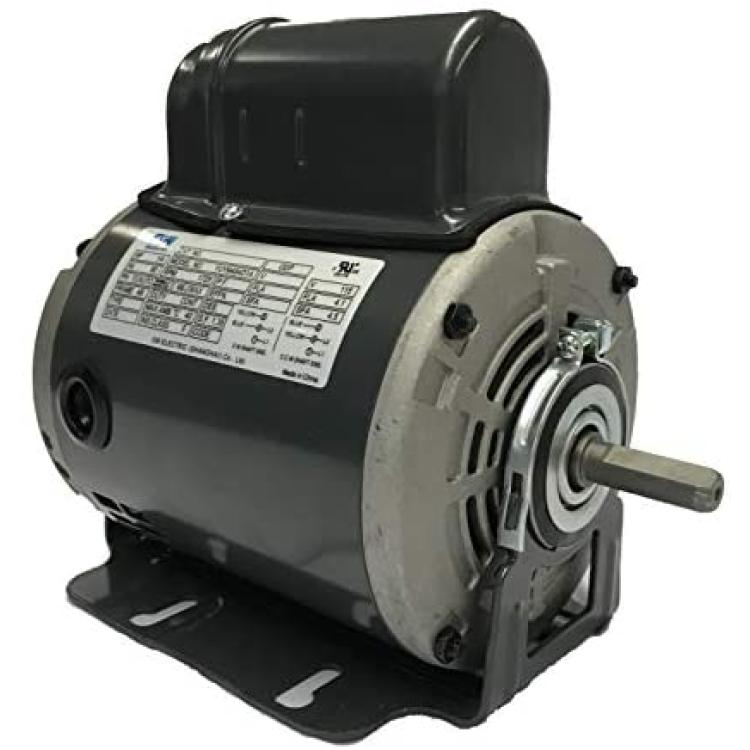

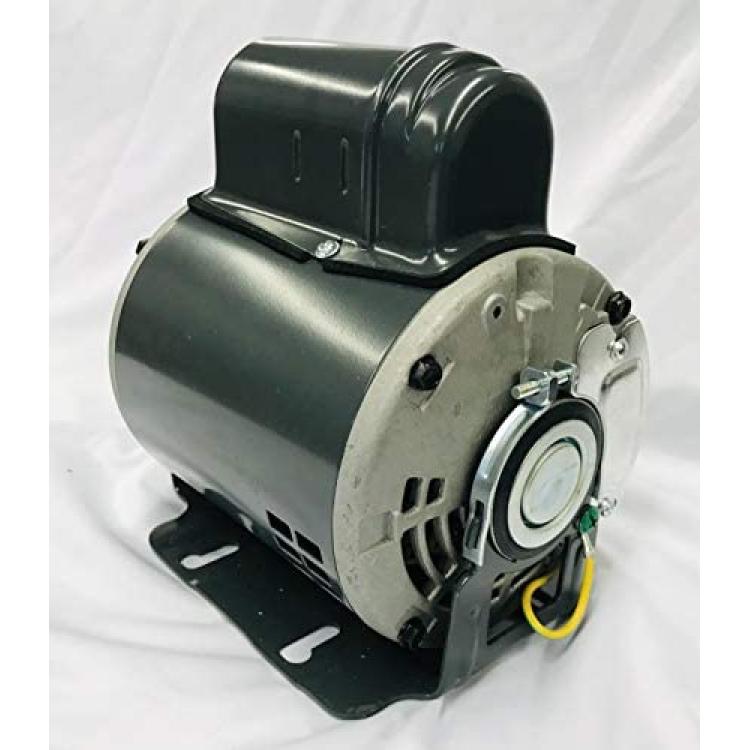

GW 1/4 HP Belt Drive Fan Motor, 115V, 48 Frame, Split Phase Start Capacitor Run Electric Motor, 1725RPM, SF 1.35, SFA 4.5A, ODP Enclosure, Resilient Base, Auto Overload Protector
About this product
*1/4HP, Single Phase 115V, 60Hz, 1725RPM, SF 1.35, SFA 4.5A
*Resilient Cradle Base, Flat Shaft 0.5” diameter/0.453”, 1.5” length/1.25”
*Nema 48 Frame
*Resistor Start (Split Phase), Capacitor Run
*Auto Overload Protection. UL Listed. One Year Manufacture Warranty
Description
. 1/4HP
. 1725RPM
. 48 Frame with resilient base
. ODP
. 115V
. FLA 4.1A, SFA 4.5A
. Auto Thermo Protector
