18awg Electronic Wire Kit,Flexible Silicone Wire 6 Color 18 Gauge Hook Up Wire(6 different colored 13 Feet spools) 600V Stranded Wire automotive wiring
Availability: In Stock
About this product
*Due to the Silicone insulation and fine stranded core, The wire is very flexible easy to strip and solders . Well suited for applications where the wire will be flexed, like test cables. Could be terminated with pins and heat shrink sleeves for breadboard jumper wires.
*18 Gauge silicone wire - super flexible 150 strands of 0.08 mm Tinned copper wire - protecting them from corrosion and making it easier to solder.Highly efficient - Super low impedance .
*High Temperature Resistant Silicone Wire.Temp: -60 degree celsius +200 degree celsius ,Low temperature resistance,in extreme cold -60 degree celsius
*Conductor: High-purity oxygen-free Tinned Copper,Nominal Voltage 600V；Bear Current 7.5A

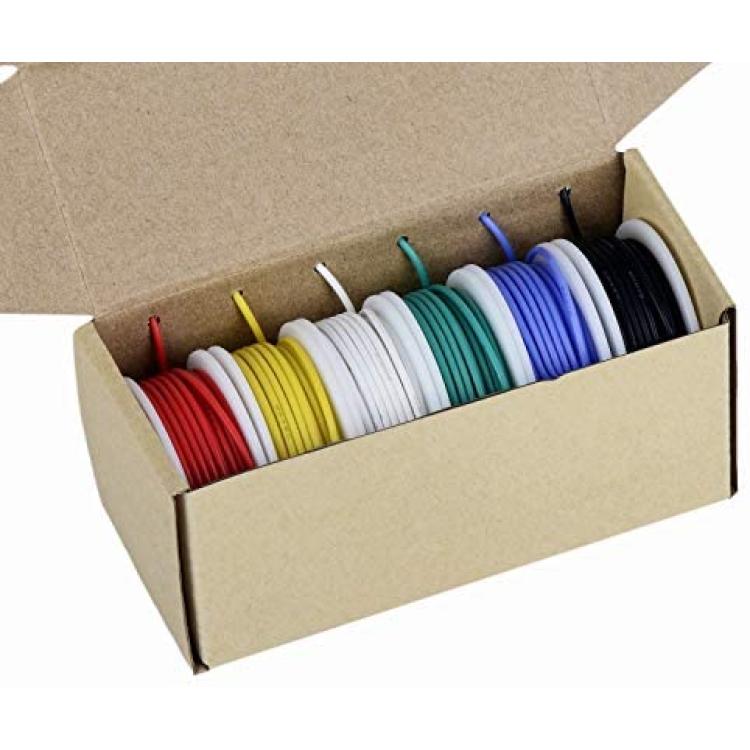

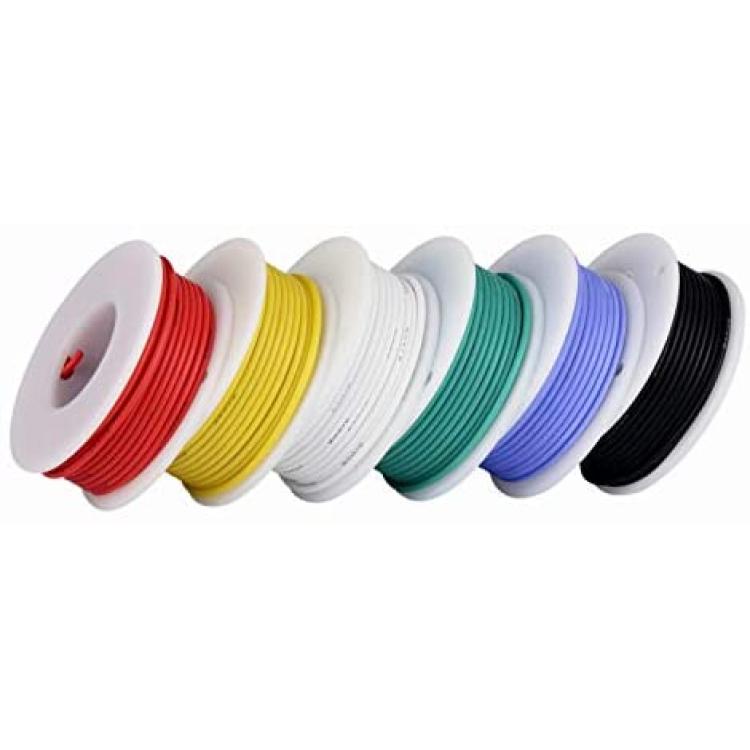

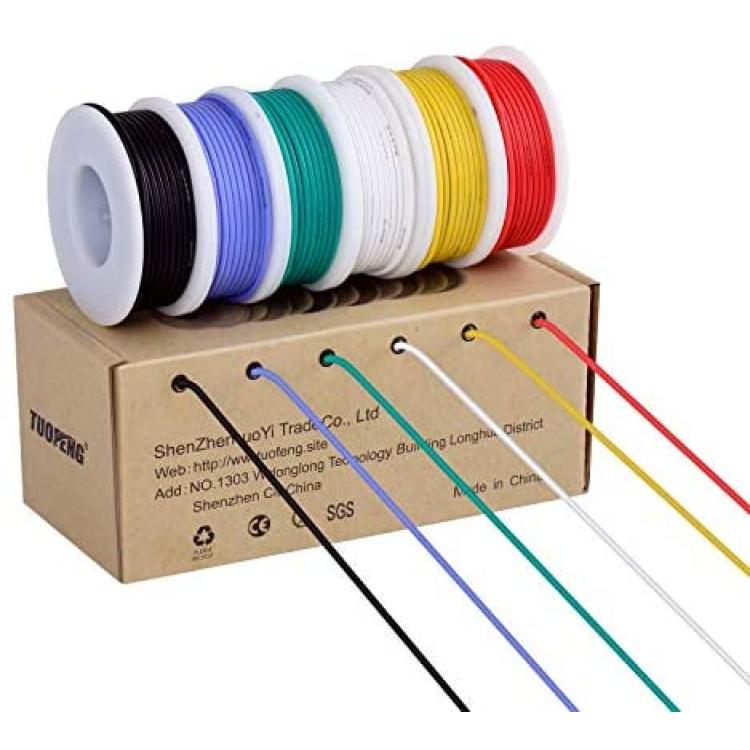

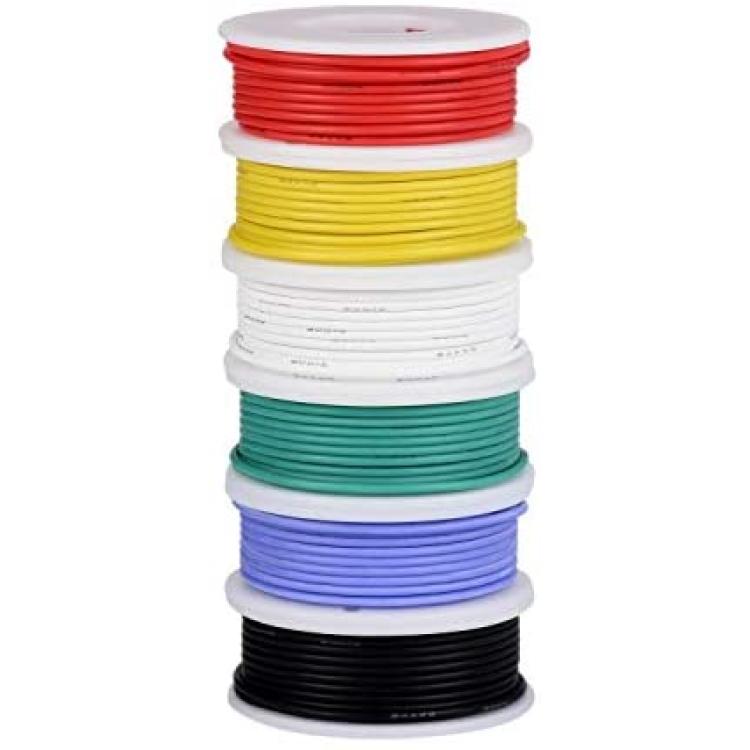

*(6 different colored 4 Meters /13.2 Feet spools) colors:red,yellow,white,green,blue,black
Description
- Ultra Flexible, Low Resistance, Strand Wire,High Performance Pure Silicone Wire

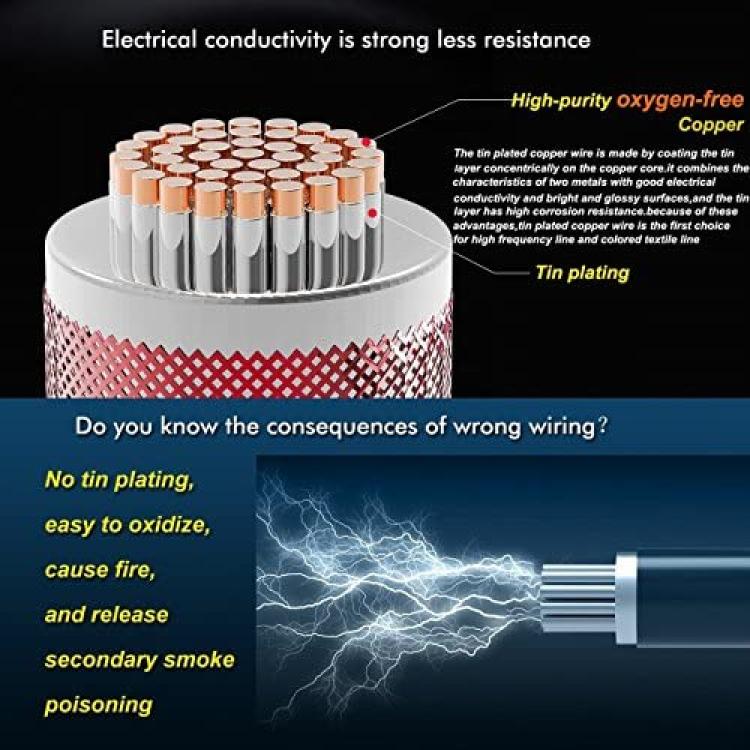

- High-quality tinned copper inner core, can maintained copper wire for a long time does not oxidize .protecting them from corrosion and making it easier to solder.
- Insulating silicon rubber, color: white, red, black, blue, green, yellow,
- Scope: Applicable to all kinds of electrical and electronic, industrial electronics, model aircraft, Cars, ship model, batteries, motors and other links insulation. electronic ceramics,heating parts,car lighting,ballast etc.
Nominal Voltage: 600V
Testing Voltage:2000V
Temperature Range:-60 Deg C to 200 Deg C
Conductor: Tinned Copper
OD Tolerance: ±0.1mm
Insulator: Silicone
Conductor?
(1) Gauge:18AWG
(2) Copper Number/Wire Diameter:150/0.08mm
(3) Diameter: ?1.19mm
Insulator:
(1) Jacket Thick:0.55mm
(2) Over Diameter:2.3mm
Bear Current:7.5A
