HDFury Integral 2 | 4K HDR Splitter | HDMI Audio Extractor | Two Input Sources Support

Function

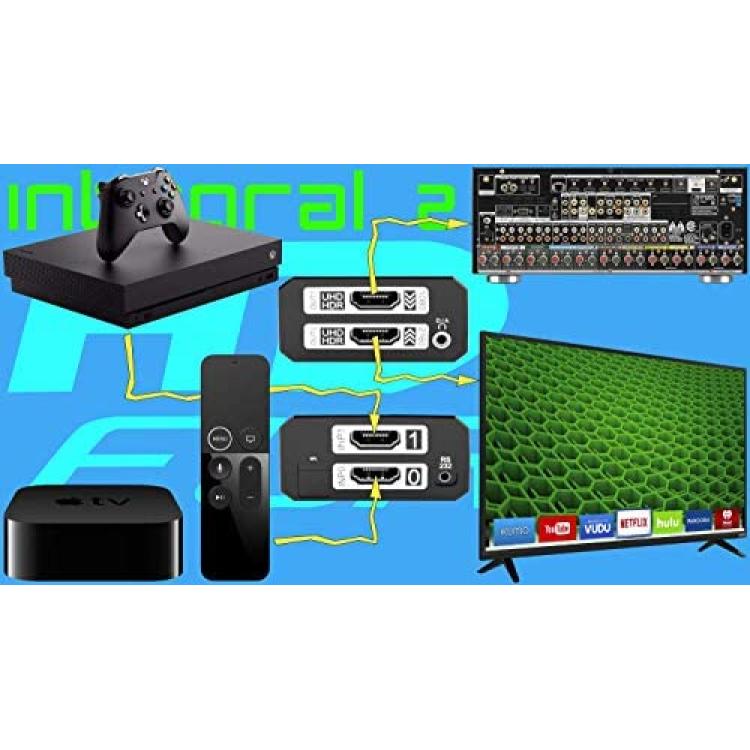

An Integral 2 splits an HDMI AV signal of an input source (it has INP0 and INP1 inputs for two devices) and then passes through the multichannel audio to a legacy 4K HDR incapable AVR or a soundbar (NO??Sonos Arc or other w/ only eARC/ARC port) and the 4K HDR video to a 4K UHD TV or a projector respectively.

AV Splitter

In order to split the AV signal and get the video signal from the OUT0 output* and the audio signal from the OUT1 output* set the SCALE slider to auto scaling and the EDID slider to edid automix mode.

* Select the appropriate input on the AV receiver and TV remote controls.

HDMI Switch

A short press of the INP button switches the active input source (use if both devices are turned on). Turning off one of them might be more convenient.

HPD

A short press of the RST button generates the Hot Plug Detection (use if there is a problem with the identification of input and/or output devices).

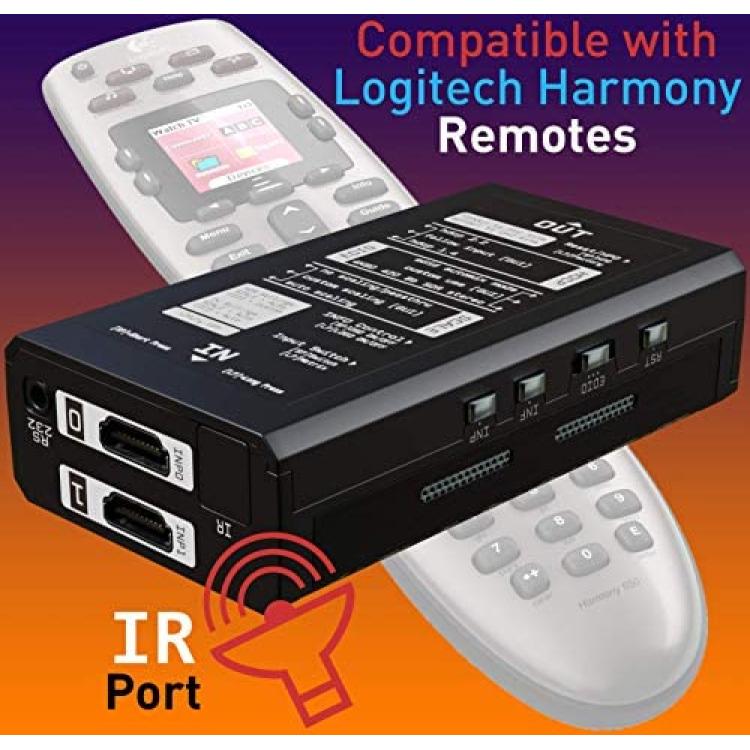

Logitech Harmony Compatibility
