HDMI Matrix Switch 4x2, 4K HDMI Matrix Switcher Splitter 4 in 2 Out Box with EDID Extractor and IR Remote Control Support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, 1080P
About this product
*HDMI Audio Extract and Settable EDID: HDMI Matrix 4x2 with two 3.5mm L/R port and two optical toslink audio output, support LPCM/Dolby/DTS 5.1 channel and smart EDID management.
*Compatibility: Support HDCP 2.2, compatible with HDMI 2.0b. Input support: Computer, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc. Output support: Projector, HDTV etc.
*Enbuer ensures long-time satisfaction of your purchase: Friendly and easy-to-reach customer service to solve your problems timely. If you have any problems, Please contact us we will slove immediately.
Description
4x2 HDMI Martrix Switch

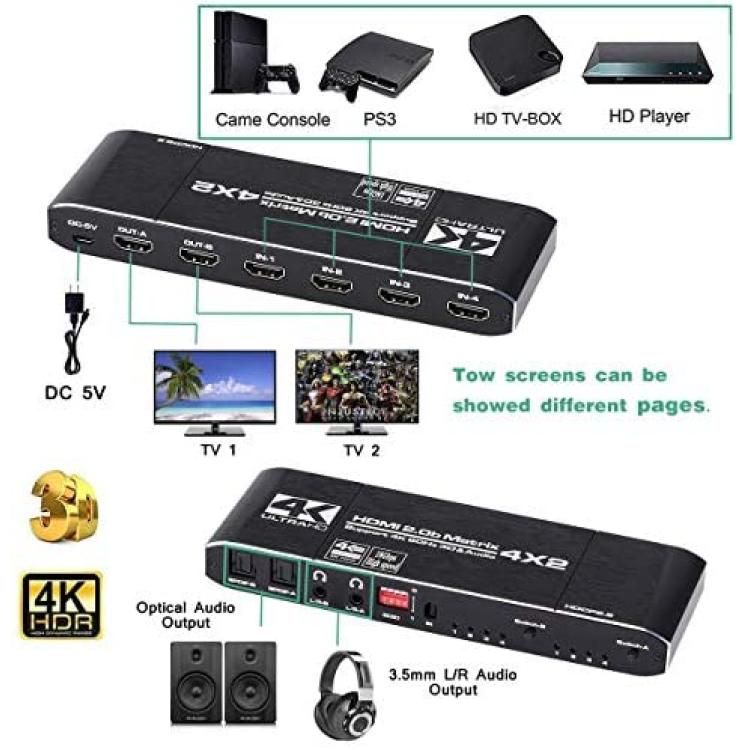

The 4 in 2 Out HDMI Matrix Switch allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. It is suitable for home theater, villa, conference room, shopping mall, video wall, school and corporate training environments etc.
Specifications
- Product Type:HDMI Matrix 4x2.
- Interface Type: 4 HDMI in, 2 HDMI out
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.175kg
Features
- Support HDMI 2.0b HDCP 2.2
- Support 3D video format
- Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit

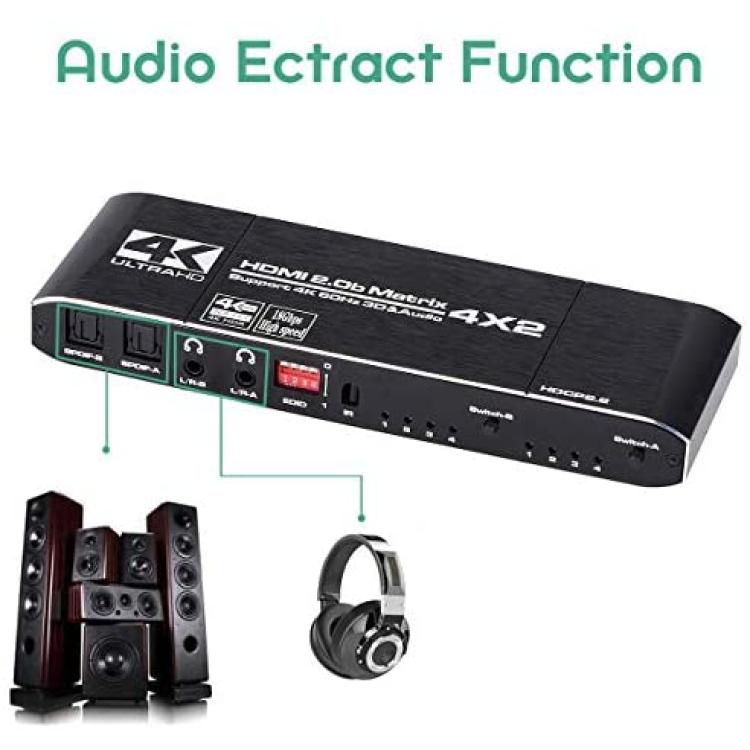

- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4

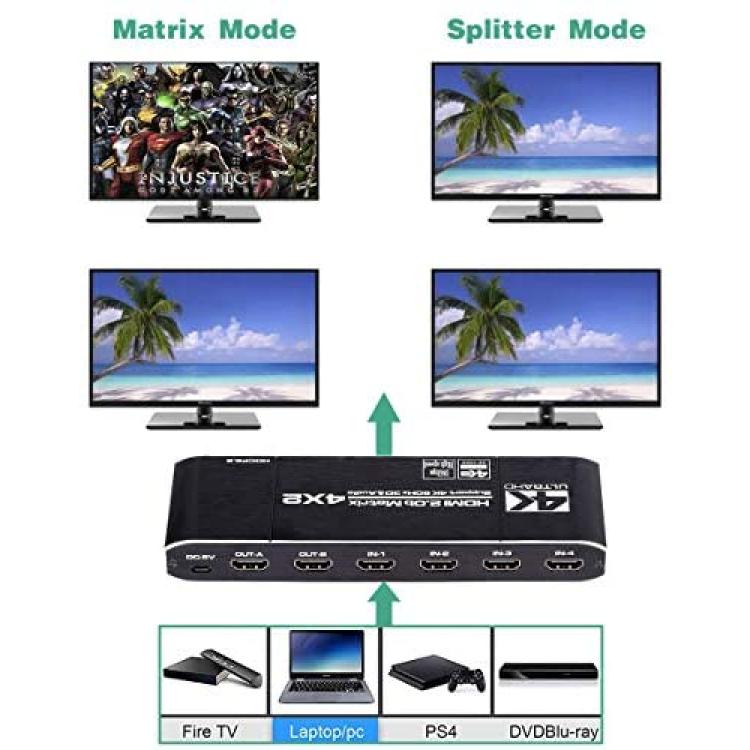

- 4 HDMI inputs switch and split to 2 HDMI displays
- Support LPCM/Dolby/DTS 5 1 audio
Package contents
1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control
1x User Manual
Note:

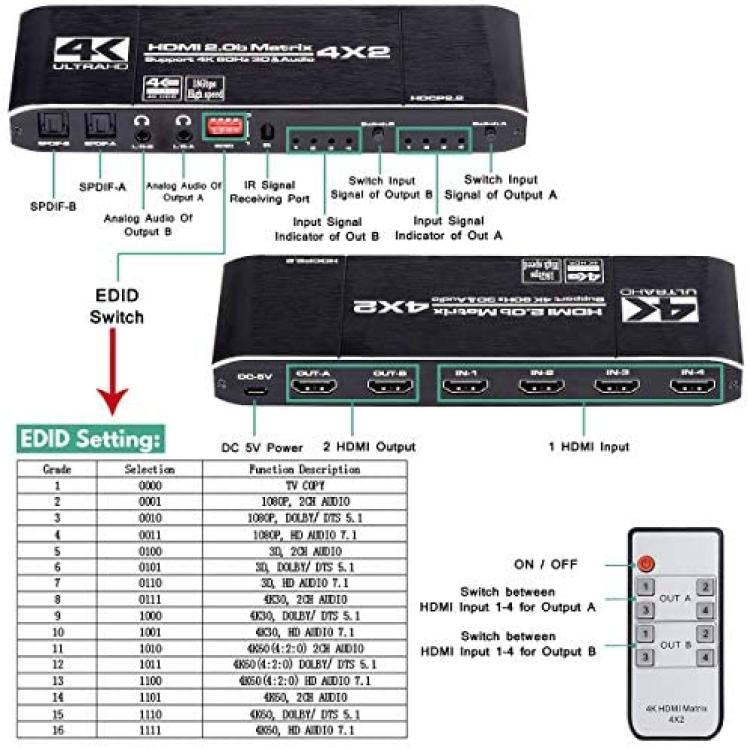

1. EDID the dial switch to dial downward is 1, dial upward is 0.
2. For the EDID setting, it will for Output A. So when you two display needs to be EDID setting, Please set at Right EDID Mode that both Display will shows right.
3. After you had set the EDID, Please restart your HDMI Matrix Switch.
