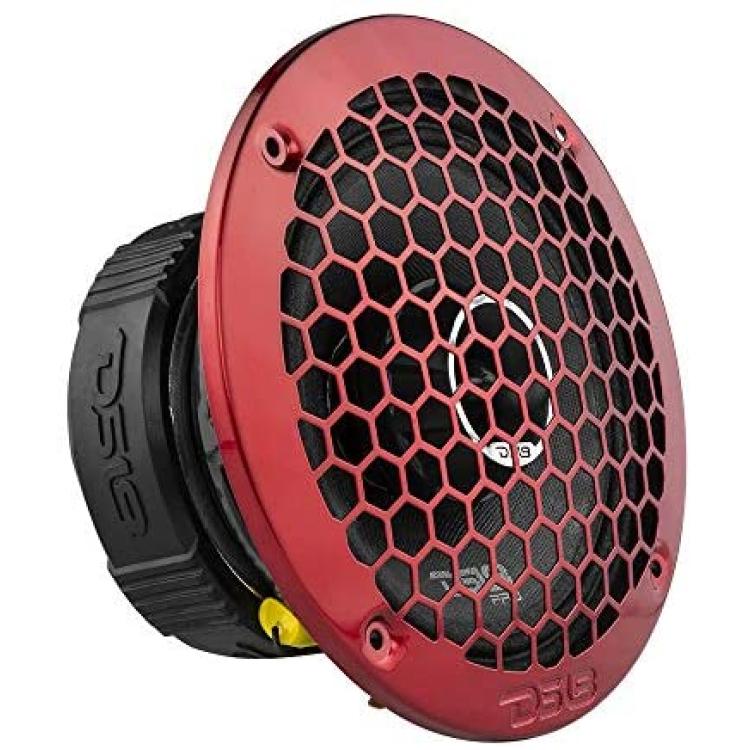

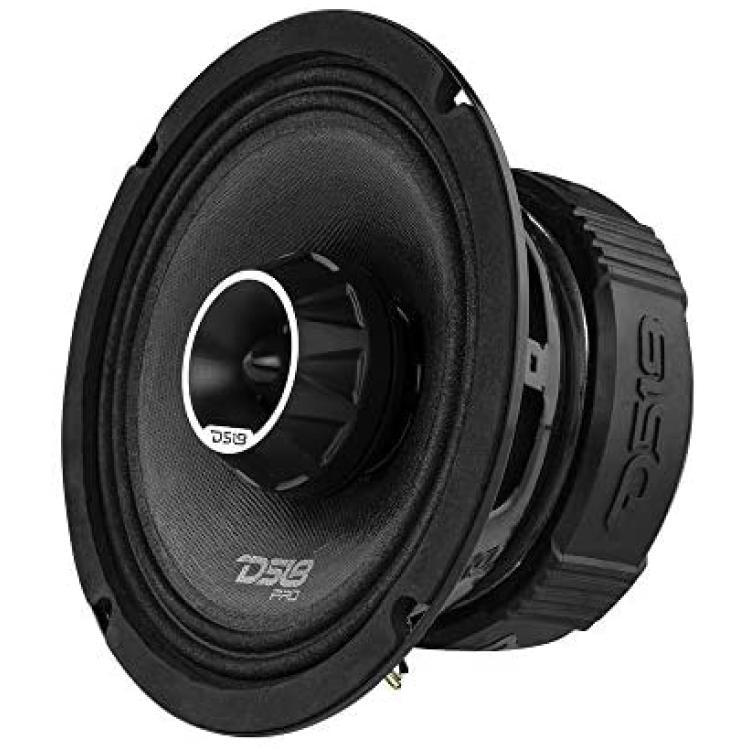

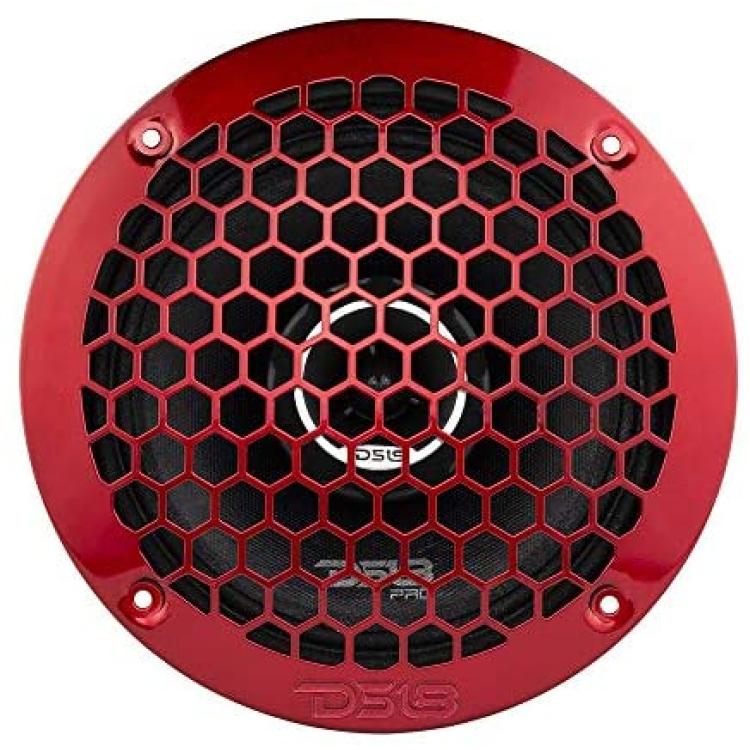

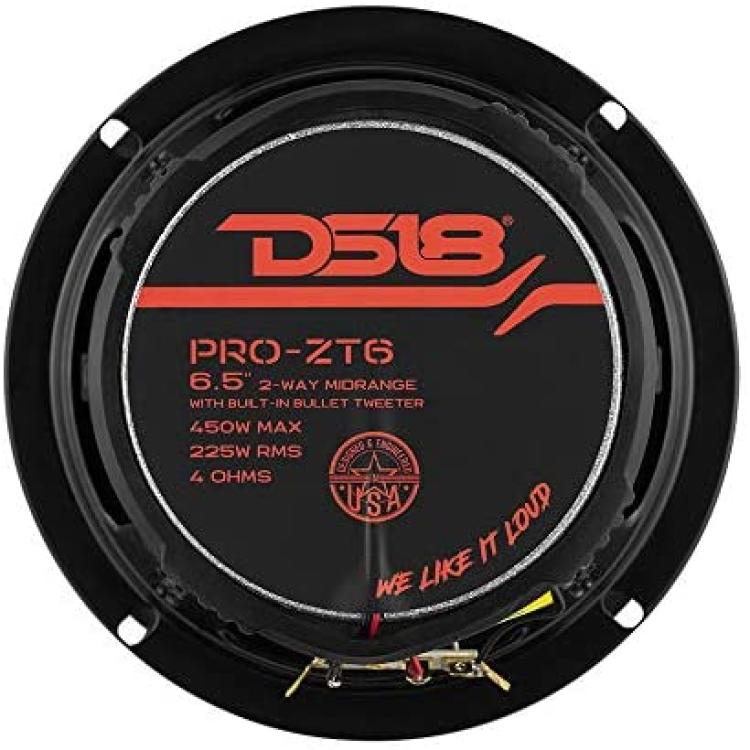

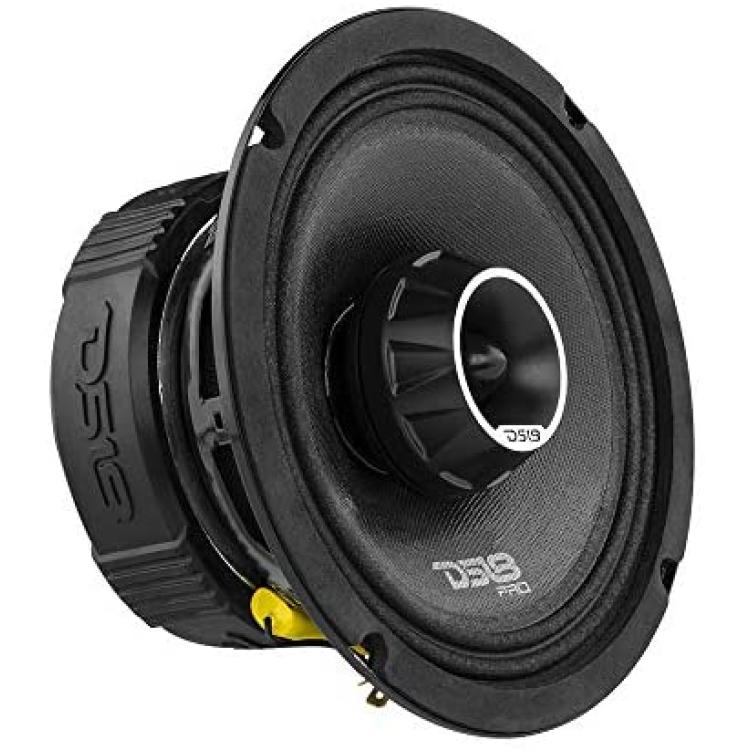

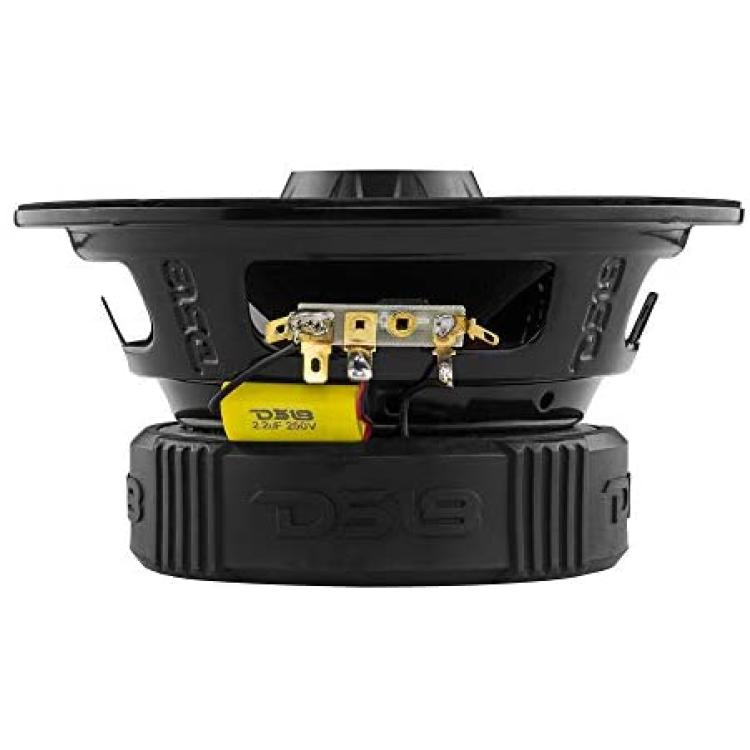

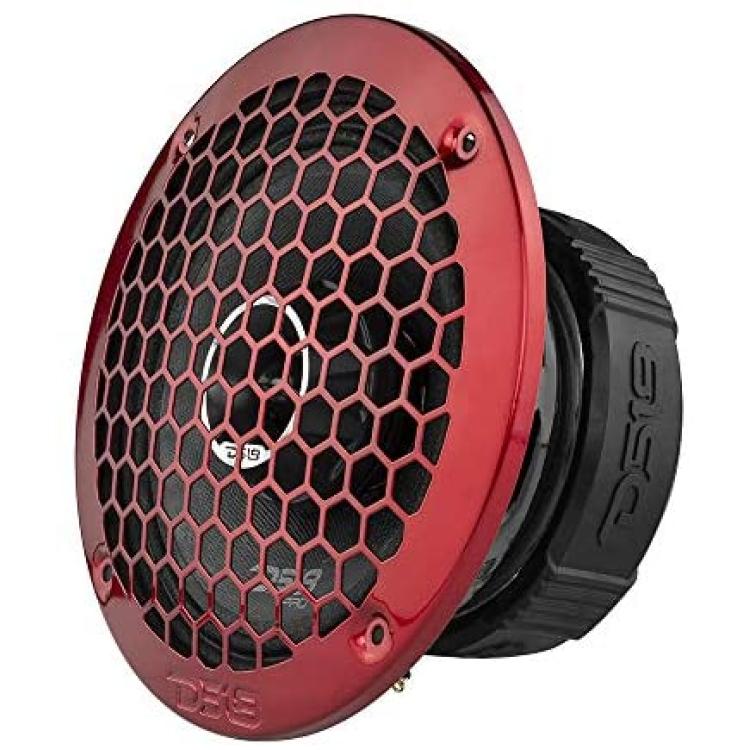

DS18 PRO-ZT6 6.5-Inch 2 Way Pro Audio Midrange Speakers with Built-in Bullet Tweeter, 4-Ohms, 450W Max, 225W RMS - Red Metal Mesh Grill Included (1 Speaker)
About this product
*NO ADDITIONAL COST: You pay $0 for repairs – parts, labor and shipping included.
*COVERAGE: Plan starts on the date of purchase. Malfunctions covered after the manufacturers warranty. Power surges covered from day one.
*EXPERT TECH HELP: Real experts available 24/7 to help with set-up, connectivity issues, troubleshooting and much more.
*PRODUCT ELIGIBILITY: Plans cover products purchased in the last 30 days.
*EASY CLAIMS PROCESS: File a claim anytime online or by phone. Most claims approved within minutes. We will send you an Amazon e-gift card for the purchase price of your covered product. In some cases, we will replace or repair it.
Description
PRO-ZT6
General
Nominal Diameter: 6.5" (1651.1mm)
Nominal Impedance: 4 ohms
RMS Power Handing: 225 Watts
MAX Power Handing: 450 Watts
Sensitivity (1w/1m): 96dB
Frequnecy Response: 65Hz - 22KHz
Recommended Hi Pass Crossover 120Hz
Midrange
Voice Coil Diameter: 1.5" (38.1mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Basket Material: Steel
Magnet Weight: 27 oz
Tweeter
Voice Coil Diameter: 1"
Voice Coil Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminum Alloy
Magnet Weight: 0.44 oz
Magnet Material: Neodymium
Thiele & Small Parameters
Equivalent Volume / Vas 2.917 LTR
Excursion / Xmax 1.6mm
Free Air Resonance / Fs 150Hz
Mechanical Factor / Qms 3.906
Electrical Factor / Qes 0.747
Total Factor / Qts 0.701
DC Resistance / Re 3.2
Measurements
Overall Diameter: 178mm (7")
Front Mount Baffle Cutout: 144mm (5.67")
Mounting Depth: 77mm (3.03")
Overall Depth: 97mm (3.81)
