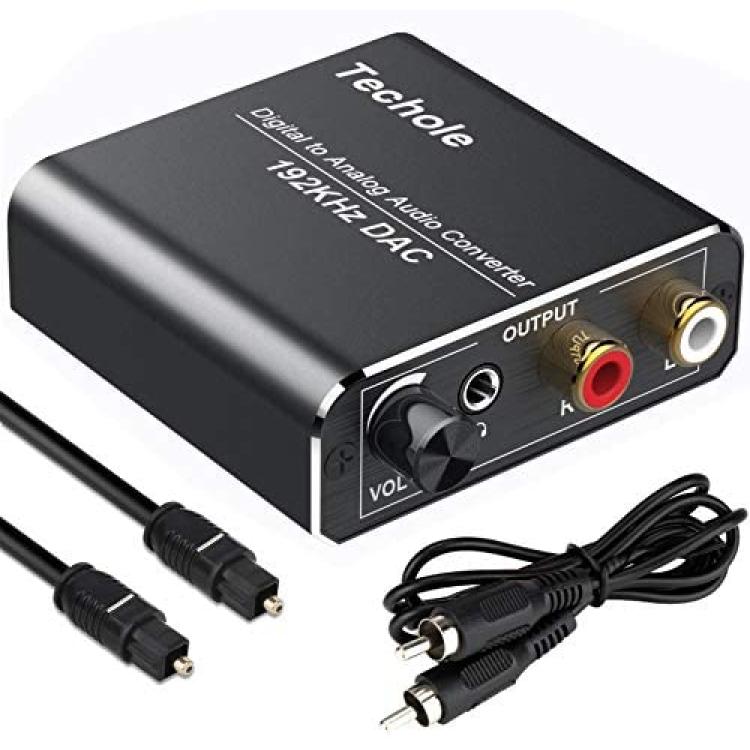

Digital to Analog Audio Converter-Upgrade Volume Adjustable Techole Aluminum Optical to RCA with Optical &Coaxial Cable. Digital SPDIF TOSLINK to Stereo L/R &3.5mm Jack DAC Converter for PS4 Xbox DVD

Overview:
With volume adjustment button, Techole digital to analog audio converter is designed to convert coaxial or Toslink digital PCM audio signals to analog L/R RCA and 3.5mm Jack audio. It also can be used for PS3, XBox, Blue-ray player, HD DVD, etc. which have no RCA(L/R) outputs or 3.5mm Jack output.

Features:
1. Volume Adjustable: Easy to adjust the volume with the volume adjustment button.
2. Built-In Active IC Chipset: Converts Coaxial or Toslink digital PCM audio signals to analog L/R RCA ( not capable of being reversed).
3. Aluminum Material: Unlike other ABS material, uses aluminum metal material, lightweight and compact.
4. High Definition Sound: Good Anti-interference Function Makes the Sound Pure and Clear, eliminating the Noise when No Input Signal and Automatically Mute.

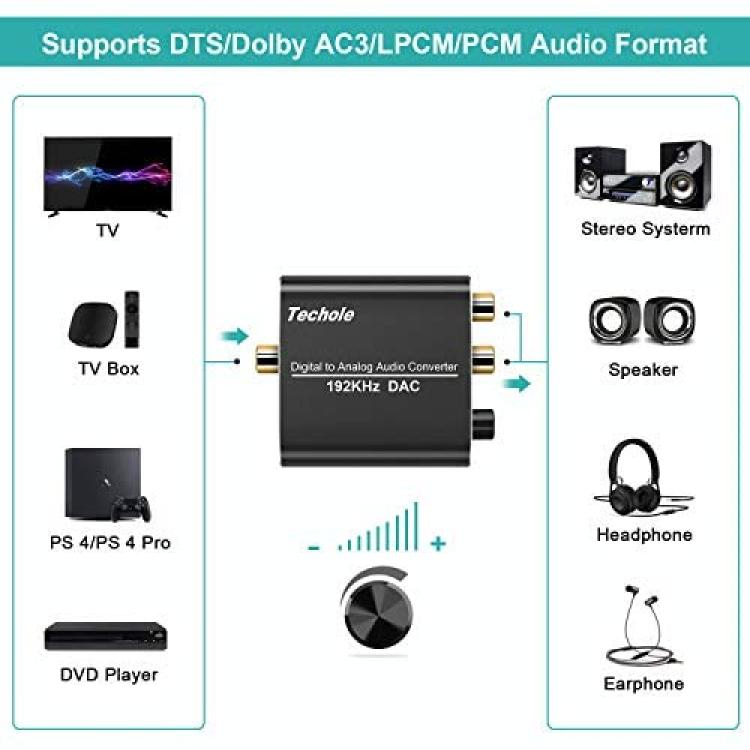

5. Widely Application: Works with Any Playback Source with an Optical (TOSLINK) or Coaxial Digital Audio Output Such as Digital and HD Televisions, Satellite Receivers, CD/DVD/Blu-Ray Players and Game Consoles, supporting Sampling Rate at 32KHz, 44.1KHz, 48KHz, 192kHz / 24bit

Specifications:
Input audio connector: 1 x Toslink, 1 x RCA (Coaxial), 1 x DC/5V Port
Output audio connector: 2 x RCA(R/L), 1 x 3.5mm Jack
Support Audio Format: PCM
Signal-to-Noise Ratio: 105DB
Separating Degree(1KHZ): 94DB
Response Frequency: 20Hz~20KHz -0.2db
THD+N: -90DB
Total Harmonic Distortion(THD): 10Hz~20KHz 0.25-0.065%
Blocking Time: 0.577Fs
Sampling Rate: 32~192 KHz
Bit Rate: 16~24 Bit
Output Impedance: 10 ohms
Consumption: 0.5W (max)
Converter Shell: Aluminum Shell
Color: Black
Weight: 0.16lb
Size: 2.17*2.36*0.94in

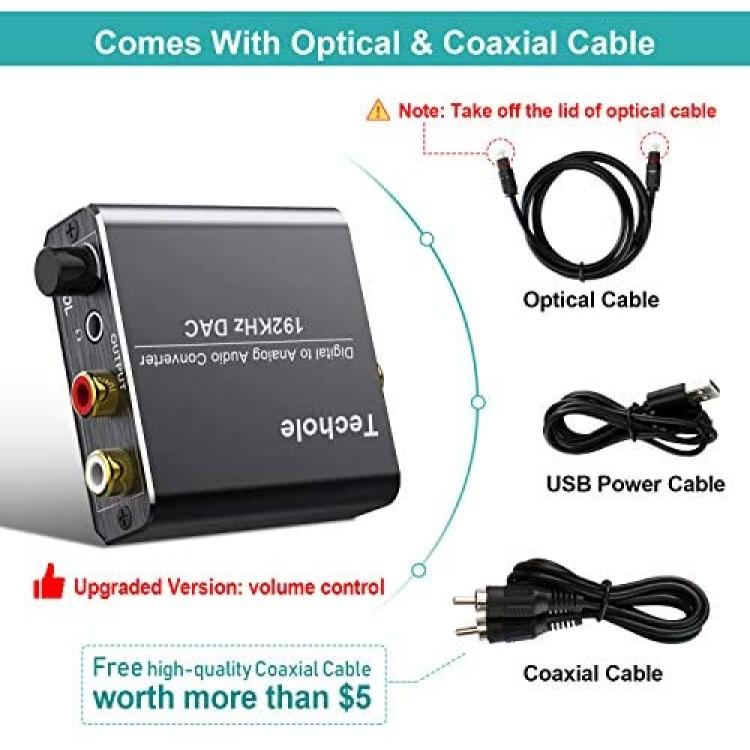

Package Included:
1 x Digital to analog audio converter
1 x Toslink cable (Optical cable)
1 x Coaxial Cable
1 x micro USB charging cable
1 x User manual
1 x Techole Warranty card
