Kensington SD5200T Thunderbolt 3 Docking Station - 85W PD - Dual Monitor 4k for Mac and PC (K38300NA)
Availability: In Stock
About this product
*Thunderbolt 3 dock for MacBooks (OS 10.14 and later) and Windows (7, 8, 8.1, 10) laptops equipped with Thunderbolt 3 (Lenovo Dell HP Acer, Asus, MSI, Razer, and more); MacBooks with the new M1 chipset will only display to a single monitor due to Apple’s chipset limitations (see our part #K33620NA for a dual monitor solution for Apple M1 machines)

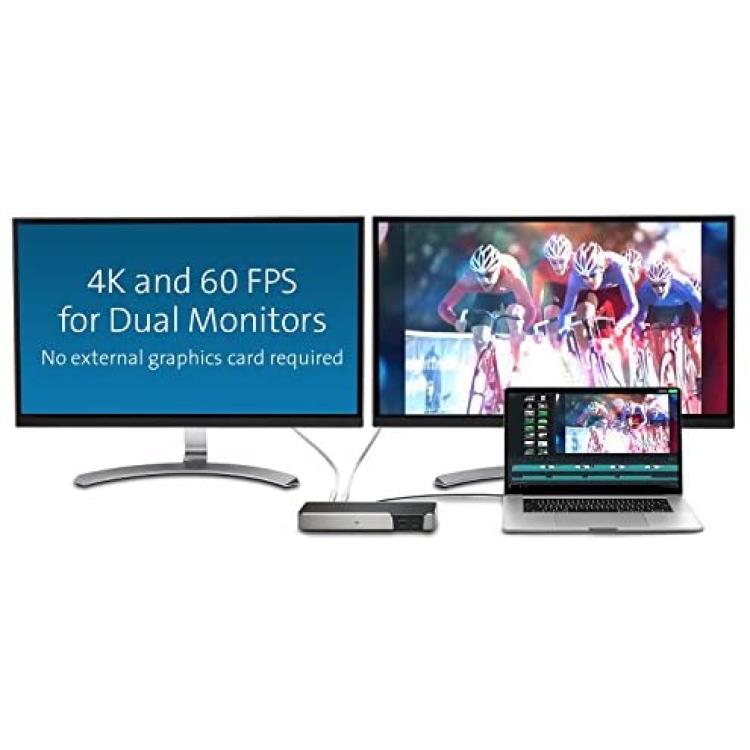

*Supports 4K Ultra HD (4096 x 2160 30-bit color @ 60 Hz) to dual monitors or 5K 60fps to a single monitor; dock is not compatible with Thunderbolt 3 monitors;

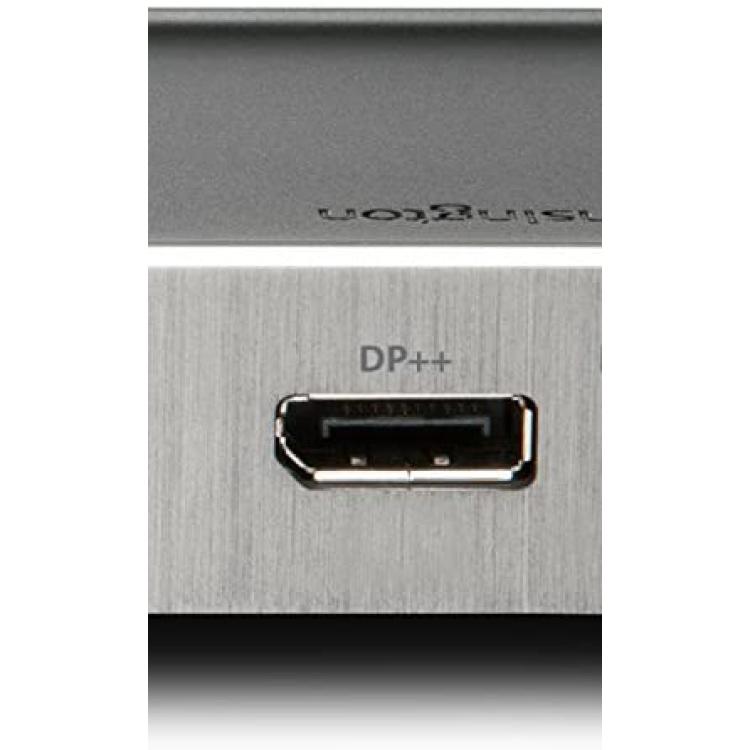

*Connect your laptop to the Thunderbolt 3 port (.5 meter Intel Certified TB3 cable included); connect your dual displays by using the DisplayPort++ 1.2 port with a passive DisplayPort cable to a DisplayPort display, and use a usb-c to DisplayPort or usb-c to HDMI cable in the second Thunderbolt port of the dock which will deliver video to a second monitor; if sending the display from the DisplayPort ++ to an HDMI monitor, a “passive” adapter or cable is required

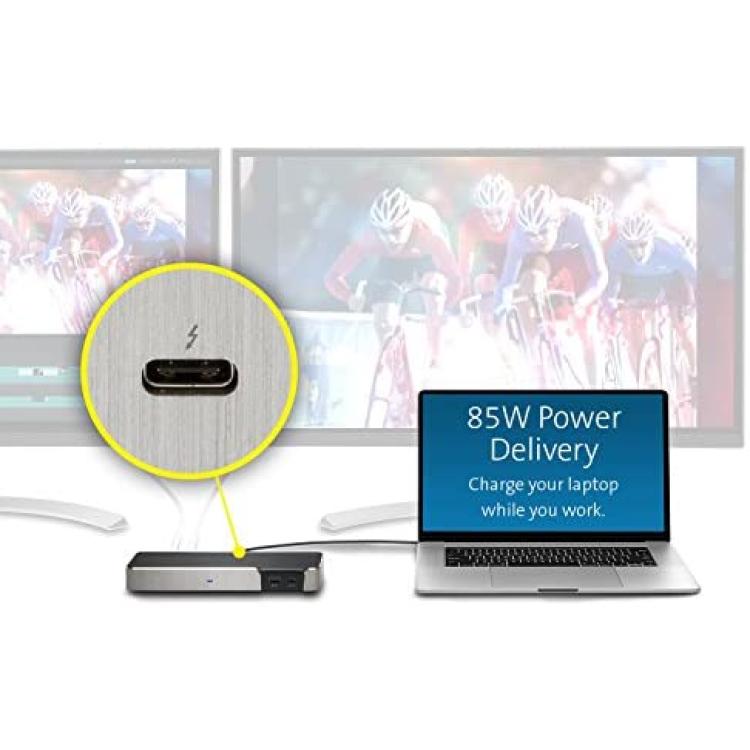

*Delivers up to 85W power (adjusts based on your laptops needs) to charge your laptop, including 87W devices like the 15” Macbook Pro (windows laptops must be designed to support power delivery via Thunderbolt to provide charging); delivers additional power to run peripherals like hard drives, and for charging phones and tablets

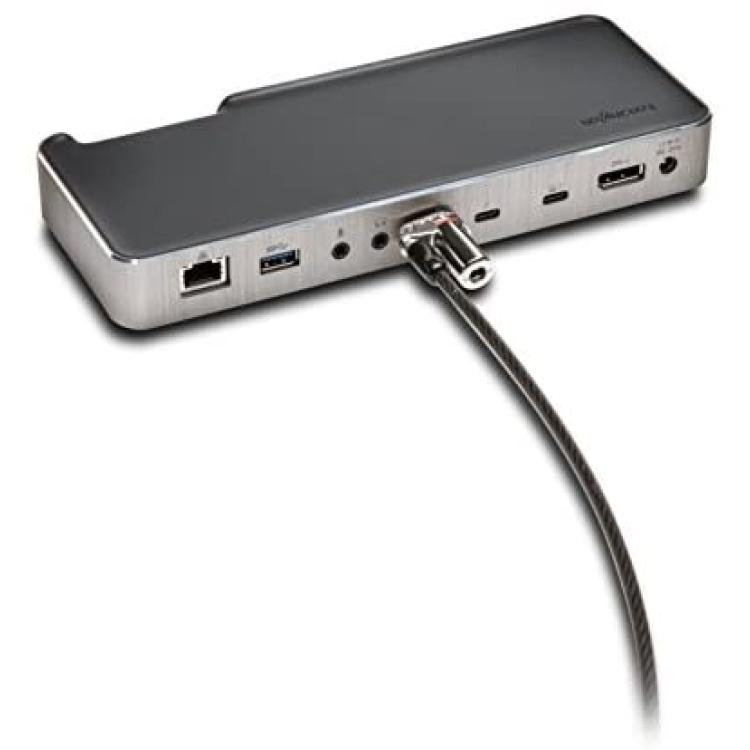

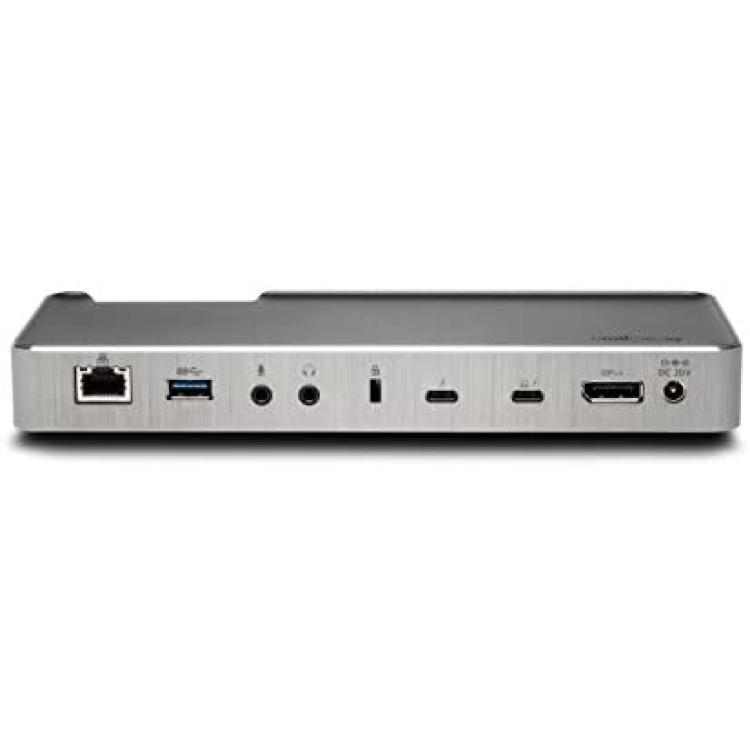

*15W USB C port; Dual USB 3.0 Ports (one with a 2.1a charging port); Gigabit Ethernet port; 3. 5mm headphone and microphone jacks; Kensington Lock slot; VESA mounting holes
Description
Kensington has engineered the game-changing SD5200T Thunderbolt 3 Docking Station for Windows and Mac. Whether you're a video editor, graphic designer, content creator, gamer, or just someone who wants to simplify a 4K workspace, you get more speed, more pixels, more power, and more possibilities. The SD5200T Thunderbolt 3 Docking Station is a power user's solution for hyper-productivity. For over 35 years, Kensington has been The Professionals' Choice for desktop productivity
Thunderbolt 3 and USB-C Docking Station – FAQ
Q: Do all Thunderbolt 3 desktop docking stations support USB-C laptops as well?
A: No, in order for a Thunderbolt 3 desktop docking station to be compatible with USB-C laptops, the docking station (like our SD5500T) must use the Intel Titan Ridge chipset.
Q: Is this dock compatible with laptops that can only connect via a USB-A port?
A: No
Q: Does this dock require driver installation?
A: With macOS and Windows 10 and 8.1, the operating system will download and install the necessary drivers automatically. Please be sure your Intel Thunderbolt software is installed. For more details see thunderbolttechnology.net/updates
Q: Does this dock support USB Power Delivery (PD)?
A: Supports USB-C PD 2.0 (85W of laptop charging)
Q: What if my device has a USB-C port but it doesn’t support Power Delivery (PD)?
A: Unfortunately, charging will not be supported then. However, data and video functionality will still be supported.
Q: How many monitors does the dock support and what are the max resolution supported?
A: Single monitor: 5K (5120 x 2880 @ 60Hz) or Dual monitors: 4K (4096 x 2160 @ 60 Hz)
Q: My computer supports dual-monitor extended mode, but there is no display on the 2nd monitor.
A: Sometimes the 2nd monitor will not automatically be displayed. You may have to use the Intel, Nvidia, or other compatible graphics card settings application to ‘unhide’ the second monitor.
Q: Does the dock support fast-charging for my phone?

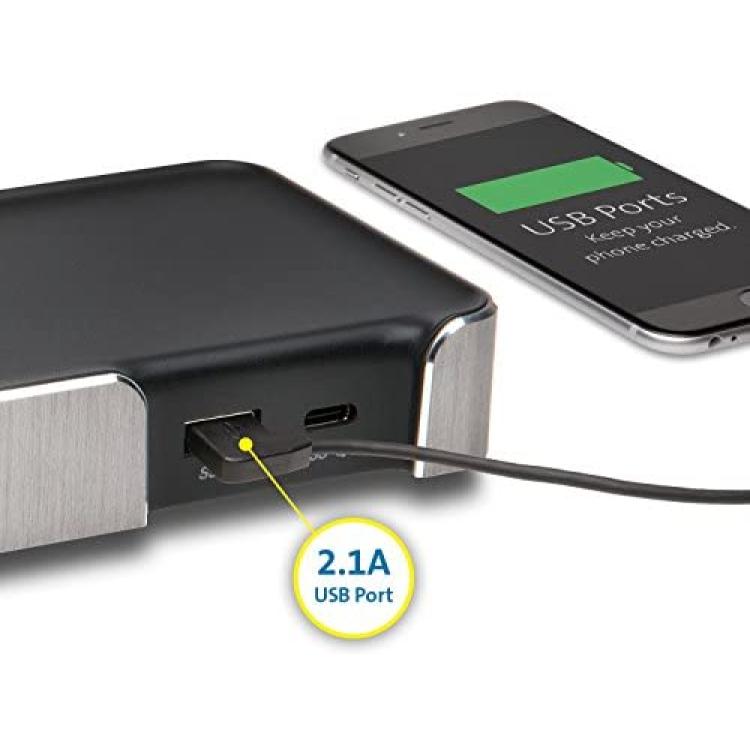

A: Yes, the front USB Type-A port supports 5V/2.1A and the front USB-C port supports 5V/3A
Q: Can I use other USB-C or Thunderbolt 3 cables (not from the original box) on this dock?
A: No, we can only assure the Kensington cables shipping with the dock would work. USB cables can vary greatly between different manufacturers. We recommend users to contact Kensington for replacement if needed.
Q: My Mac system included an 87W power adapter, will this dock still charge my system?
Yes, but the charge speed can vary based on the docking station in question.
A: This dock supports up to 85W of charging. While it will charge slower than 87W, it will still rapidly charge your laptop.
Q: Is there a way to mount the dock behind my monitor?
A: Yes, (with the exception of LD5400T, Lock and Dock series) our docks have VESA mount holes, but the VESA mount is not included. The following VESA mount is compatible with this docking station (K33959WW).
Q: Will this dock work with Kensington’s DockWorks software?
A: Yes, however, please visit kensington.com/dockworks/ for a complete list of the docking stations that are compatible with DockWorks.
Kensington has engineered the game-changing SD5200T Thunderbolt 3 Docking Station for Windows and Mac. Whether you're a video editor, graphic designer, content creator, gamer, or just someone who wants to simplify a 4K workspace, you get more speed, more pixels, more power, and more possibilities. The SD5200T Thunderbolt 3 Docking Station is a power user's solution for hyper-productivity. For over 35 years, Kensington has been The Professionals' Choice for desktop productivity
