Taidacent 5V Receiving Wireless Charging Power Supply Module Induction Charging Module Designed for Wireless Charging and Power Supply Development of Various Series of Small Eectronic Products(5V1A)

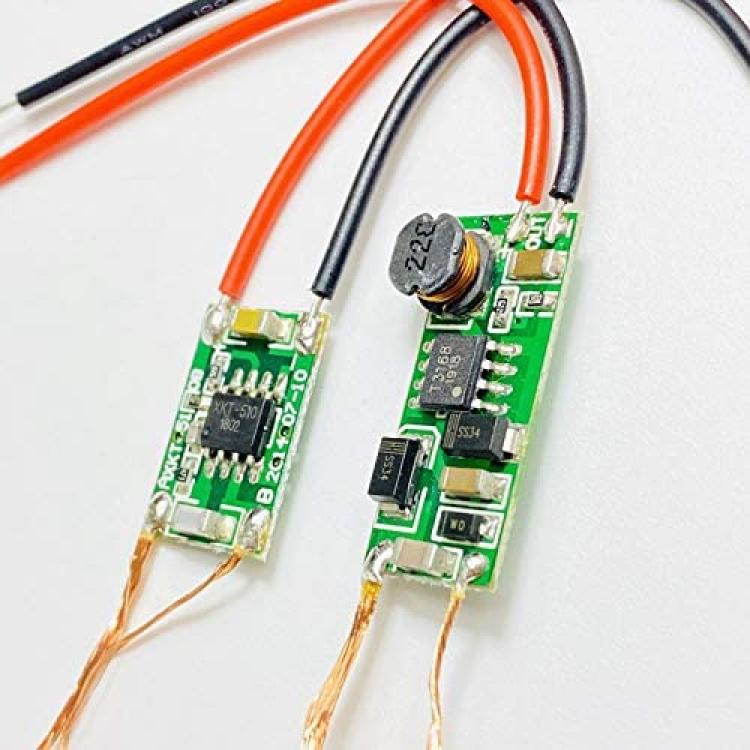

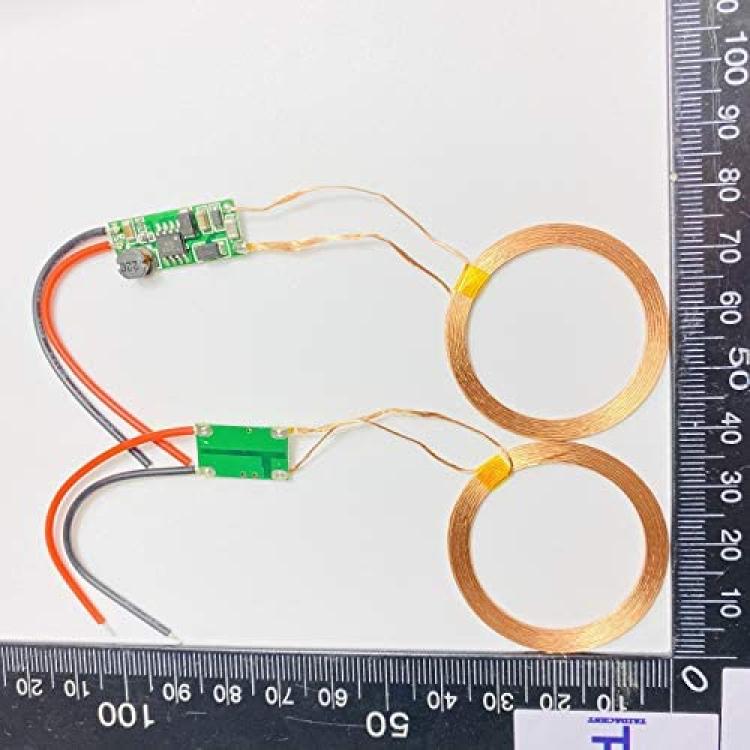

Transmitter module size: length 17mm width 11mm height 2.3mm;

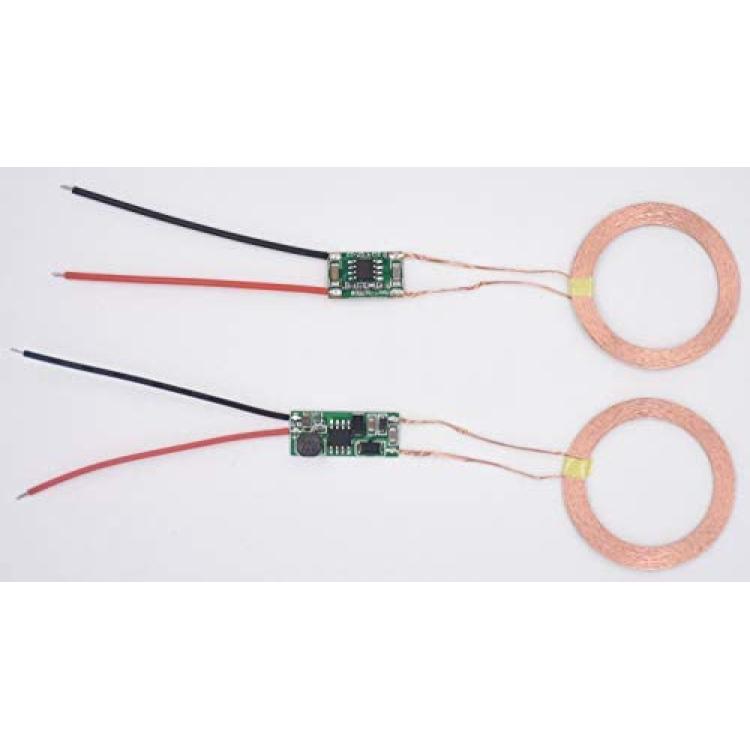

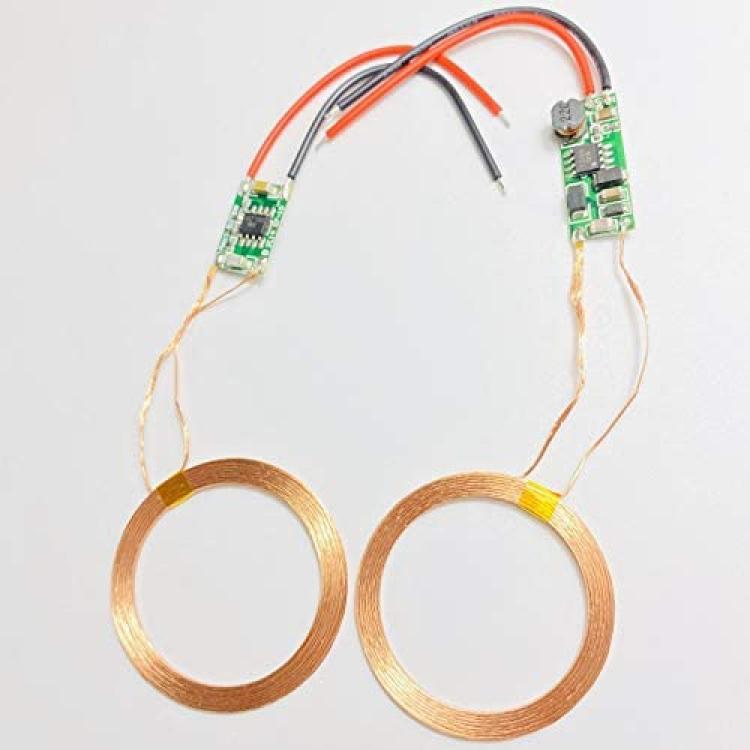

Transmitting and receiving coil size: outer diameter 40mm thickness 1.8mm;
Connection method: 1 pin is connected to the negative pole of the power supply; 2 is connected to the positive pole of the power supply; 3 and 4 are connected to the external transmitting coil;
Transmitter module working voltage: 5V~12V;
Transmitter module operating current: automatically increase or decrease with the receiving load current;
Receive module output current: 5V/1000mA;
Transmitting distance: 1~20mm;
If the small current works, increase the number of receiving coil turns to increase the transmission distance.
