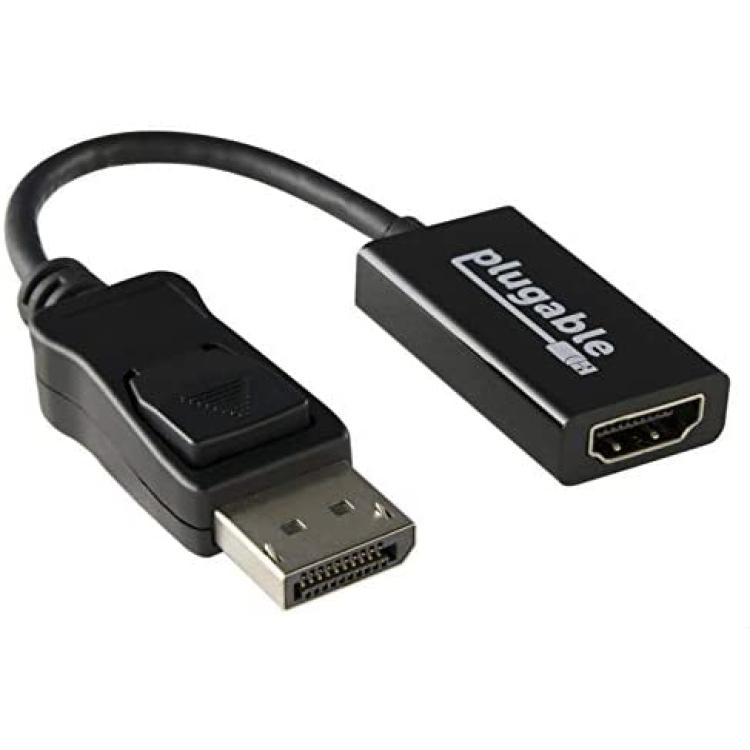

Plugable Active DisplayPort to HDMI Adapter - Connect Any DisplayPort-Enabled PC or Tablet to an HDMI Enabled Monitor, TV or Projector for Ultra-HD Video Streaming (HDMI 2.0 up to 4K 3840x2160 @60Hz)
Availability: In Stock
About this product
*DISPLAYPORT TO HDMI - Converts a DisplayPort output on your laptop or desktop to an HDMI output to enable connection to an HDMI capable display, monitor, or HD TV
*SUPPORTED RESOLUTIONS - Supports HDMI displays up to 3840x2160 @ 60Hz (4K) resolution
*STANDARDS - VESA (DisplayPort) certified. Compliant with VESA Dual-Mode DisplayPort 1.2, High Bit Rate 2 (HBR2), and HDMI 2.0 standards. AMD Eyefinity compatible
*Will convert from DisplayPort on computer to HDMI on monitor only. Not a bi-directional adapter and not compatible with gaming consoles, DVD/BluRay players and USB ports. Note that source device and attached display must support the desired resolution/mode - adapter will not allow use of resolutions which are not supported by the source or display
*2 YEAR WARRANTY - We love our Plugable products, and hope you will too. All of our products are backed with a 2-year limited parts and labor warranty as well as Seattle-based email support
Description
Plugable's DisplayPort to HDMI active adapter allows you to connect the DisplayPort output on your laptop or PC to virtually any HDMI-enabled display. With an internal pixel clock capable of running at up to 594MHz, Plugable's DP-HDMI active adapter supports resolutions up to 4K when using a compatible graphics card and display. Most other adapters are "passive" (also known as "level-shifters" or "Type 1 adapters") which often have a maximum pixel clock of 165MHz and only allow resolutions up to 1920x1200.
Compatibility

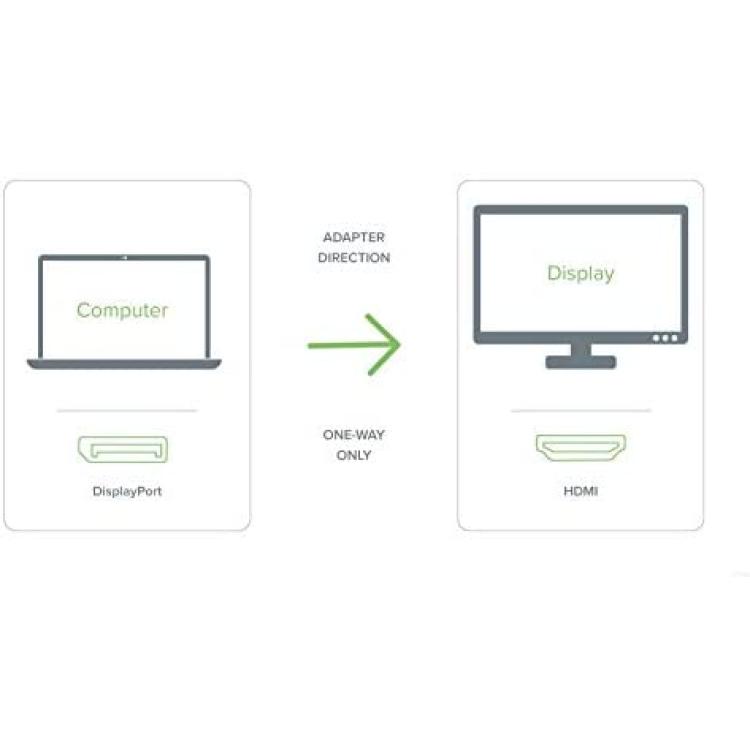

The Plugable DisplayPort to HDMI active adapter converts a DisplayPort (DP, DisplayPort++, DP++) output to connect to an HDMI display. Will not convert in the opposite direction.
Supports video modes up to 4K (including 3840x2160@60Hz, 2560x1600, 2560x1440) and up to 8-channel LPCM/HBR audio up to 192kHz sample rate. Maximum available resolution will be determined by your computer and display. Cable will not allow resolutions beyond what your output device (PC) or HDMI display are capable of.
AMD Eyefinity compatible. Skylake compatible. VESA (DisplayPort) certified. Compliant with VESA Dual-Mode DisplayPort 1.2, High Bit Rate 2 (HBR2), and HDMI 2.0 standards.
Please note that Lenovo W500 systems use a non-standard DisplayPort implementation. If the DP-HDMI adapter is attached to a W500, the display output will function as expected, but audio will not be sent through the adapter to attached display.
Complies with HDCP and DPCP content protection. Note that all other devices in the playback chain must be HDCP compliant for playback of protected content such as Blu-ray.

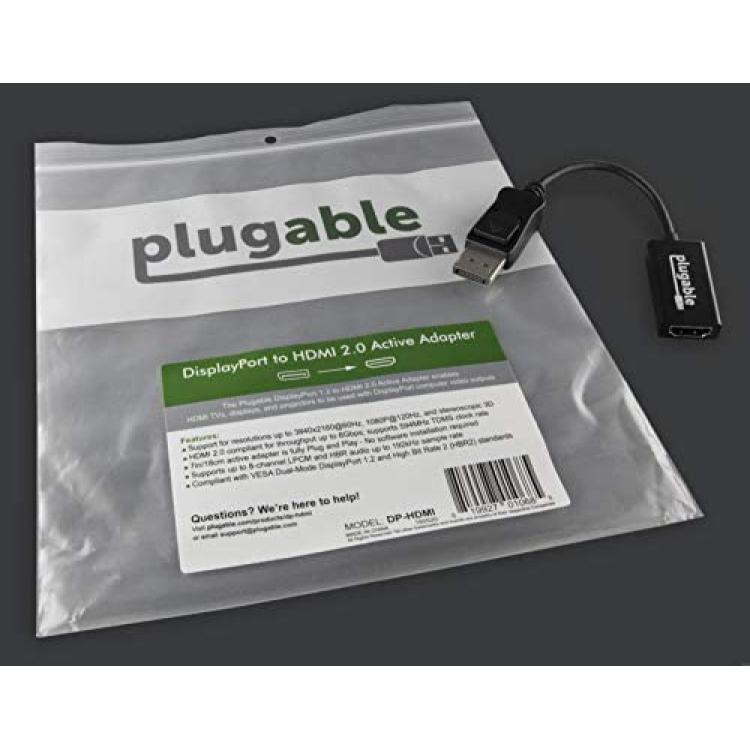

In the Bag
Plugable DisplayPort 1.2 to HDMI 2.0 Active Adapter
What is an active adapter? How is it different from a passive adapter?
An Active DisplayPort adapter has an integrated circuit to convert a DisplayPort signal to a HDMI, DVI, or VGA signal. DisplayPort uses a different digital signaling type than HDMI and DVI (which use the same type), both of these signaling types are very different from VGA's analog signal.
Passive adapters rely on the graphics controller to selectively output the correct graphics signal using the DisplayPort output and generally will have reduced resolution or refresh rate compared to Active Adapters. Additionally using passive adapters may limit the number of connected displays in AMD Eyefinity and NVIDIA Surround setups.
Why doesn't this work with HDR 4K televisions?
HDR or HDR10 is a new technology that requires additional color and brightness data to be transmitted from the computer to the display. This requires the host computer to support DisplayPort 1.4 or HDMI 2.0b or HDMI 2.1, our adapter is designed for SDR (non-HDR) displays and converts from DisplayPort 1.2 to HDMI 2.0, and is incompatible with the HDR specification.
When connected to a HDR television, the television will attempt to enable HDR over the connection even though it is not supported causing reduced refresh rate or image quality. Some televisions provide options to disable HDR but most will enable and prioritize HDR over image quality and refresh rate.
Plugable's DisplayPort to HDMI active adapter allows you to connect the DisplayPort output on your laptop or PC to virtually any HDMI-enabled display. With an internal pixel clock capable of running at up to 594MHz, Plugable's DP-HDMI active adapter supports resolutions up to 4K when using a compatible graphics card and display. Most other adapters are "passive" (also known as "level-shifters" or "Type 1 adapters") which often have a maximum pixel clock of 165MHz and only allow resolutions up to 1920x1200.
Compatibility
The Plugable DisplayPort to HDMI active adapter converts a DisplayPort (DP, DisplayPort++, DP++) output to connect to an HDMI display. Will not convert in the opposite direction.
Supports video modes up to 4K (including 3840x2160@60Hz, 2560x1600, 2560x1440) and up to 8-channel LPCM/HBR audio up to 192kHz sample rate. Maximum available resolution will be determined by your computer and display. Cable will not allow resolutions beyond what your output device (PC) or HDMI display are capable of.
AMD Eyefinity compatible. Skylake compatible. VESA (DisplayPort) certified. Compliant with VESA Dual-Mode DisplayPort 1.2, High Bit Rate 2 (HBR2), and HDMI 2.0 standards.
Please note that Lenovo W500 systems use a non-standard DisplayPort implementation. If the DP-HDMI adapter is attached to a W500, the display output will function as expected, but audio will not be sent through the adapter to attached display.
Complies with HDCP and DPCP content protection. Note that all other devices in the playback chain must be HDCP compliant for playback of protected content such as Blu-ray.
In the Bag
Plugable DisplayPort 1.2 to HDMI 2.0 Active Adapter
