TOGUARD Backup Camera Kit, 7’’ LCD Rear View Monitor with IP67 Waterproof Night Vision Back up Rearview Reverse Cam for Trucks, RVs, Trailers, Bus, Harveste, Pickup, Motor Home, Van Large Vehicles

TOGUARD Backup Camera Kit, 7’’ LCD Rear View Monitor with IP67 Waterproof Night Vision Back up Rearview Reverse Cam for Trucks, RVs, Trailers, Bus, Harveste, Pickup, Motor Home, Van Large Vehicles

Product Code: HSM7138
Availability: In Stock

US$34.99

- +

For Bulk Order, Get Better Price.

About this product

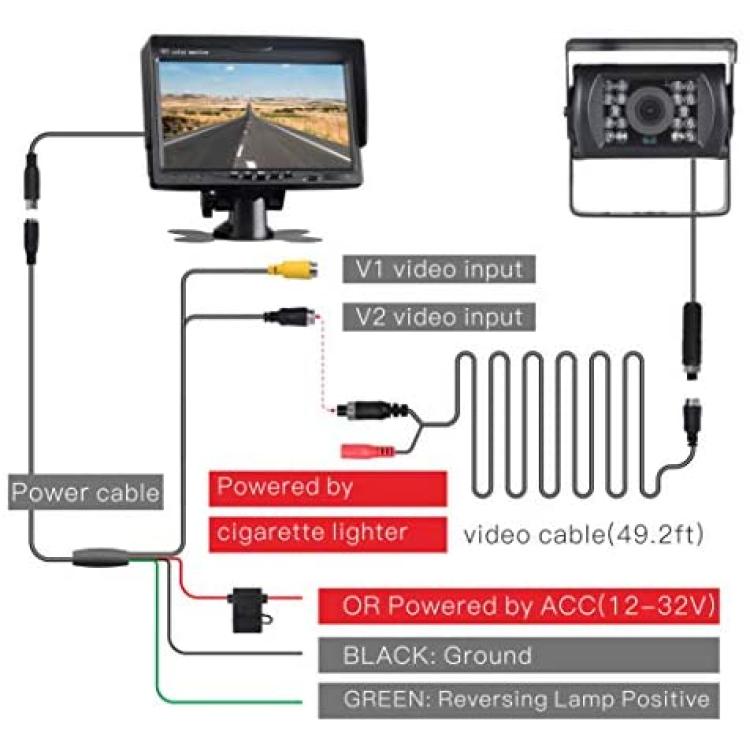

*【Easy to install】2 Power Supply. If powered by ACC fuse box, please connected the Red to ACC, the black connect the Metal (Ground), thus the monitor and backup camera will automatically turn on/off when the vehicle is ON. Or if powered by cigarette lighter, it need to manually turn on the monitor when the vehicle starts. (Installation instructions are included.)

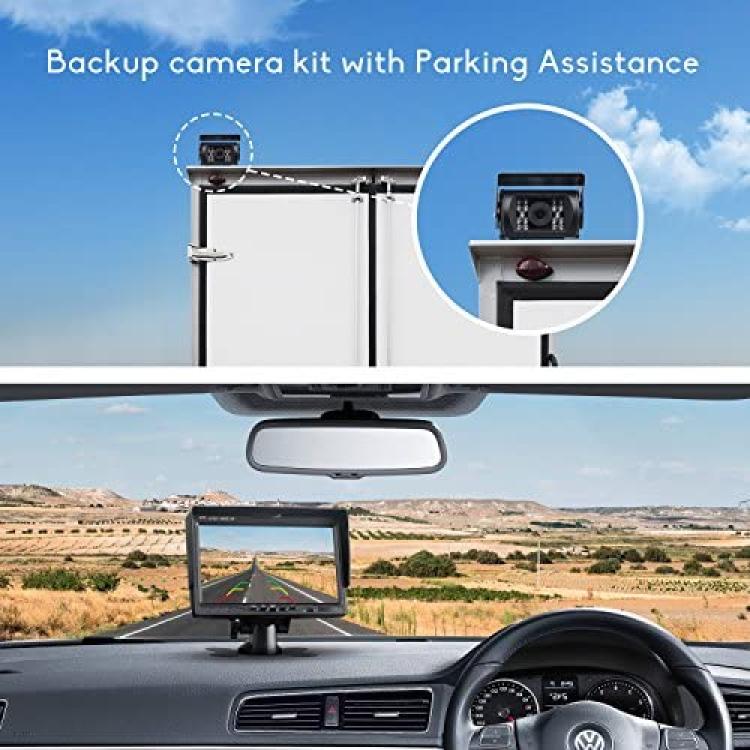

*【Backup camera kit with Distance Sensor】Default with parking guidelines, it will automatically show the rear images and parking guidelines full time whether its driving or reversing. Perfect for backing into tight spots or moving in reverse, especially for the Large Vehicles, just like having an extra eye in the back.

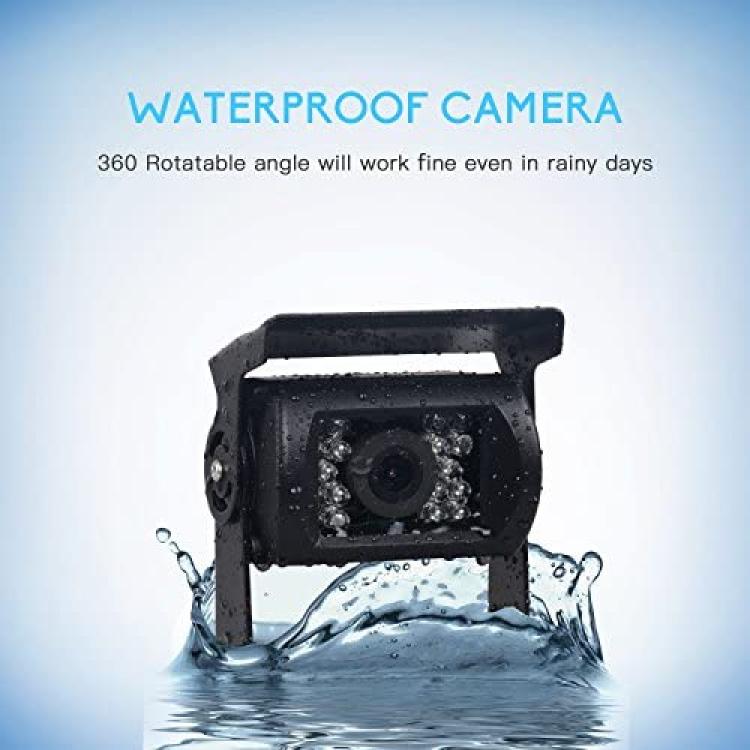

*【IP67 Waterproof HD Reverse Camera】Based on IP67 Waterproof Level and CMOS Sensor will present superior clear images even at rainy days. While the 18 IR LEDs will give low light compensation and ensure the vivid images during the night.

*【7 inch Rearview Monitor and 2 Channel Video Input】7 Inch LCD display monitor can directly attached to flat surface dashboard with provided adhesive foam and pedestal (pedestal can be removed), and the monitor also has capability to monitor two video inputs V1/V2. V2 video input will have priority (reverse camera) for safety, V1 inputs can add a additional front/side/reverse camera for better safety.

*【12-32V Backup Camera】Support Voltage Range From DC 12-32V DC Power, perfect for wide variety of large Vehicles, especially suit for Trucks/RVS/Trailers/Bus//Harvester/Pickup/Motor Home/Van and etc. No worry about the length of the cable, it equipped with 49.2ft Cable to meet your all needs.

Description

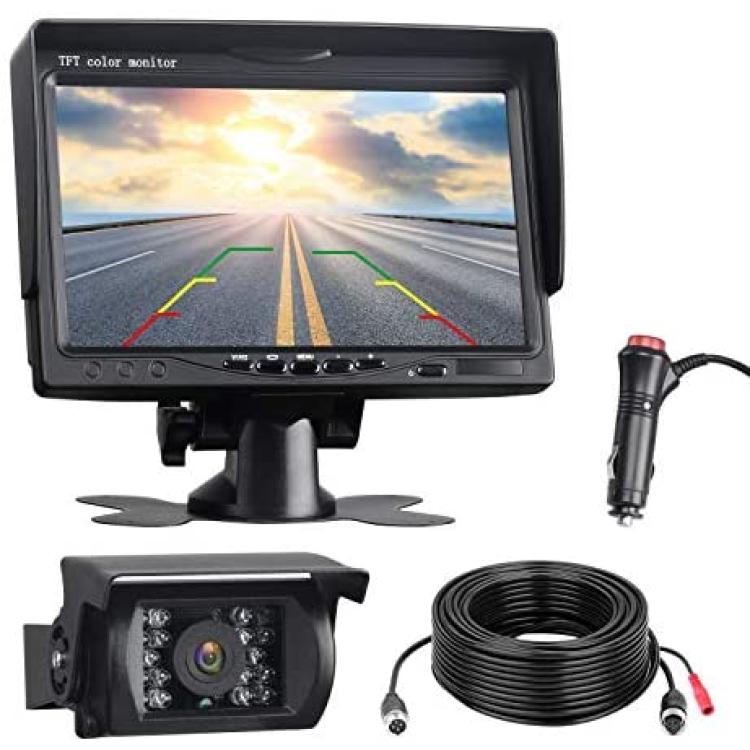

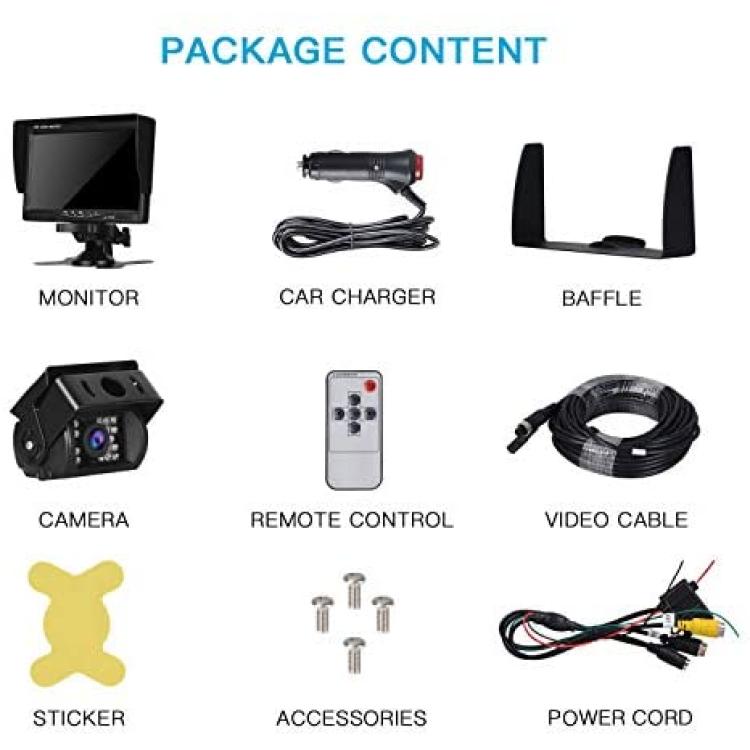

Perfect Digital Wired backup camera for Truck/Trailer/Bus/RV/Pickups/Van,etc EASY INSTALLATION 1.Power the monitor with the included Cigarette lighter power adapter.(DC11V-32V) 2.Connect the camera external power cable to the reverse light.(DC11V-32V,Red lear to Positive,Black lead to Ground) 3.Connect the external power cable to the camera and install the camera, then route the excess cable. 4.Now when you put your car in Reverse Gear, the camera will automatically turn on. Specification: Wired Rear View Monitor Type: Screen Size: 7 inch(16:9) Resolution: 800 x 480 Cable length? 49.2 ft Ultra-low power consumption, to prevent over heat Signal format: PAL / NTSC. Compatible with all signal formats Rated Voltage: DC 12V Reverse Camera Image sensor: IR Color CMOS Camera Resolution:480 TV line 18 infrared lights Power: DC 11V-32V Waterproof grade:IP67 Effective Pixels:684 x 512pixels Signal format: PAL/NTSC Package Included: 1 x 7 inch Car Monitor 1 x Car Backup Camera 2 x Antennas 1 x Cigarette Lighter 1 x User Manual Trusted by over Millions of homes and businesses since our establishment in 2009, TOGUARD is an industry leader in Home and Personal Security Monitoring Technology. Whether you need to guard your home or loved ones, keep an eye on things while you're away, or record moments that matter, TOGUARD is here to help. Installation Method 2 Specification Screen size: 7 inch (16:9) Monitor resolution: 800*480 Monitor power: DC 11V-32V Monitor work temp: -10?~+40? Camera waterproof grade: IP67 Camera IR LEDS: 18pcs Camera resolution: 480TV lines Extension cable length? 49.2 ft Compare with similar items This item TOGUARD Backup Camera Kit, 7’’ LCD Rear View Monitor with IP67 Waterproof Night Vision Back up Rearview Reverse Cam for Trucks, RVs, Trailers, Bus, Harveste, Pickup, Motor Home, Van Large Vehicles Add to Cart Add to Cart Add to Cart Add to Cart Customer Rating 4.5 out of 5 stars 4.6 out of 5 stars 3.9 out of 5 stars 4.1 out of 5 stars Price $69.99$69.99 $99.99$99.99 $57.87$57.87 $52.49$52.49 Shipping FREE Shipping. FREE Shipping. FREE Shipping. FREE Shipping. Sold By this webshop this webshop Color Black Black lcd Black Item Dimensions 6.69 x 4.33 x 0.91 inches 10 x 3.8 x 1.5 inches 5.25 x 7.25 x 4.25 inches 5.75 x 11 x 3.5 inches Product description Perfect Digital Wired backup camera for Truck/Trailer/Bus/RV/Pickups/Van,etc EASY INSTALLATION 1.Power the monitor with the included Cigarette lighter power adapter.(DC11V-32V) 2.Connect the camera external power cable to the reverse light.(DC11V-32V,Red lear to Positive,Black lead to Ground) 3.Connect the external power cable to the camera and install the camera, then route the excess cable. 4.Now when you put your car in Reverse Gear, the camera will automatically turn on. Specification: Wired Rear View Monitor Type: Screen Size: 7 inch(16:9) Resolution: 800 x 480 Cable length? 49.2 ft Ultra-low power consumption, to prevent over heat Signal format: PAL / NTSC. Compatible with all signal formats Rated Voltage: DC 12V Reverse Camera Image sensor: IR Color CMOS Camera Resolution:480 TV line 18 infrared lights Power: DC 11V-32V Waterproof grade:IP67 Effective Pixels:684 x 512pixels Signal format: PAL/NTSC Package Included: 1 x 7 inch Car Monitor 1 x Car Backup Camera 2 x Antennas 1 x Cigarette Lighter 1 x User Manual User Manual of this item is available on our product page, please search "User Manual" , you can find it at the Technical Specification part.If there is any issue when you use it, please feel free to let us know, We are always here at your service.Hard wire the monitor to fuse box.Install the rear view camera on your car and connect the trigger cable to the 49.2 ft extension cable.Now when you are in/out of Reverse Gear, the camera and the monitor will automatically turn on/off.Connect the monitor with the included cigarette lighter power adapter.If you install in this way, the monitor will not be triggered by reversing, need to be manually turned on/off.This item can also be used as a rear view monitor, it works all the time if you connect it in this way and keep the monitor on. Screen size: 7 inch (16:9) Monitor resolution: 800*480 Monitor power: DC 11V-32V Monitor work temp: -10?~+40? Camera waterproof grade: IP67 Camera IR LEDS: 18pcs Camera resolution: 480TV lines Extension cable length? 49.2 ft
