CAT6 Shielded Plenum (CMP), 1000ft, F/UTP 23AWG, Solid Pure Copper, 550MHz, UL Certified, UL-LP Certification, Bulk Ethernet Cable Reel in Blue
Availability: In Stock
About this product

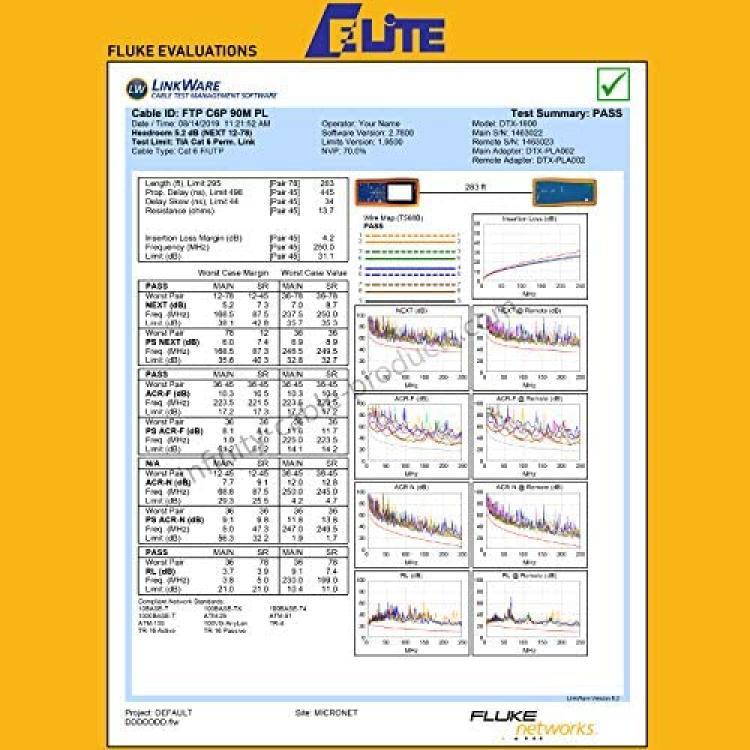

*Cat6 Shielded Plenum (CMP) bulk cable in Blue is 1000ft, 4 Unshielded Twisted Pair with an overall foil shield around all 4 pairs, 23AWG, Solid Bare Copper Conductors for optimal signal strength. Top rated performance with 3-5 dB extra margin over EIA/ TIA-568.2-D standards. Fluke Tested. Suitable for PoE, PoE+. Our Cat6 shielded plenum cable is built with a spline for extra headroom performance and improvement against crosstalk.
*Install Cat6 shielded plenum cable in areas with air flow, in drop ceilings and between raised flooring. Plenum cable can also be installed in Riser rated areas: in the walls, between floors and in risers. Constructed with high quality FRPVC to reduce the spread of flames and emit less toxic smoke. Insualted with FEP for greater performance at higher temperatures. Run this Cat6 shielded cable up to 328 Feet (100 meters). Easily connect this cable with shielded Cat6 keystone jacks, RJ45s.
*Cat6 shielded plenum cable supports 1Gb (Gigabit) Ethernet and up to 550MHz at 328 Feet. Achieve up to 10Gb at shorter distances with standard IEEE 802.3bz (2.5GBase-T and 5GBase-T). Power devices such as: PoE (Power Over Ethernet), computers, routers, IP Cameras, switches, keystone jacks, RJ45s, modems, Xbox, PlayStation, Apple TV, ethernet adapters, Fax Machines, Smart TVs, Mesh networks, access points, cctv and much more!

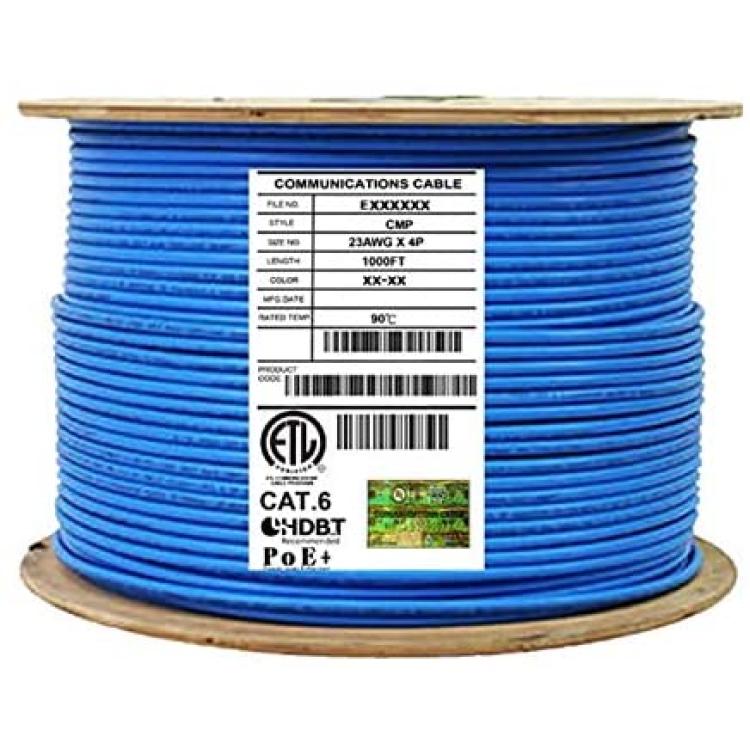

*Packaged smoothly on a wooden reel this Cat6 shielded plenum cable is easily deployed during installation. Every 2 feet of this cable is marked with length so you can keep track of how much you have used.
*Get the most certified Cat6 shielded plenum cable on Amazon with our UL Listed, ETL Verified, RoHS Compliant, TAA Compliant and 3P Tested. All cable reels include UL Certified stickers. All cables have specification, Length and UL printing on jacket. Enjoy cable that prioritizes safety and performance. Able to pass building inspections and building code this cable combines fast speeds, durability and certification that your network will love.
Description
CAT6 Shielded Plenum Features
 Structure

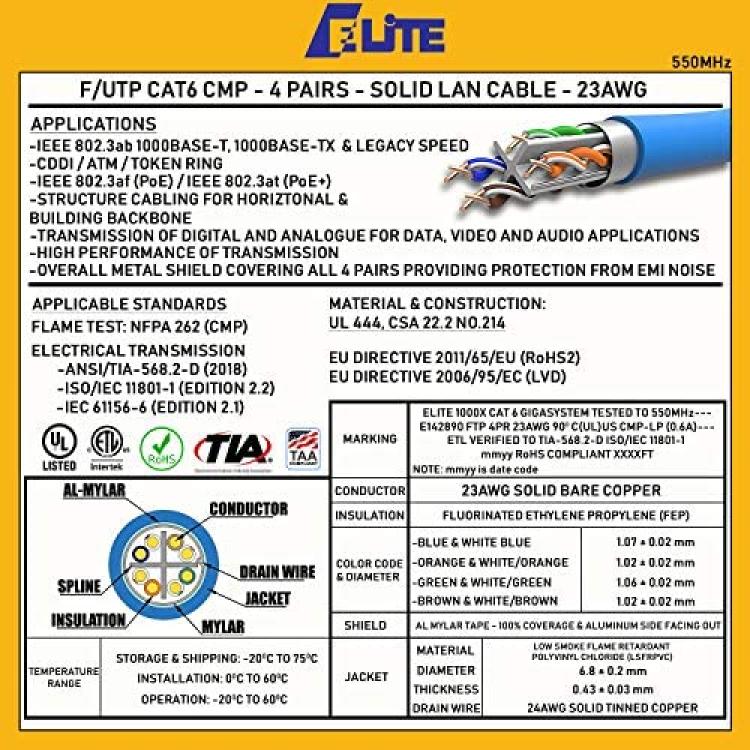

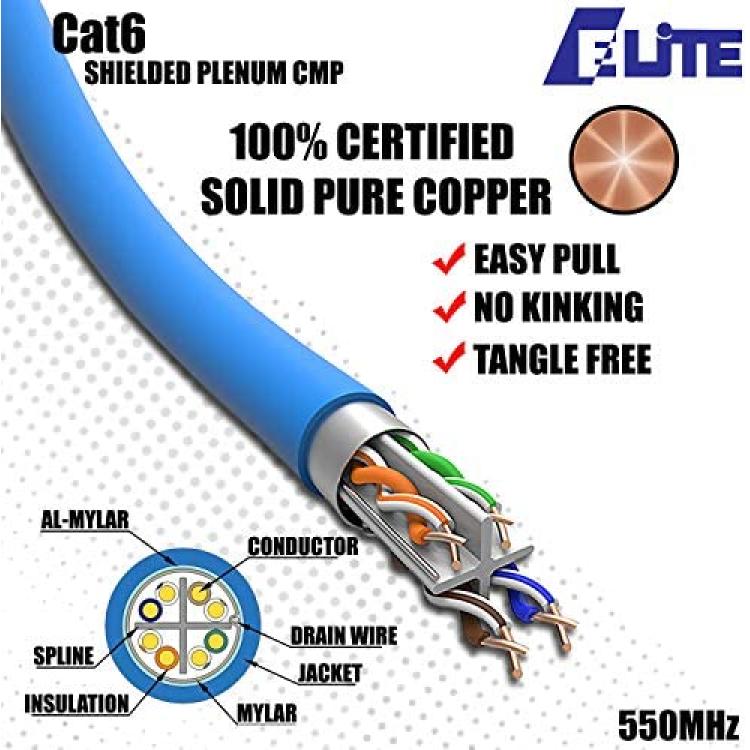

 F/UTP | 23AWG | 550MHz | Spline | Solid | Bare Copper | Drain Wire
 On a wooden spool (Recommended) for shielded cables. The bend radius is equal on a reel which will protect the shield from any internal cracking during pulls.
 Where to Use
 Plenum/CMP cable is for plenum rated installations above the ceiling or below the floors that are used for air circulation. Plenum cable can replace riser rated cable for in wall installations.
 Install in your home and offices, For gaming systems, routers, networking devices, PoE (Power over ethernet), cameras..plus more!
 Performance
 Electronic Performance: 3-5 DB extra margin over EIA/TIA-568.2-D Standard
 We only use 100% Pure Copper in our cables. Bare copper provides much greater performance compared to CCA and complies with Cat 6 Standards.
 Certification
 UL Certified, ETL Verified, RoHS Compliant, 3rd Party Tested.
 The Importance of UL
 UL is the leading safety/performance testing Lab in the U.S.
 The Importance of UL-LP Certification for PoE
 Limited Power Certification LP provides an uncomplicated way to help ensure installations are ready for the increasing power levels and are not susceptible to safety issues caused by
 excessive heat generation. This simplifies installation planning. The test-based requirements also allow for innovation in cable design. Cables are distinguished with an industry
 recognized and trusted UL certification Mark. This helps ensure compliance and reduces risk to all stakeholders in the supply chain.
 Warranty
 25 Years Warranty and Product Support
