HCDC 1 in 8 Out 40Amp Connector Power Splitter Distributor Source Strip Module
Availability: Pre-Order, Inquiry Price
About this product
*Operating voltage: 0 to 32VDC, No-load current: 2mA(for power indicator LED). Input port: maximum input current 40A, fuse 40A. Output port: 8 output ports, fuse 30A*2, 20A*2, 10A*2, 5A*1, 3A*1.
*With power indicator LED. High-quality fuse holder, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A.
*Enclosure: High quality aluminum enclosure,thickness 1.5mm/0.06".

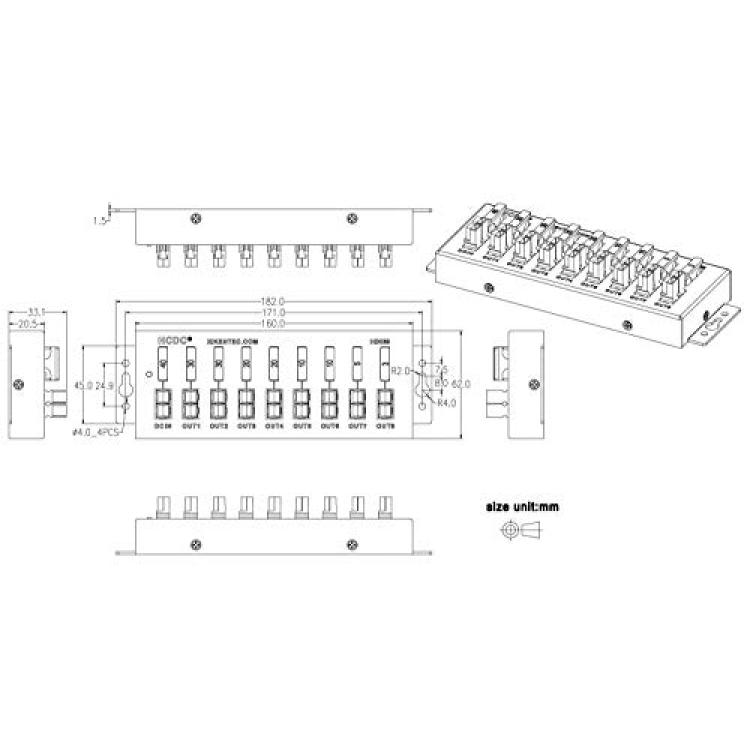

*Overall Dimensions(maximum, w/o cables): L180mm x W62mm x H33mm / 7.09"x2.44"x1.30". Gross weight: 300g, Net weight: 230g

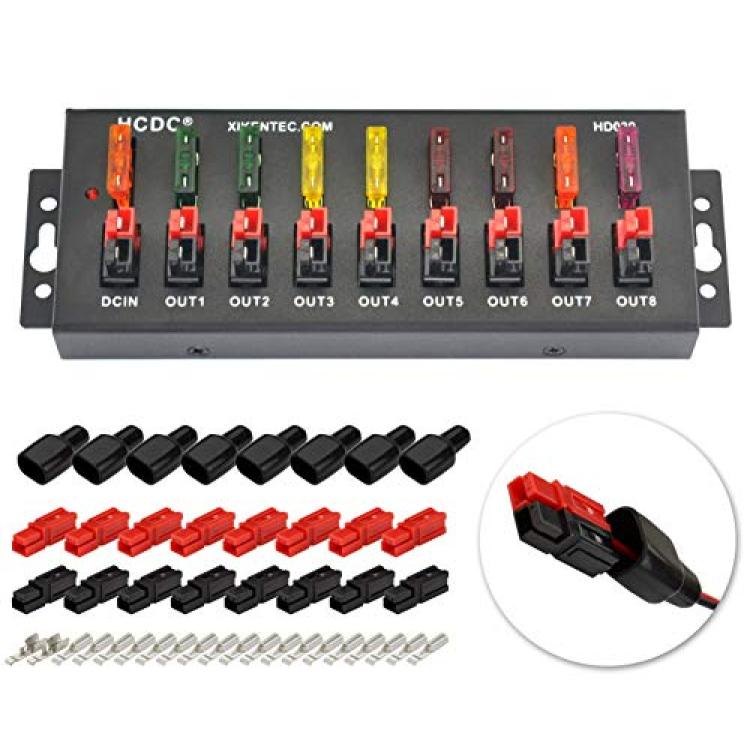

*Packing list: 1x Distribution module, 9x black power pole housings, 9x red power pole housings, 9x PVC cover flame retardant sleeve, 18x silver plated copper 30A 14-12AWG power pole contacts, 2x tinned copper 45A 12-10AWG power pole contacts.
Description
Operating voltage: 0 to 32VDC, No-load current: 2mA(for power indicator LED). Input port: maximum input current 40A, fuse 40A. Output port: 8 output ports, fuse 30A*2, 20A*2, 10A*2, 5A*1, 3A*1.
With power indicator LED. High-quality fuse holder, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A.
Enclosure: High quality aluminum enclosure,thickness 1.5mm/0.06".
Overall Dimensions(maximum, w/o cables): L180mm x W62mm x H33mm / 7.09"x2.44"x1.30". Gross weight: 300g, Net weight: 230g.
Packing list: 1x Distribution module, 9x black power pole housings, 9x red power pole housings, 9x PVC cover flame retardant sleeve, 18x silver plated copper 30A 14-12AWG power pole contacts, 2x tinned copper 45A 12-10AWG power pole contacts.
CAD 3D (pdf):
