Ultra-Flex Omni-Directional Antenna, 2.1-2.5 GHz, 2.15 dBi, TNC(m) RF Connector

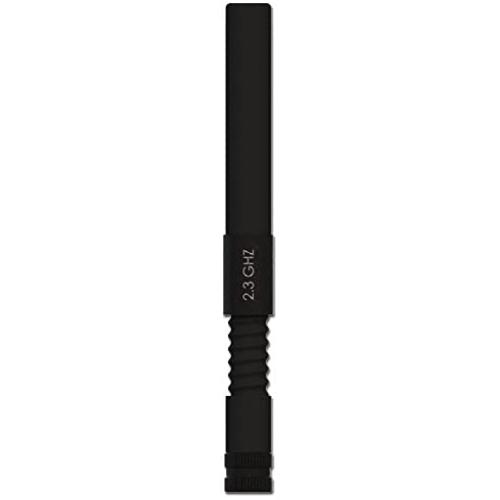

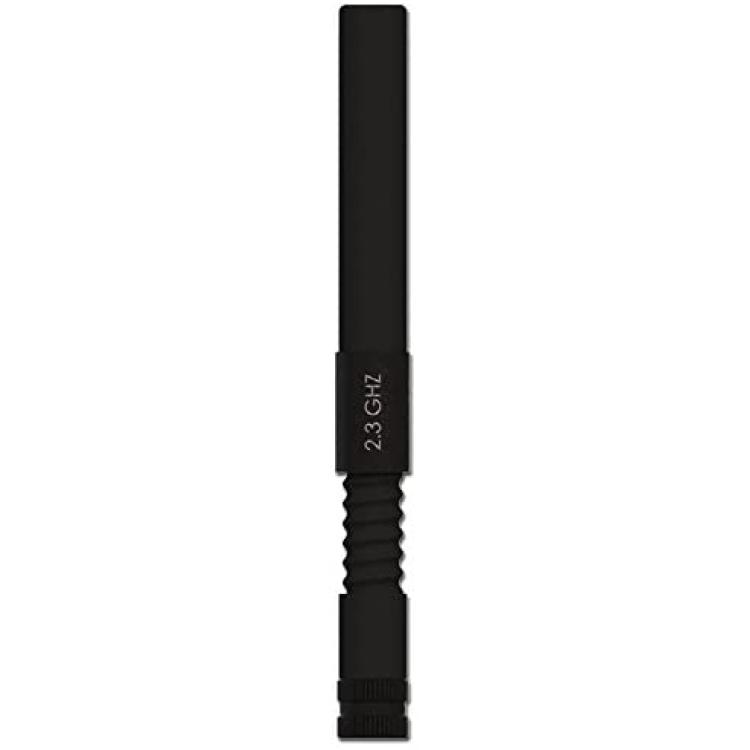

Southwest Antennas Ultra-Flex Omni Antenna is a rugged, small form factor dipole antenna that features an innovative environmentally-sealed spring base, giving the antenna flexibility to deflect/bend with impacts and return to its original vertical position. The integrated spring design minimizes stress placed on the antenna and radio connection, and can help prevent damage to both in the event of an impact.

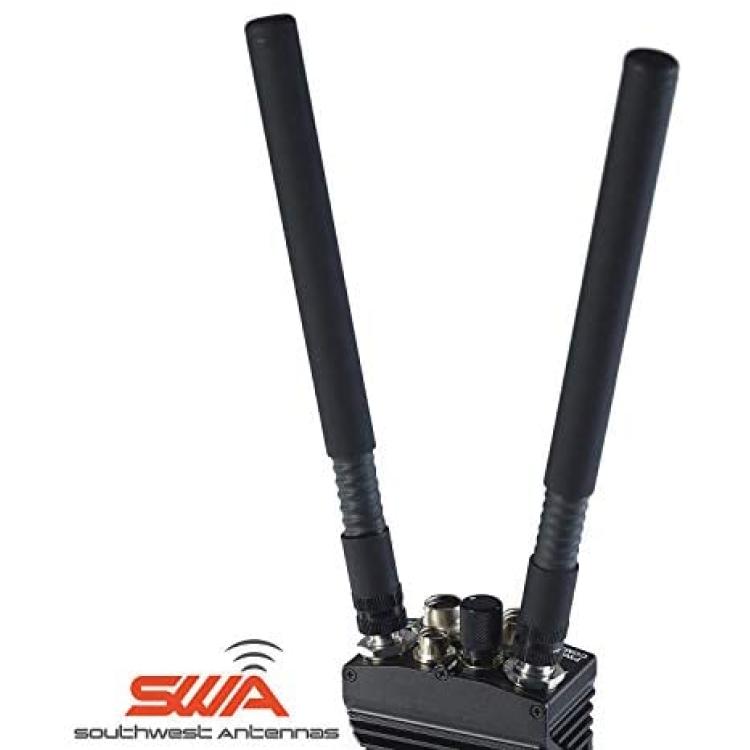

The spring is fully sealed to prevent rain, dust, and other debris from impacting antenna performance. The antenna is also fully submersible once it has been securely mated to a radio. A G10 fiberglass radome holds up to abuse in the field, and a low-glare black finish helps the antenna blend into surroundings and not draw attention. Equipped with a black chrome TNC(m) Non-Rotating RF connector, with an overall height of 6.08 inches.

Features:

Broad Band Coverage

2.1 - 2.5 GHz

50W Power Handling

2.15 dBi Omni Radiation Pattern

Rugged Construction

Low Glare Black Fiberglass Radome

Black Chrome TNC(m) Non-Rotating RF Connector

Ultra-Flexible Spring Base

Sealed Spring / Waterproof Design

Antenna Specifications:

Antenna Pattern: Omni Antenna

Frequency Band: S

Impedance: 50 Ohms

Minimum Frequency: 2,100 MHz

Maximum Frequency: 2,500 MHz

Frequency Bandwidth: 400 MHz

Maximum VSWR: 2:1 Ratio

Gain: 2.15 dBi

Polarization: Vertical

Horizontal (AZ) Beamwidth: 360 Degrees

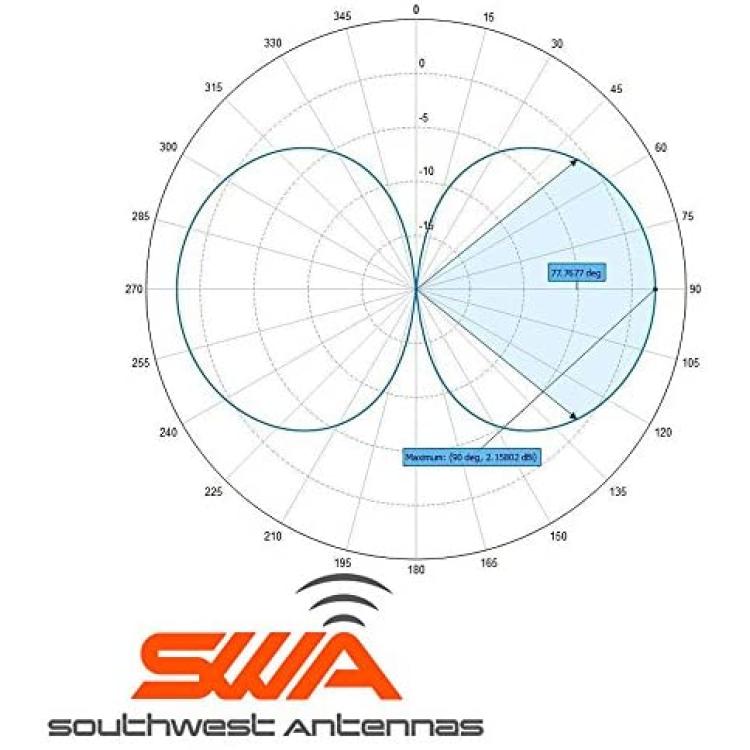

Vertical (EL) Beamwidth: 77 Degrees

No Ground Plane Required

Radome Material: G10 Fiberglass

Color: Black

Spring or Gooseneck: Spring

Maximum Wind Velocity: 100 mph (161 kph)

RF Connector Type: TNC(m) Non-Rotating

RF Connector Finish: Black Chrome

Operating Temperature Range: -40 to +85 C

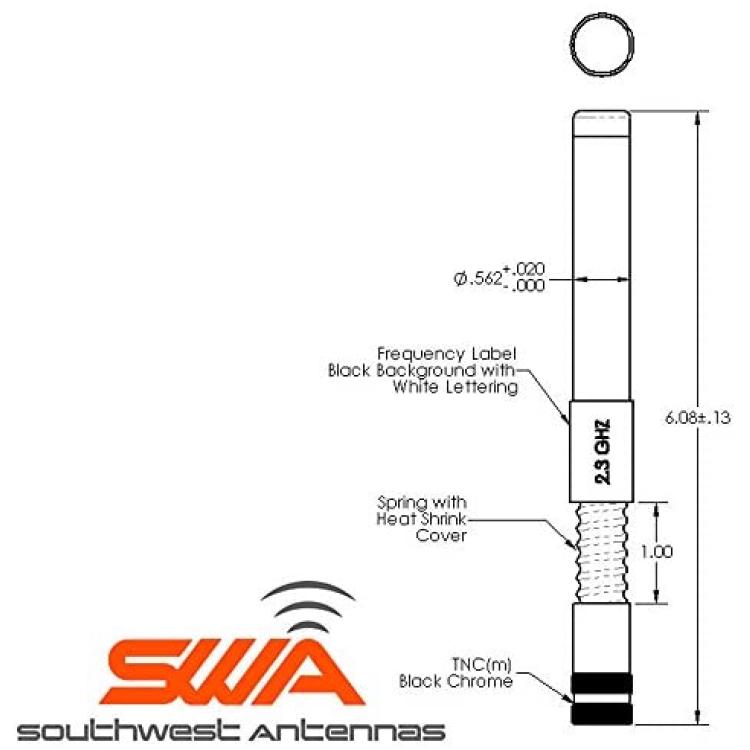

Product Height: 6.080 Inches (154.432 mm) ±.13"

Product Diameter: 0.562 Inches (14.275 mm) +.020" / -.000"

Product Weight: 2.00 oz (56.70 grams)
