OSOYOO LCD Touch Screen 3.5'' HDMI Display Monitor TFT for Raspberry Pi 3 2 Model B Audio Output with Stylus Pen
Availability: In Stock
About this product
*NO ADDITIONAL COST: You pay $0 for repairs – parts, labor and shipping included.
*COVERAGE: Plan starts on the date of purchase. Malfunctions covered after the manufacturers warranty. Power surges covered from day one.
*EXPERT TECH HELP: Real experts available 24/7 to help with set-up, connectivity issues, troubleshooting and much more.
*PRODUCT ELIGIBILITY: Plans cover products purchased in the last 30 days.
*EASY CLAIMS PROCESS: File a claim anytime online or by phone. Most claims approved within minutes. We will send you an Amazon e-gift card for the purchase price of your covered product. In some cases, we will replace or repair it.
Description
1. Customized image installation guide : osoyoo.com/?p=3297
2. Touch driver installation guide:
3) Default sleep time is about 5 minutes, follow link to adjust sleep time:
Specification:
Original resolution for the LCD is 480x320,
Support adjustable resolution: between 480*320 to 1920*1080 any resolution, (recommended 3: 2)
Refresh up to 60 frames per second

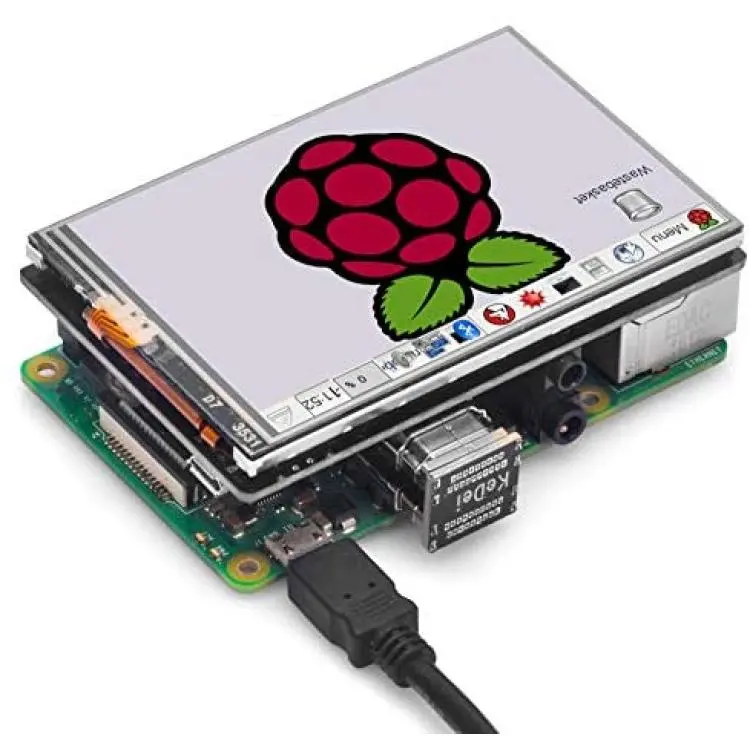

Convenience to install Raspberry Pi 2B 3B
It has the ability to rotate the image,( 90 degree,180 degrees,270 degrees)

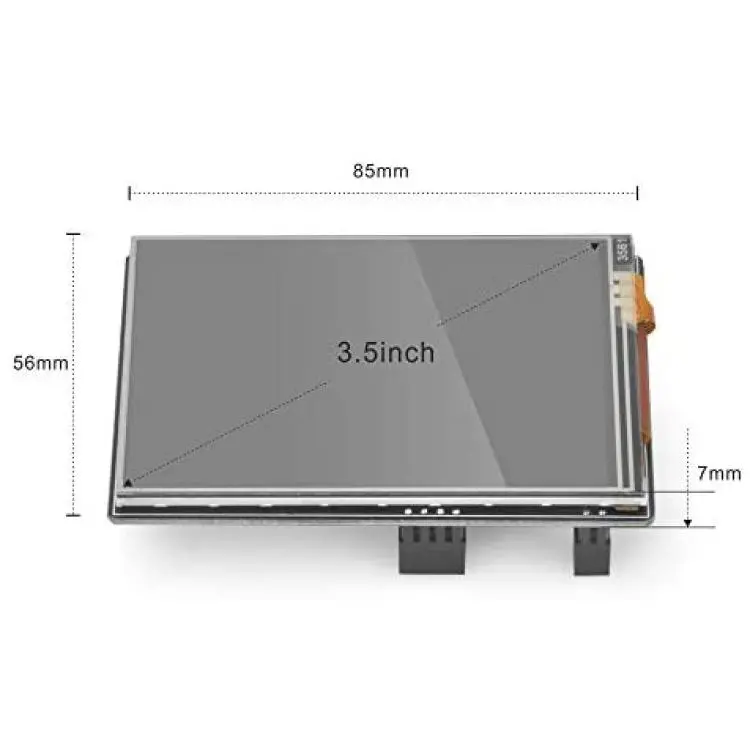

Size: 86x56x12mm ? It is 12mm from the top of the screen to the bottom of the port.?
Touch Function Support systems(Using touch function need to follow our installation guide):
1) support raspbian (this image can't be compatible with Raspberry Pi 4), kali, Ubuntu if you install customized image driver
2) support raspbian, Ubuntu to install touch driver separately.
Display function Support System: Raspbian, kali, ubuntu, Retrope, PiPlayer, windows10 etc(Just need install OS).

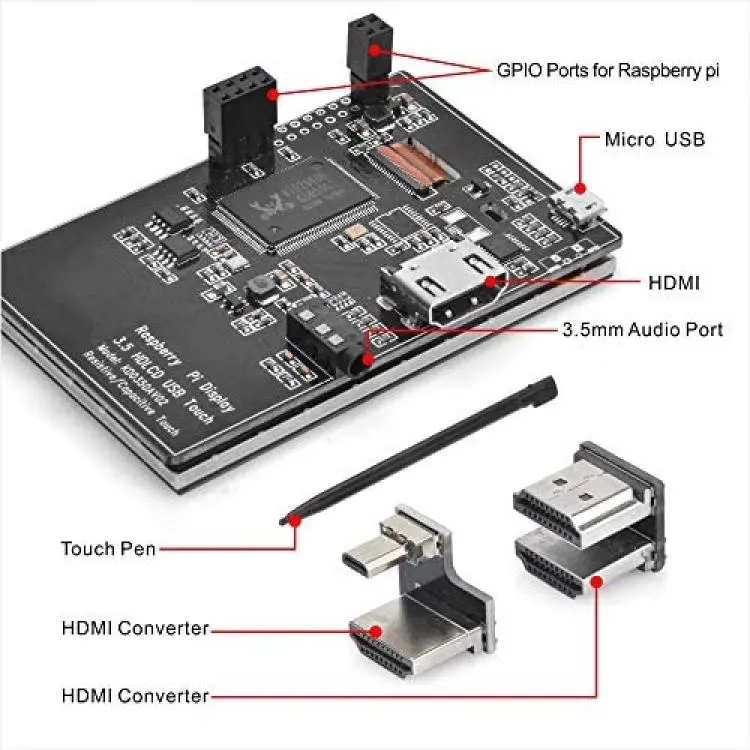

Packing list:
1x 3.5" touch screen
1x Stylus
1xConverter
1x User manual
Note:
1) Rapberry Pi board doesn't include in the package
2) Customized image is combined 3.5" LCD driver and an OS(Raspbian, Kali, Ubuntu) . The OS in our customized image may not be the fresh OS
3) Touch driver is just compatible with Raspbian and Ubuntu

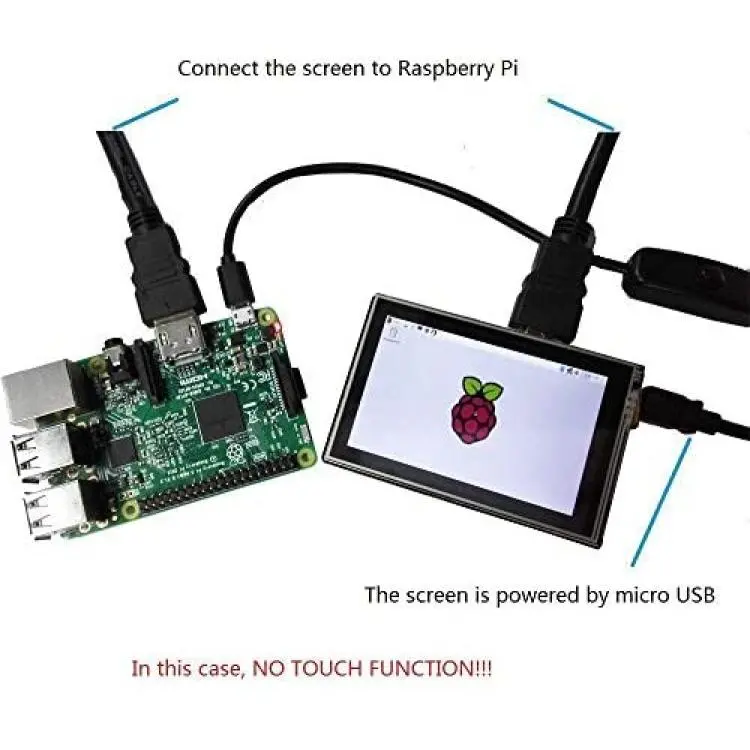

4) Not play and plug, but you prepare a SD card with OS (such as Raspbian, kali, ubuntu, Retrope, PiPlayer, windows10 etc) and insert in raspberry Pi, and the LCD can display, but no touch function.

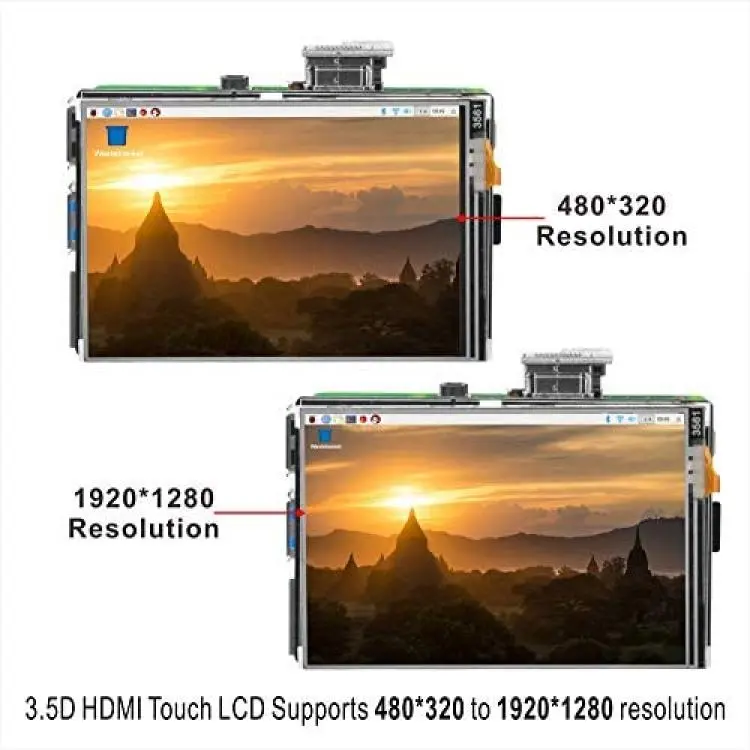

5) This LCD display resolution is 480*320. It also supports input resolutions up to 1920*1280 resolution. However, those resolutions higher than 480*320 will be compressed to 480*320 in the LCD display. When resolution is compressed, the screen display ratio might be changed accordingly.
