MCSADVENTURES Cooling Fan Override T harness Fits Polaris Rzr Ranger Sportsman 570 800 900 s 1000 xp Fan ON

Want the option to turn your cooling fan on manually? This harness allows you to accomplish this without cutting into your factory wiring.

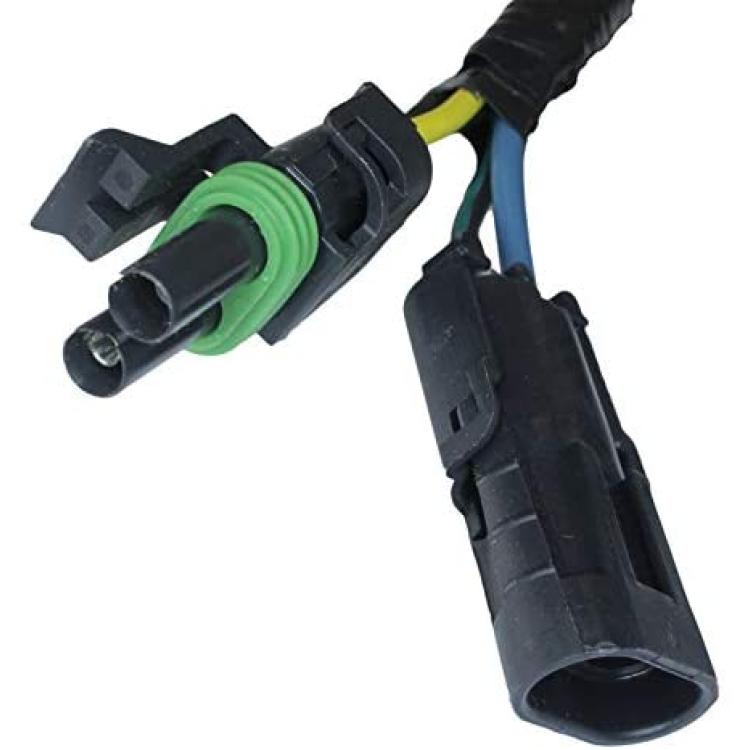

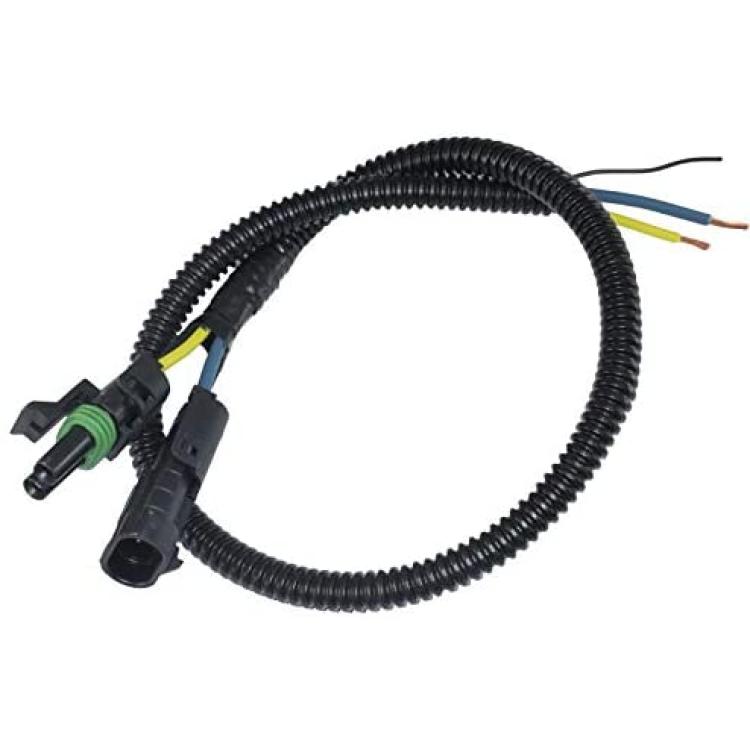

This T harness from MCSADVENTURES gives you the ability to rig up your own fan control switch.
Very handy for a DIY cost effective fan override solution.
Simply unplug your fan connector and insert this T harness to gain complete access to the fan.

Fits many Polaris Sportsman, RZR and Ranger models as well as some Can Am Outlander and Maverick machines.

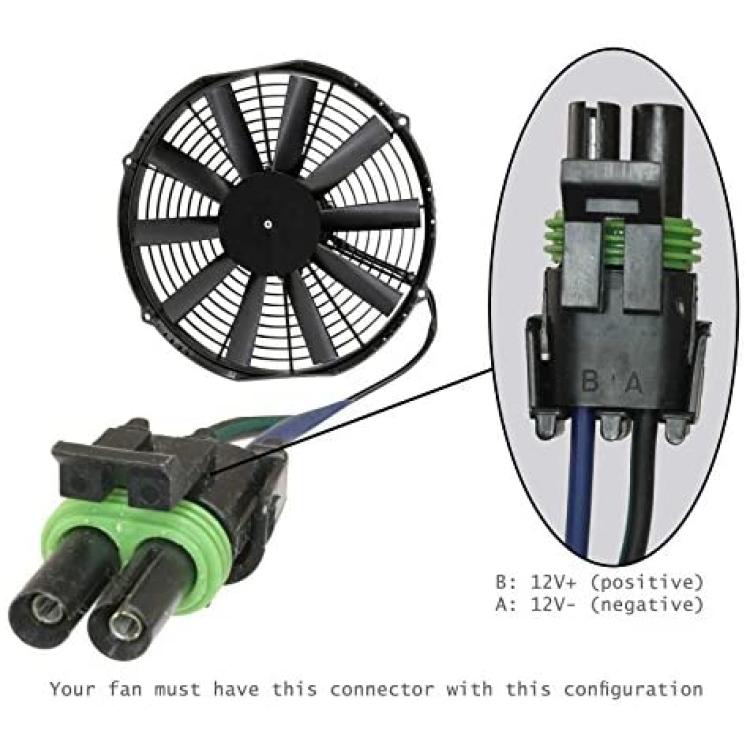

Check your fan plug to verify fitment.

Yellow = 12v+ coming from thermostat
Blue = 12v+ going to fan
Black = chassis ground (useful if you're wiring up an Led indicator or lighted switch)

To wire up a manual override function simply connect the blue and yellow wires together at the 12v+ OUTPUT of your switch or relay. This will allow the fan to continue to operate in stock/factory mode but with the added benefit of turning your fan on manually.
If an OFF mode is desired as well, then the yellow and blue wires may be separated thus allowing that function utilizing a double throw switch.
