12V Step Up 24V 3A Power Module Voltage Regulator DC DC Boost Converter 72W Waterproof Transformer Power Supply

Product material: die-cast aluminum alloy
Product color: silver
Input voltage: 12V
Output voltage, current: 24V 3A
Output power: 72W
Power efficiency: 96%
Ripple: <150MV
Whether synchronous rectification: yes

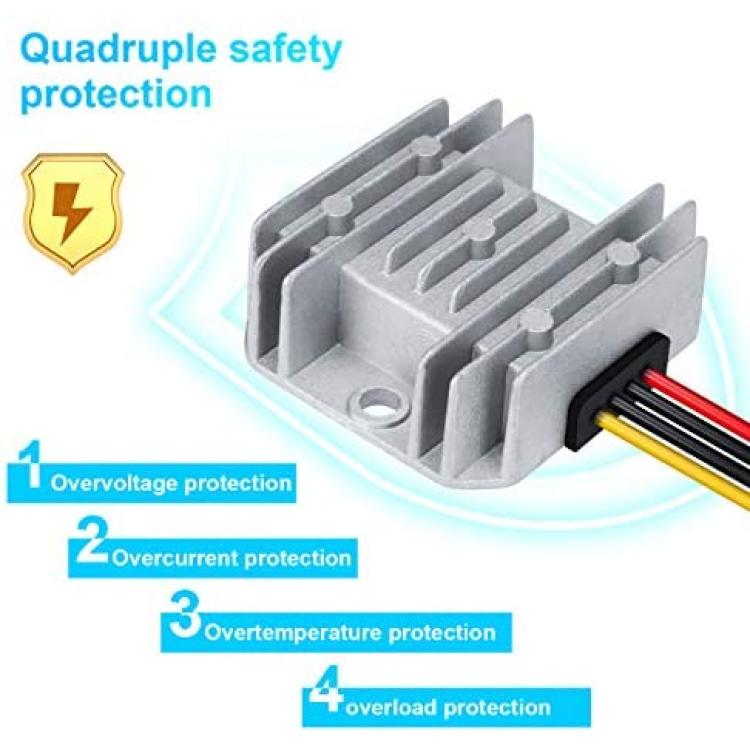

Power protection function: over-voltage, over-temperature, over-current
Start delay time: no delay
Installation wire length: 16.5cm

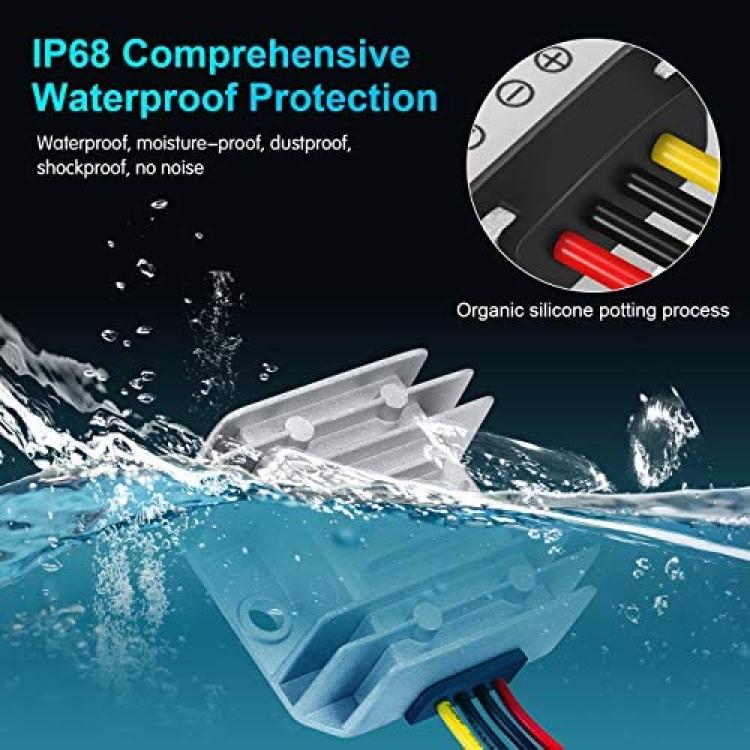

Waterproof rating: IP68
Working temperature: -40-80 degrees
Product usage scenarios: (what appliances are commonly used in)
lighting equipment, household equipment, industrial equipment,
monitoring equipment, vehicle equipment, industrial control equipment

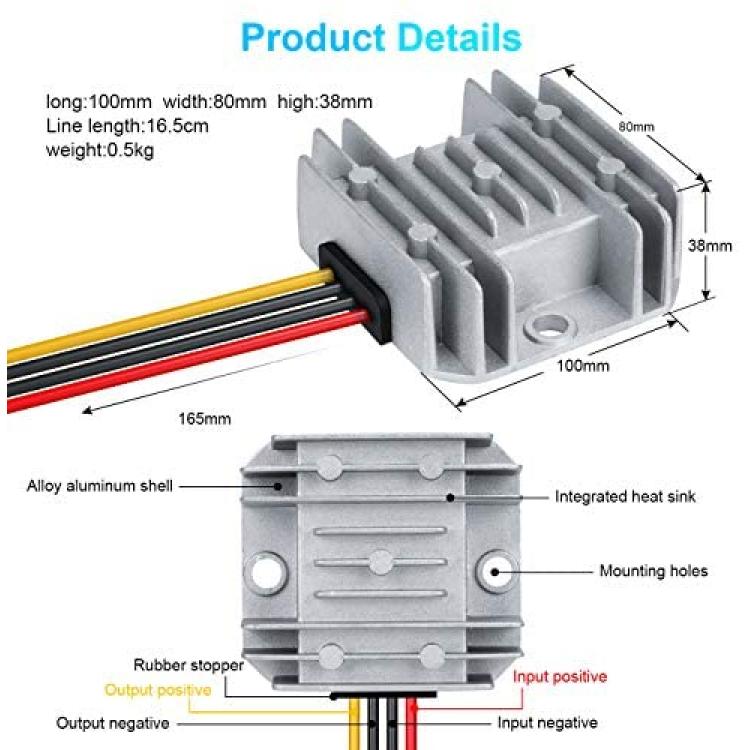

Product size: 66*58*23MM
Product weight 0.13kg

The package contains:
1 x DC 12V-24V 3A boost converter
A 12V DC battery is used as an input power source, and a 24V DC appliance is used as an output load.
Never charge the battery. Maintain good air convection.
Do not reverse the polarity.
Use cables large enough to avoid voltage drops
Please connect a series fuse. This way, if you make a mistake,
it will blow the fuse instead of destroying your buck
